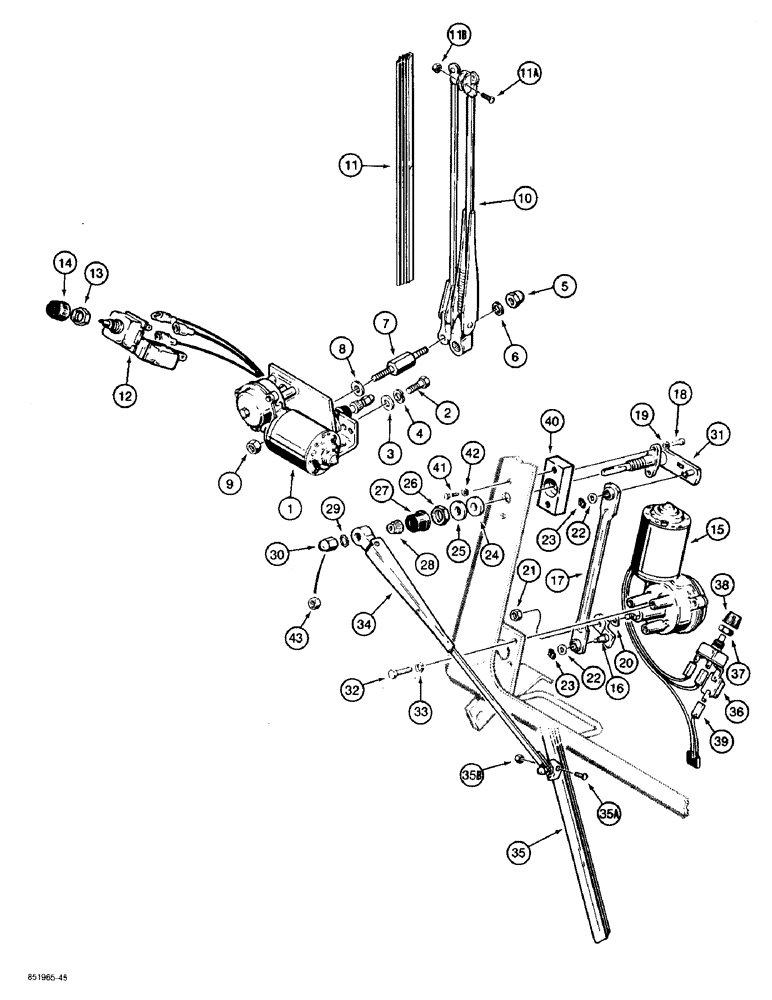

Запчасти Case 480F (9-148) - FRONT AND REAR WINDSHIELD WIPERS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

MOTOR - windshield wiper, front, parts list Figure 9-152

1шт.

2

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

- hex, 1/4 NF x 1 inch

2шт.

3

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

129-642

CROWN NUT,Crown, #10-24

- dome, No. 10 NC

1шт.

6

495-31022

WASHER,#10

1шт.

7

F43960

STUD

- windshield wiper arm

1шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

9

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

10

L35260

ARM

- front windshield wiper, 20 inch (508 mm) long

1шт.

11

F42706

WINDSHIELD WIPER

BLADE - front windshield wiper, 19 inch (483 mm) long, Includes: Ref. 11A and 11B

1шт.

11a

182-567

SCREW,Sltd Pan Hd, #5-40 x 1/2"

- machine, No. 5 NC x 1/2 inch, blade attaching

1шт.

11b

225-14105

NUT,#5-40

Blade attaching #5-40

1шт.

12

A42660

SWITCH

- windshield wiper, front

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- hex, switch

1шт.

14

111282C1

KNOB

- switch

1шт.

15

REF

INSTRUCTION

MOTOR - windshield wiper, rear, parts list Figure 9-152

1шт.

16

A36091

ARM

- drive

1шт.

17

D71412

LINK

- drive

1шт.

18

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

- machine, pan head slotted, No. 10 NF x 1/2 inch

2шт.

19

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

20

D71411

WASHER

- wave

1шт.

21

F44452

LOCK NUT

- hex, special lock

1шт.

22

A22431

WASHER

SPACER - pivot shaft

2шт.

23

D71414

CLIP

- spring

2шт.

D72848

SHAFT

ASSEMBLY - pivot, Includes: Ref. 24 - 31

1шт.

24

D71417

SPECIAL WASHER

WASHER - flat, fiber

1шт.

25

D71418

WASHER

- flat, steel

1шт.

26

D71419

NUT

- hex, jam

1шт.

27

D71420

CAP

- shaft

1шт.

28

1267556C1

BUTTON

DRIVER - knurled, replaces D71421

1шт.

29

193-95

LOCK WASHER,Ext Tooth, 5/16"

WASHER, LOCK, Ext Tooth, 5/16"

1шт.

30

D71422

NUT

- hex, cap, pivot shaft, may be replaced with Ref. 43 nut

1шт.

31

NSS

NOT SOLD SEPARAT

SHAFT - pivot

1шт.

32

414-410

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

- hex, 1/4 NF x 5/8 inch

3шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

34

A165060

WIPER ARM

ARM - rear windshield wiper, 18 inch (457 mm) long

1шт.

35

F43938

WIPER BLADE

BLADE - rear windshield wiper, 22 inch (559 mm) long, Includes: Ref. 35A and 35B

1шт.

35a

170-105

SCREW,Sl Pan Hd, #5 - 40 x 1/2"

- machine, pan head slotted, No. 5 NC x 1/2 inch, blade attaching

1шт.

35b

225-14105

NUT,#5-40

Blade attaching #5-40

1шт.

36

A42660

SWITCH

- rear windshield wiper

1шт.

37

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- hex, switch mounting

1шт.

38

111282C1

KNOB

- switch

1шт.

39

F93877

ELECTRICAL WIRE

WIRE - rear windshield wiper to wiper switch

1шт.

40

R37439

BLOCK

- mounting, rear windshield wiper

1шт.

41

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

42

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

43

129-118

NUT

- hex, 5/16 inch extra fine threads, if used

1шт.
