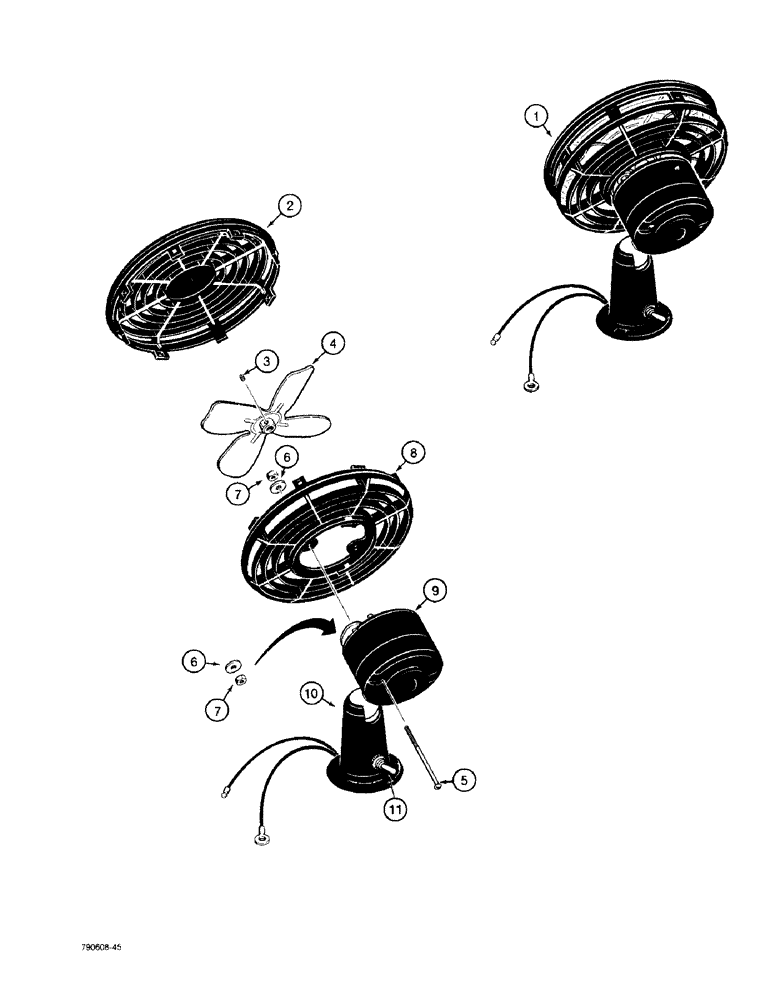

Запчасти Case 480F (9-146) - WINDOW DEFROSTER FAN, WITH THREE BOLT BASE (09) - CHASSIS/ATTACHMENTS

1

D87694

FAN

- defroster, three bolt base, Includes: Ref. 2 - 11

1шт.

2

N6272

GUARD

GRILLE - fan, front

1шт.

3

178-819

SET SCREW,Hex Soc, #10-32 x 3/16"

SCREW - set, hex socket headless, No. 10 NF x 3/16 inch, cup

1шт.

4

N6273

FAN

BLADE - fan, with spacer

1шт.

5

459-11048

SCREW,Slotted Pan Hd, #10-32 x 3"

- machine, pan head slotted, No. 10 NF x 3 inch

2шт.

6

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

4шт.

7

225-14210

NUT,#10-32

4шт.

8

N6274

GUARD

GRILLE - fan, rear

1шт.

9

NSS

NOT SOLD SEPARAT

MOTOR - fan

1шт.

10

NSS

NOT SOLD SEPARAT

BASE - fan

1шт.

11

N6275

SWITCH

- control

1шт.
