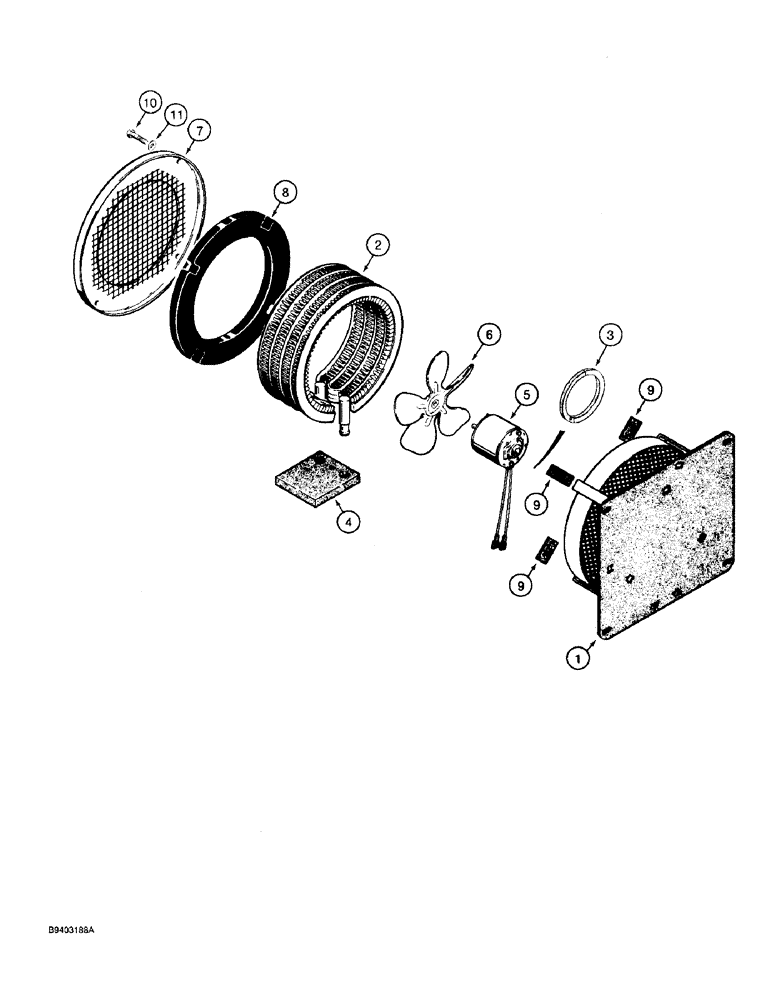

Запчасти Case 480F (9-142) - CAB HEATER (09) - CHASSIS/ATTACHMENTS

D120191

HEATER

ASSEMBLY - cab, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - heater

1шт.

2

N6518

HEATER ASSY.

CORE - heater

1шт.

3

D83118

ISOLATOR

INSULATOR - heater

1шт.

4

N6519

SEAL

GASKET - heater core

1шт.

5

F43811

MOTOR

- heater

1шт.

6

F43812

FAN

- heater, 8 inch (203 mm) diameter

1шт.

7

F43813

GRILLE

COVER - heater

1шт.

8

D83121

GASKET

- cover

1шт.

9

D83120

FELT

SEAL - felt

3шт.

10

187-996

SELF-TAP SCREW,1/4" x 1"

SCREW - self-tapping, hex head, 1/4-14 x 1 inch

4шт.

11

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.
