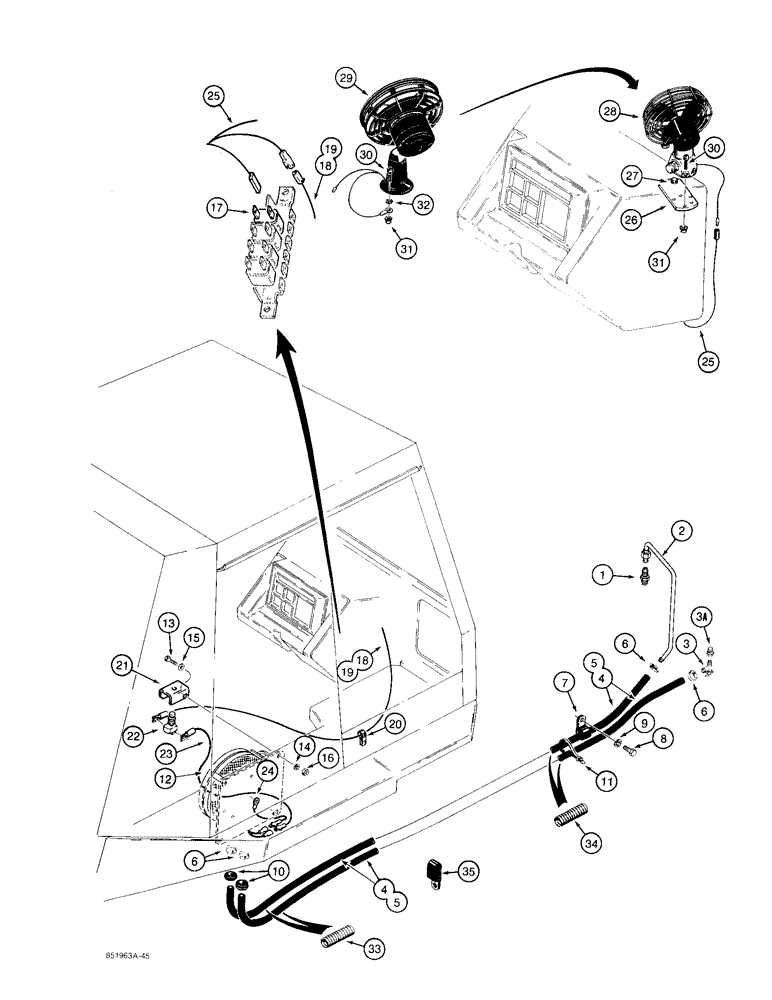

Запчасти Case 480F (9-138) - CAB HEATER LINES AND DEFROSTER (09) - CHASSIS/ATTACHMENTS

1

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT, at water pump, upper

1шт.

2

D131677

TUBE ASSY.

TUBE - engine, Serial Range: block-hose

1шт.

3

301803R1

SHUT-OFF VALVE

VALVE - shut-off, at water pump, lower, replaces A16764

1шт.

3a

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female, at water pump, lower

1шт.

4

1255818C2

HOSE - heater, models with heater on right-hand side of cab, 92 inch (2337 mm) long, cut from 97252CX bulk hose, see below, if used

2шт.

5

F42219

HEATER HOSE

HOSE - heater, models with heater on left-hand side of cab, 128 inch (3251 mm) long, cut from 97252CX bulk hose, see below, if used

2шт.

6

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

4шт.

7

S88820

CLAMP

- hose to engine block

1шт.

8

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12-1.75 x 25 mm

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

D73137

GROMMET

- heater hose at floor plate

2шт.

11

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

12

D120191

HEATER

- cab, parts list Figure 9-142

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3-4шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3-4шт.

15

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3-4шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3-4шт.

17

D78002

CIRCUIT-BREAKER

BREAKER - circuit, 15 amperes

1шт.

18

D75588

ELECTRICAL WIRE

WIRE - circuit breaker to heater switch, models with heater on right-hand side of cab, 80 inch (2032 mm) long, if used

1шт.

19

D75817

ELECTRICAL WIRE

WIRE - circuit breaker to heater switch, models with heater on left-hand side of cab, 95 inch (2413 mm) long, if used

1шт.

20

49853

TOOL

- circuit breaker wire to floor plate, use fender mounting hardware

3шт.

21

D86924

BRACKET

- heater switch mounting

1шт.

22

D75650

SWITCH

- heater

1шт.

23

D75652

ELECTRICAL WIRE

WIRE -, Serial Range: switch-heater

1шт.

24

D69902

ELECTRICAL WIRE

WIRE - heater ground

1шт.

25

D75454

ELECTRICAL WIRE

WIRE - circuit breaker to defroster fan

1шт.

26

D80897

LARGE PLATE

PLATE - fan mounting

1шт.

27

493-21033

LOCK WASHER,Int Tooth, 5/16"

WASHER - external tooth lock, 5/16 inch, use with instrument panel mounting bolt to mount fan plate

1шт.

28

L13468

FAN

- defroster, four bolt base, parts list Figure 9-144, if used

1шт.

29

D87694

FAN

- defroster, three bolt base, parts list Figure 9-146, if used

1шт.

30

169-137

SCREW - machine, Fillister head, No. 10 NC x 5/8 inch

3-4шт.

31

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10 NC, if used

3-4шт.

32

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16"), If used Ext-Int Tooth, #10

1шт.

33

D120221

GUARD

- hose, 28 inch (711 mm) long, over transaxle support channel

2шт.

34

REF

INSTRUCTION

GUARD - hose, 10 inch (254 mm) long, cut from D120221 guard (item 33), below rear engine mount

2шт.

35

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- double, holds heater hoses over transaxle support channel on models with heater on left-hand side of cab, if used

1шт.

97252CX

HOSE

- bulk roll, 50 ft (1524 cm) long

1шт.
