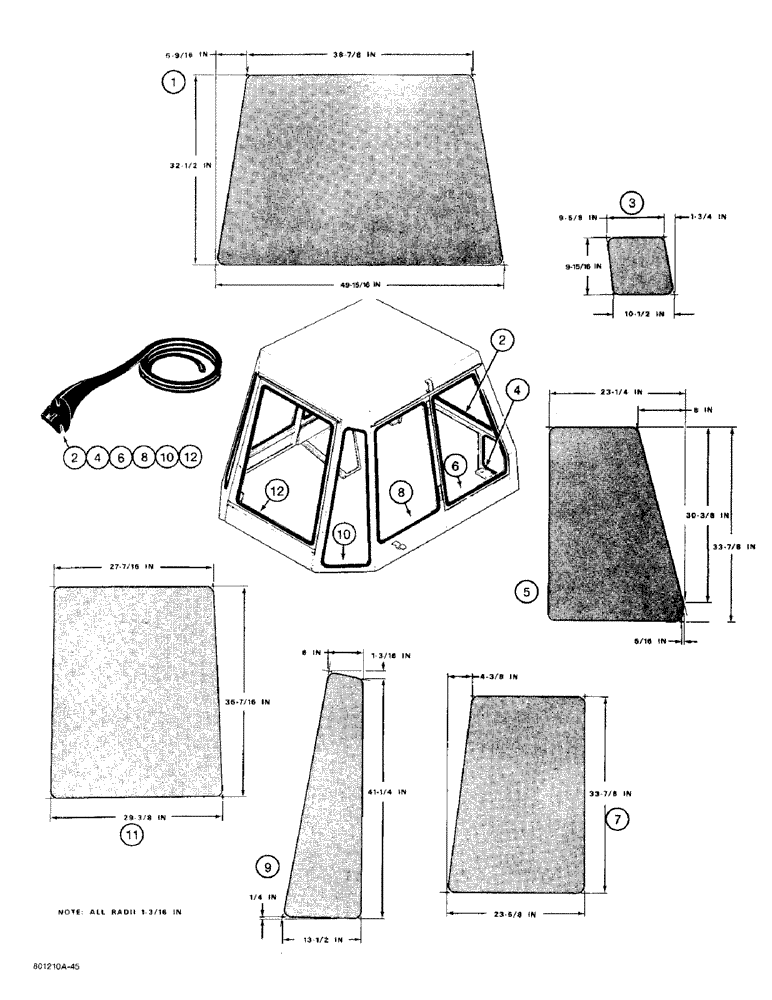

Запчасти Case 480F (9-134) - CAB GLASS AND MOLDING, U.S. DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOLDING - glass, 155-1/2 inch long, cut from A42677X bulk, see below

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - lower front

2шт.

4

REF

INSTRUCTION

MOLDING - glass, 41 inch long, cut from A42677X bulk, see below

2шт.

5

NSS

NOT SOLD SEPARAT

GLASS - side, front

2шт.

6

REF

INSTRUCTION

MOLDING - glass, 107 inch long, cut from A42677X bulk, see below

2шт.

7

NSS

NOT SOLD SEPARAT

GLASS - side, rear

2шт.

8

REF

INSTRUCTION

MOLDING - glass, 111 inch long, cut from A42677X bulk, see below

2шт.

9

NSS

NOT SOLD SEPARAT

GLASS - rear quarter

2шт.

10

REF

INSTRUCTION

MOLDING - glass, 104 inch long, cut from A42677X bulk, see below

2шт.

11

NSS

NOT SOLD SEPARAT

GLASS - rear window

1шт.

12

REF

INSTRUCTION

MOLDING - glass, 129-3/8 inch long, cut from F43628 bulk, see below

1шт.

A42677X

GASKET

MOLDING - bulk roll, 50 ft long

1шт.

F43628

MOLDING

- bulk roll, 100 ft long

1шт.
