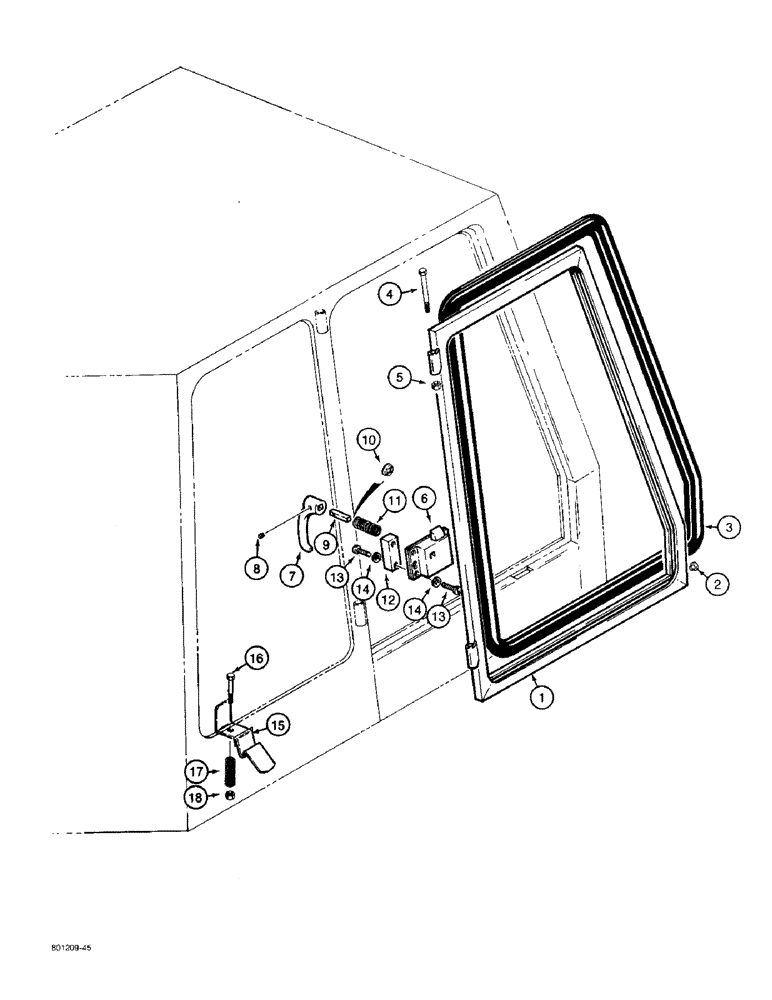

Запчасти Case 480F (9-132) - CAB RIGHT-HAND WINDOW (09) - CHASSIS/ATTACHMENTS

1

F96694

WINDOW

FRAME - front window, right-hand

1шт.

2

353-62

PLUG,Cap, .302" OD

- plastic, black, window frame sides and top

8шт.

3

REF

INSTRUCTION

SEAL - right-hand window, 113 inch (2870 mm) long, cut from F43086X bulk, see below

1шт.

4

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

2шт.

5

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8 inch NC

2шт.

6

F93892

LOCK

LATCH - window, left-hand

1шт.

7

F43966

HANDLE

- window, Includes: Ref. 8

1шт.

8

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

SCREW - set, hex socket headless, No. 10 NF x 1/4 inch, cone

1шт.

9

F93880

SHAFT

- window latch, Includes: Ref. 10

1шт.

10

131-638

PUSH-ON NUT

- push-on type, 5/16 inch

1шт.

11

F43968

SPRING

- window latch

1шт.

12

F43980

BLOCK

- tapped, window latch

1шт.

13

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

- machine, pan head slotted, 1/4 NC x 3/8 inch

8шт.

14

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

15

F44590

SUPPORT

LATCH - window retainer, rear swing back, right-hand and left-hand windows

2шт.

17

1344321C1

SPRING

- window latch, replaces D36669

2шт.

18

230-4214

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

F43086X

SEAL, GLASS

SEAL - bulk roll, 25ft long

1шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
