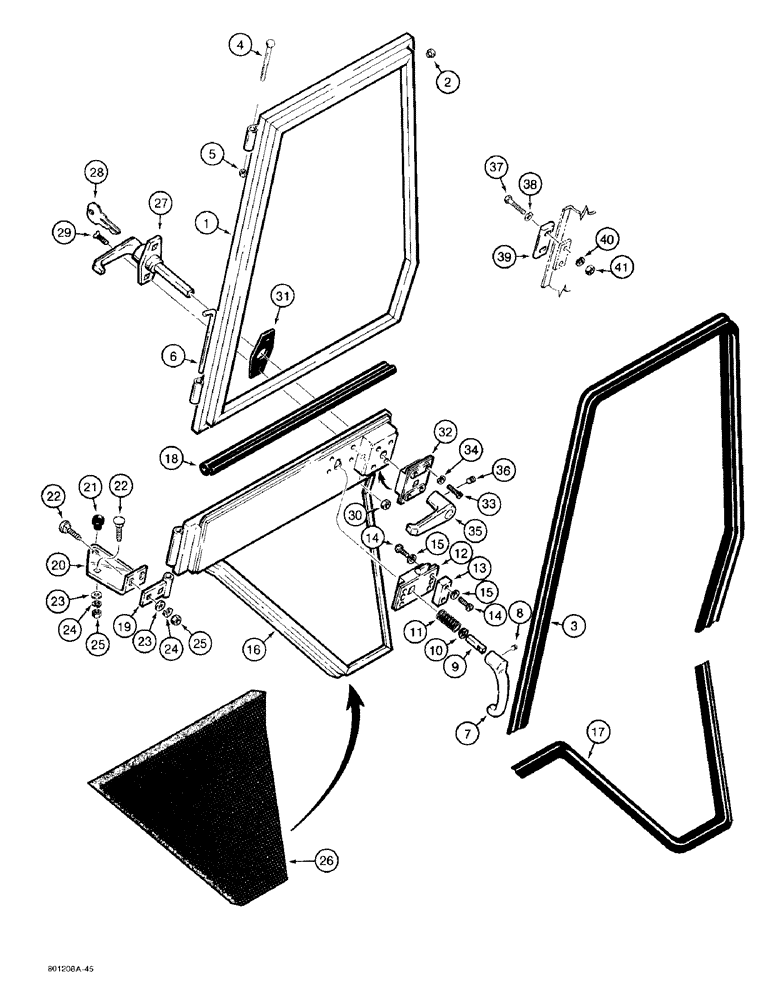

Запчасти Case 480F (9-128) - CAB DOOR AND LEFT-HAND WINDOW (09) - CHASSIS/ATTACHMENTS

1

F96695

WINDOW

FRAME - front window, left-hand

1шт.

2

353-62

PLUG,Cap, .302" OD

- plastic, black, window frame sides and top

8шт.

3

REF

INSTRUCTION

SEAL - left-hand window, 90 inch (2286 mm) long, cut from F43086X bulk, see below

1шт.

4

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

1шт.

5

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8 inch NC

1шт.

6

F42100

PIN

- window and door

1шт.

7

F43966

HANDLE

- window, Includes: Ref. 8

1шт.

8

178-1102

SET SCREW,Hex Soc, #10-32 x 1/4"

SCREW - set, hex socket headless, No. 10 NF x 1/4 inch, cone

1шт.

9

F93880

SHAFT

- window latch, Includes: Ref. 10

1шт.

10

131-638

PUSH-ON NUT

- push-on type, 5/16 inch

1шт.

11

F43968

SPRING

- window latch

1шт.

12

F93884

LOCK

LATCH - window, right-hand

1шт.

13

F43964

BLOCK

- tapped, window latch

2шт.

14

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

- machine, pan head slotted, 1/4 NC x 3/8 inch

8шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

16

F93883

DOOR

- cab, does not include latches

1шт.

17

REF

INSTRUCTION

SEAL - lower door, 61-1/2 inch (1562 mm) long, cut from F44619X bulk, see below

1шт.

18

REF

INSTRUCTION

SEAL - top of door, 23-3/4 inch (602 mm) long, cut from F43086X bulk, see below

1шт.

19

F44591

HINGE

- door

1шт.

20

R37339

BRACKET

- door stop

1шт.

21

L60224

BUMPER

- rubber, door stop

1шт.

22

411-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT - carriage, 3/8 NC x 1 inch, grade 2

3шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

24

492-11038

LOCK WASHER,3/8"

3шт.

25

425-106

NUT,3/8"-16, Cl 5

3шт.

26

F45256

FOAM

PAD - foam, door panel

1шт.

27

F93842

HANDLE

- door, outside, Includes: Ref. 28 keys

1шт.

28

A42653

SET OF 2 KEYS

KEY - handle

2шт.

29

442-11010

SCREW,Cross Oval Hd, #10-24 x 5/8"

- machine, oval head Phillips, No. 10 NC x 5/8 inch

2шт.

30

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

31

F63860

GASKET

- door handle

1шт.

32

F98123

LATCH

- door

1шт.

33

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

- machine, pan head slotted, No. 10 NF x 1/2 inch

4шт.

34

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

35

F63925

HANDLE

- door, inside, Includes: Ref. 36

1шт.

36

176-49

SCREW - set, slotted, 5/16 NC x 5/16 inch, cone point

1шт.

Ref #36 - 176-49 set screw - Order part nbr 81-3315 set screw. 11/27/95

1шт.

37

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

38

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

39

F63783

CATCH

STRIKER - door latch

1шт.

40

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

41

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

F43086X

SEAL, GLASS

SEAL - bulk roll, 100 ft (3048 cm) long

1шт.

F44619X

SEAL

- bulk roll, 25ft long

1шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
