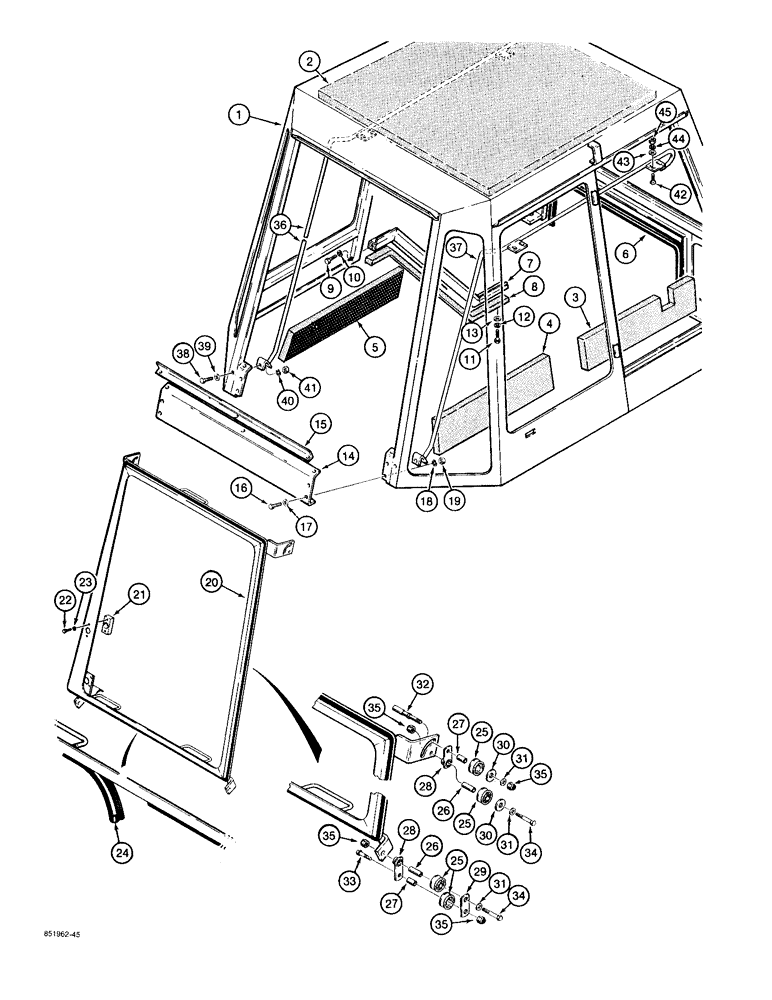

Запчасти Case 480F (9-124) - CAB FRAME AND REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

F45257

ROOF

PAD - headliner, cab top

1шт.

3

F45255

FOAM

PAD - foam, right-hand, front panel

1шт.

4

F45253

FOAM

PAD - foam, right-hand rear panel

1шт.

5

F45254

FOAM

PAD - foam, left-hand rear panel

1шт.

6

REF

INSTRUCTION

SEAL- cowl, 55 inch (1397 mm) long, cut from F43086X bulk, see below

1шт.

7

F93886

FRAME

- door

1шт.

8

REF

INSTRUCTION

SEAL - door frame to fender, 34-1/2 inch (876 mm) long, cut from F44595X bulk, see below

1шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

14

F43958

PANEL

- lower, rear

1шт.

15

F43959

ANGLE

- seal, lower panel

1шт.

16

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

7шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

7шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

7шт.

20

F96874

FUNNEL

FRAME - rear window

1шт.

21

R37439

BLOCK

- wiper mounting

1шт.

22

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

24

REF

INSTRUCTION

SEAL - rear window, 144 inch (3658 mm) long, cut from F43086X bulk, see below

1шт.

25

F43589

ROLLER

- rear window

8шт.

26

F45286

BUSHING

SPACER - roller, long

4шт.

27

F45287

BUSHING

SPACER - roller, short

4шт.

28

F96872

ARM

- roller

4шт.

29

F45288

PLATE

LINK - rear window, lower

2шт.

30

F45290

WASHER

- special

4шт.

31

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

32

F45289

PIN,9.53mm OD x 91.44mm L

- roller lock, 3/8 NC x 3-9/16 inch

2шт.

33

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

34

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

35

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - hex, self-locking, 3/8 inch NC

8шт.

36

F93879

TRACK CHAIN

TRACK - left-hand, rear window

1шт.

37

F93878

TRACK CHAIN

TRACK - right-hand, rear window

1шт.

38

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

40

492-11038

LOCK WASHER,3/8"

2шт.

41

425-106

NUT,3/8"-16, Cl 5

2шт.

42

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

8шт.

43

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

8шт.

44

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

45

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

F43086X

SEAL, GLASS

SEAL - bulk roll, 25 ft

1шт.

F44595X

SEAL

- bulk roll, self-adhesive, 50 ft (1524 cm)

1шт.

345-44

ADHESIVE

- for attaching foam pads to metal surfaces, spray can, 19-1/2 fluid ounces

1шт.
