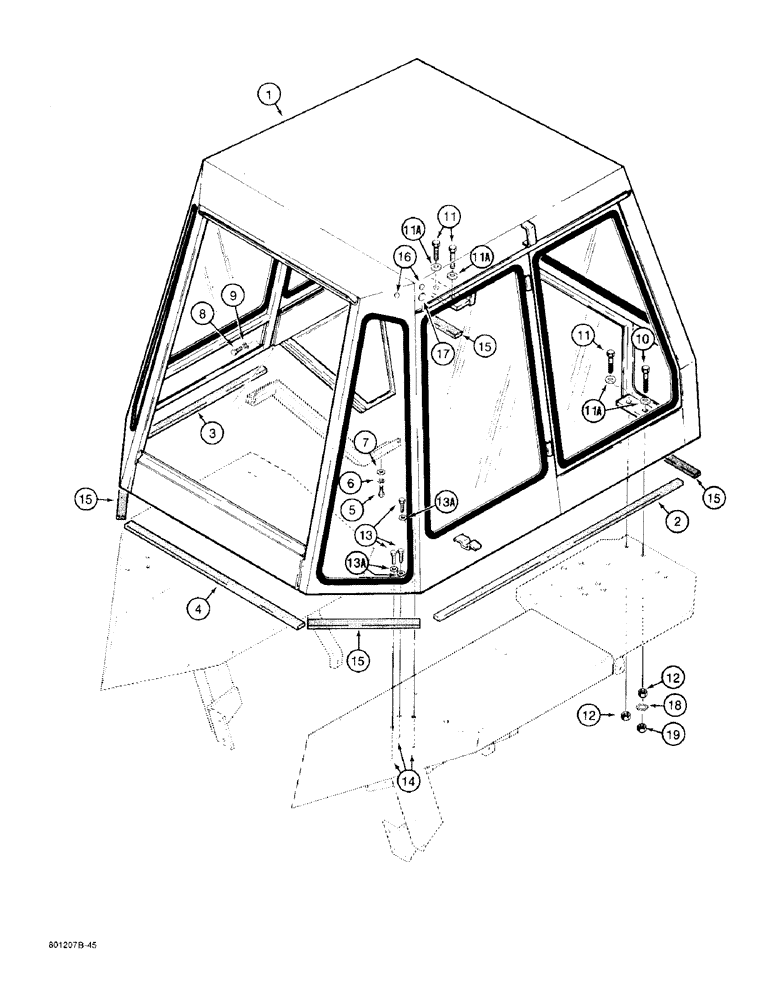

Запчасти Case 480F (9-122) - ROPS CAB AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CAB - ROPS, order from Machinery Price List, parts list Figures 9-124 through 9-152

1шт.

The Pt. No. for the complete cab is F96861. 6/5/97

1шт.

2

REF

INSTRUCTION

SEAL - fender, right-hand, 52-5/8 inch (1336 mm) long, cut from F44595X bulk roll, see below

1шт.

3

REF

INSTRUCTION

SEAL - fender, left-hand, 27-11/16 inch (704 mm) long, cut from F44595X bulk roll, see below

1шт.

4

F43996

RUBBER SEAL,25.4mm W x 932.179mm L x 19.05mm Thk

SEAL - rear panel

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8

1шт.

11

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

3шт.

11a

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - hardened, 5/8 inch

4шт.

12

429-1010

NUT,5/8"-11, G8

4шт.

13

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

6шт.

13a

496-31053

WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

6шт.

14

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

6шт.

15

REF

INSTRUCTION

SEAL - front and rear corners, cut from A42676X bulk roll, see below

1шт.

16

353-403

PLUG,Dome, .437" hole, Nylon

Upper, If used Dome, .437" hole, Nylon

4шт.

17

353-405

PLUG,Dome, .562" hole, Nylon

- button, 9/16 inch, lower, if used

2шт.

18

493-41065

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external tooth lock, 5/8 inch

1шт.

19

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

1шт.

A42676X

SEAL

- strip, bulk roll, self-adhesive, 25 ft (762 cm)

1шт.

F44595X

SEAL

- strip, bulk roll, self-adhesive, 50 ft (1524 cm)

1шт.
