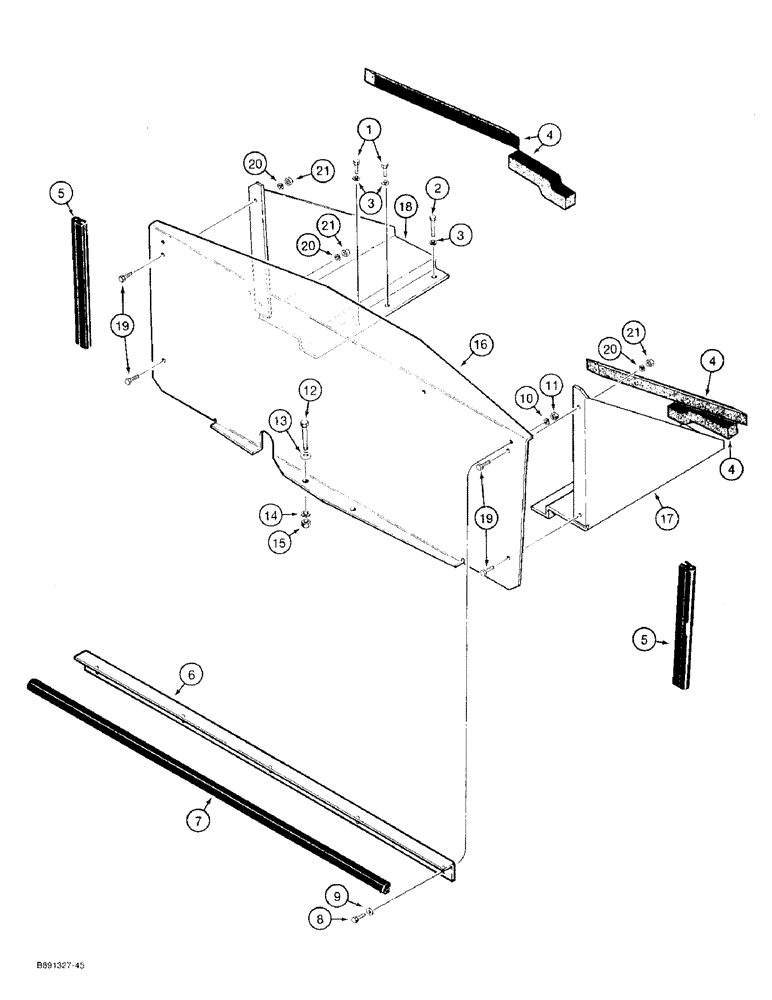

Запчасти Case 480F (9-118) - REAR CLOSURE PANELS, MODELS WITH BACKHOE (09) - CHASSIS/ATTACHMENTS

1

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

2

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

3шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

4

REF

INSTRUCTION

SEAL - rear closure panel, 22 inch (559 mm) long, cut from L35741 bulk, see below

2шт.

5

REF

INSTRUCTION

SEAL - rubber, rear closure panel, 10-13/16 inch (275 mm) long, cut from R53628 bulk, see below

2шт.

6

D99720

ANGLE

BRACKET - top, rear closure panel

1шт.

7

REF

INSTRUCTION

TRIM - edge, 38 inch (965 mm) long, cut from F42827 bulk, see below

1шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

5шт.

9

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

5шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

5шт.

12

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

13

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

14

492-11038

LOCK WASHER,3/8"

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

D143501

PANEL

KIT - closure panel, rear, three piece, Includes: Ref. 16 - 21

1шт.

16

D143505

PANEL ASSY.

PANEL - rear closure, includes D143500 and 321-4481 decals, plus D87870 reflector. See Figures 9-162 and 9-164

1шт.

17

D99723

PLATE

- right-hand mounting, closure panel

1шт.

18

D99724

PLATE

- left-hand mounting, closure panel

1шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116 inch (2946 mm) long

1шт.

L35741

FOAM

SEAL - foam, bulk, 50 ft (1524 cm) long

1шт.

R53628

SEAL

- rubber, bulk, 15 ft (457 cm) long, replaces F64773

1шт.
