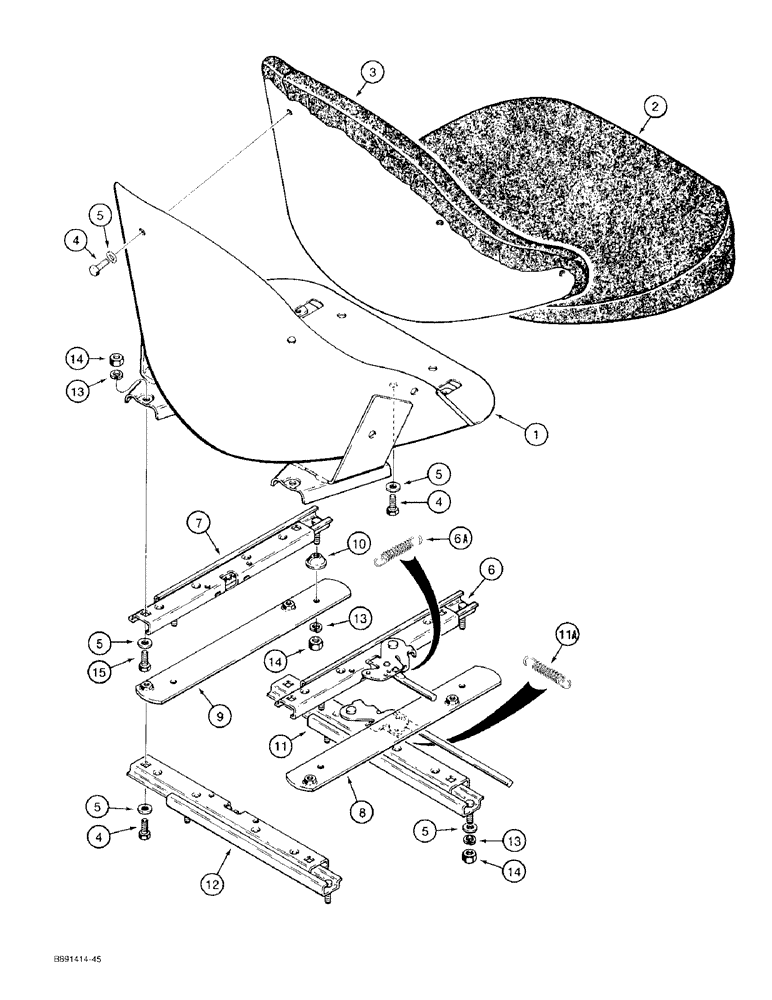

Запчасти Case 480F (9-114) - D124540 DELUXE SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

D124540

SEAT ASSY.

SEAT ASSEMBLY - deluxe, bucket type, brown, may be used on all models, Includes: Ref. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

2

N8761

CUSHION

- seat, brown

1шт.

3

N8762

CUSHION

BACKREST - seat, brown

1шт.

4

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

7шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

19шт.

6

N13606

ADJUSTER

- rail, right-hand, Includes: Ref. 6A

1шт.

6a

L35503

SPRING

- return, slide

1шт.

7

N13607

ADJUSTER

- rail, left-hand

1шт.

8

D59686

BRACKET

- right-hand

1шт.

9

D59687

BRACKET

- left-hand

1шт.

10

D59689

SPACER

- adjuster

4шт.

11

N8764

ADJUSTER

- rail, front, Includes: Ref. 11A

1шт.

11a

L35503

SPRING

- return, slide

1шт.

12

L35272

ADJUSTER

- rail, rear

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

10шт.

15

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

8шт.
