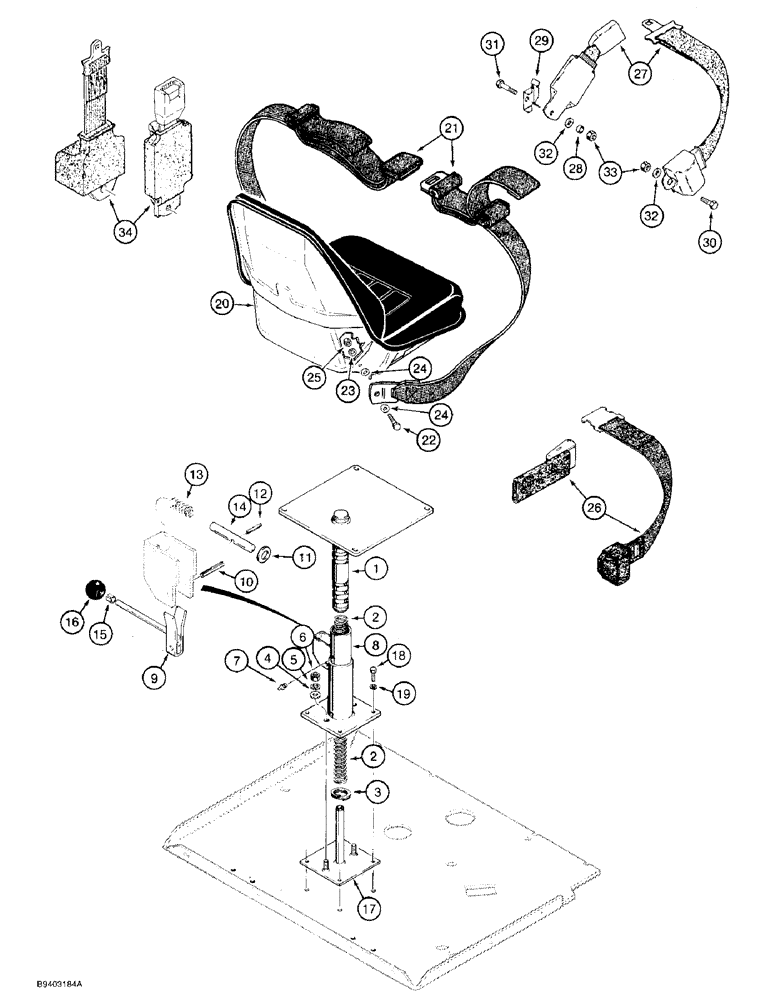

Запчасти Case 480F (9-108) - SEAT MOUNTING PARTS AND SEAT BELTS (09) - CHASSIS/ATTACHMENTS

1

D87657

POST

- seat mounting

1шт.

2

D84284

SPRING

- seat

1шт.

3

102-21187

SNAP RING,#187, 2.008", Int, Spiral

RING - snap, spring retaining

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

8

D64776

POST

- seat base

1шт.

9

D38258

LOCK

LEVER - seat height adjustment lock

1шт.

10

38-11622

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

1шт.

11

D49941

SPRING WASHER

- flat

1шт.

12

38-11214

LOCK PIN,3/16" x 7/8", Slotted

Pin, 3/16" x 7/8", Slotted

1шт.

13

D49774

SPRING

- lock

1шт.

14

D84285

PIN,12.7mm OD x 84.07mm L

- post latch

1шт.

15

D38673

RING

- knob retaining

1шт.

16

D38643

KNOB

- height adjustment lever

1шт.

17

D62012

POST

BASE - seat post

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

REF

INSTRUCTION

SEAT ASSEMBLY - operators, for correct assembly and components, see Figures 9-112 and 9-114

1шт.

21

D85816

SAFETY BELT

BELT - seat, 3 inch (76 mm) wide, with anti-creep slide, no longer available, for service order Ref. 34, R58418 belt plus hardware Ref. 28 through 33

1шт.

22

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

Used with either item 21 or 26 seat belt Hex, 7/16"-20 x 1", G5, Full Thd

2шт.

23

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Used with either item 21 or 26 seat belt 7/16"

2шт.

24

495-11047

WASHER,7/16", SAE

(5/32" ID x 59/64" OD x 5/64" Thk), used with either item 21 or 26 seat belt 7/16", SAE

4шт.

25

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF, used with either item 21 or 26 seat belt

2шт.

26

D135623

SAFETY BELT

BELT - seat, 2 inch (51 mm) wide, with retractor, no longer available, for service order items 27, D150377 seat belt plus hardware items 28 through 33

1шт.

27

D150377

SAFETY BELT ,2.00" W

With retractor, If used 2.00" W

1шт.

28

D150391

SPACER

- belt, used with either item 27 or 34 belt

1шт.

29

D150392

BRACKET

- left-hand belt, used with either item 27 or 34 belt

1шт.

30

414-720

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5

- hex, 7/16 NF x 1-1/4 inch, used with either item 27 or 34 belt

1шт.

31

414-728

BOLT,Hex, 7/16" - 20 x 1-3/4", Gr 5

- hex, 7/16 NF x 1-3/4 inch, used with either item 27 or 34 belt

1шт.

32

496-81010

WASHER

- flat, 15/32 x 1 x 7/64 inch, hardened, used with either item 27 or 34 belt

2шт.

33

131-1247

LOCK NUT,7/16"-20, GC

NUT - hex, self-locking, 7/16 inch NF, used with either item 27 or 34 belt

2шт.

34

R58418

SAFETY BELT ,3.00" W

With retractor, If used 3.00" W

1шт.
