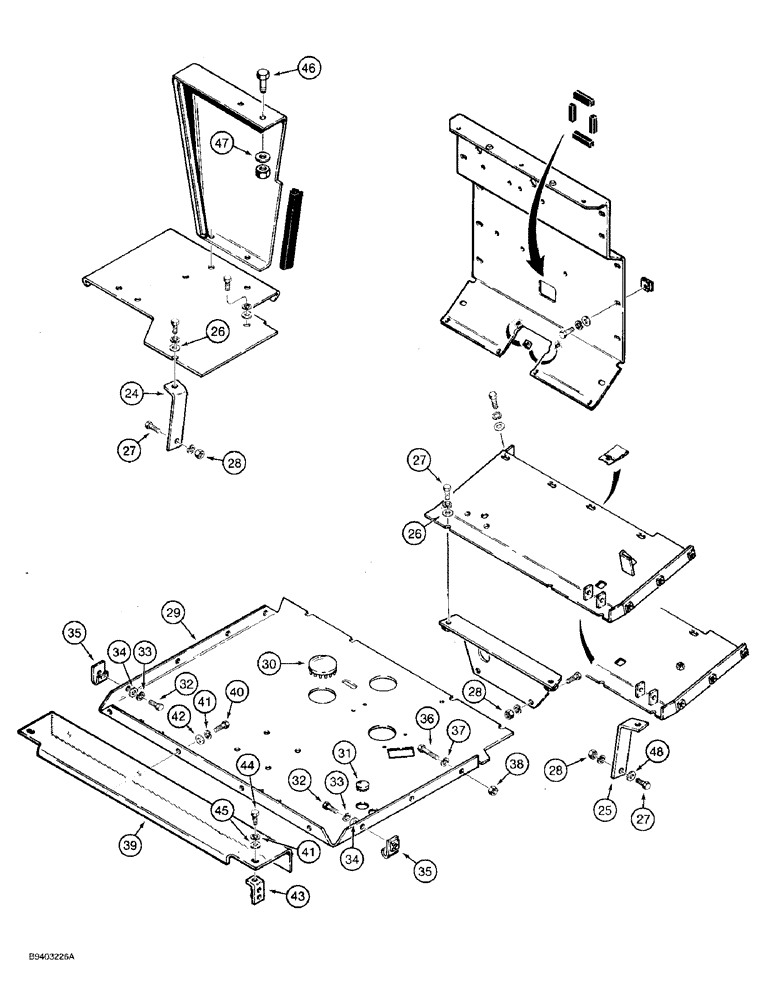

Запчасти Case 480F (9-102) - FLOOR PLATES AND FIREWALL, 480F MODELS ONLY (CONTD) (09) - CHASSIS/ATTACHMENTS

24

D70276

BRACKET

- left-hand

1шт.

25

D70277

BRACKET

- right-hand

1шт.

26

495-81002

WASHER,3/8"

- flat, 3/8 inch

4шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

28

425-106

NUT,3/8"-16, Cl 5

4шт.

29

D138101

PLATE

- floor, rear

1шт.

30

205-72

HOLE PLUG BUTTON,3"

PLUG - button, 3 inch (76 mm) diameter

2шт.

31

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2" (38 mm) diameter

3шт.

32

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

33

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

34

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

35

131-636

SPRING NUT,J, Ret, 5/16"-18

- J-type, 5/16 inch NC

6шт.

36

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

37

492-11038

LOCK WASHER,3/8"

1шт.

38

425-106

NUT,3/8"-16, Cl 5

1шт.

39

D70066

PANEL

PLATE - spacer, rear floor plate to backhoe frame, if used

1шт.

40

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

41

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

42

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

43

D77105

BRACKET

- spacer plate

2шт.

44

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

45

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

2шт.

46

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

Used on models without cab or canopy Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

47

495-11066

WASHER,5/8", SAE

- flat, 5/8", plated, used on models without cab or canopy

2шт.

48

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.
