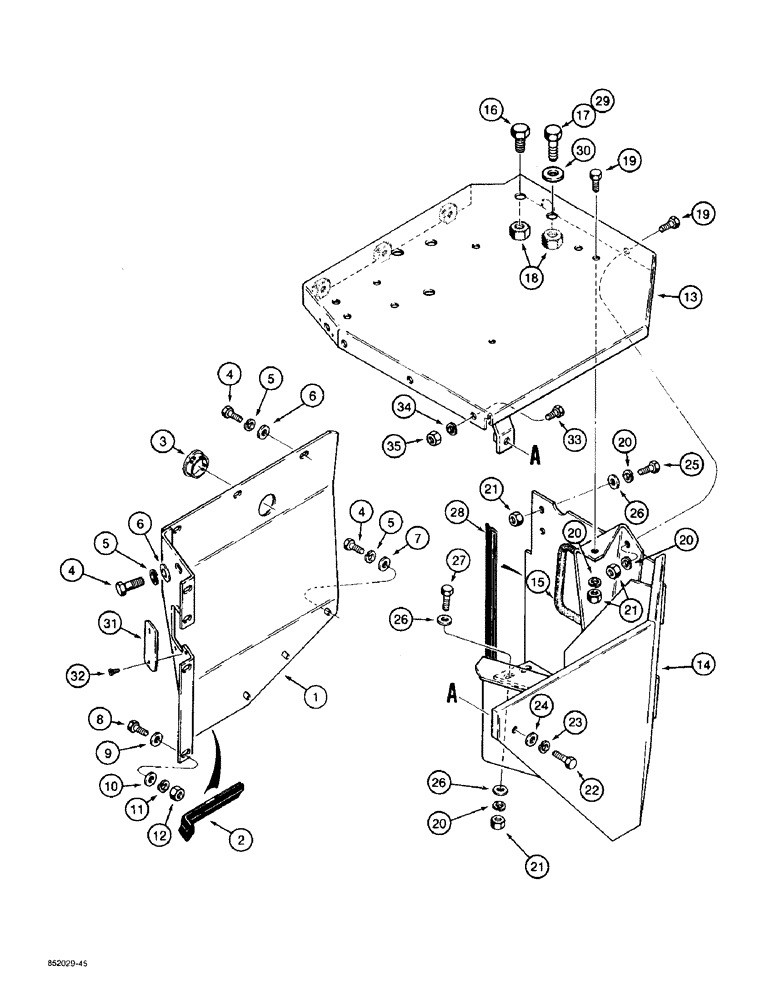

Запчасти Case 480F (9-094) - BATTERY COMPARTMENT AND VALVE MOUNTING PLATE (09) - CHASSIS/ATTACHMENTS

1

D127146

PANEL

SHIELD - plastic

1шт.

2

REF

INSTRUCTION

TRIM - edge, shield, 7 inch (178 mm) long, cut from D95814 bulk, see below

1шт.

3

353-417

PLUG,Dome, 2.000" hole, Nylon

- button, 2 inch (51 mm) diameter

1шт.

4

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6-7шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6-7шт.

6

495-81001

WASHER,5/16"

- flat, 5/16 x 1-1/8 inch (29 mm) OD, plated

5-6шт.

7

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

9

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

13

D146667

VALVE COVER

PLATE - valve mounting, includes D145761, 321-3581, 321-5797 and 321-3718 decals. See Figures 9-162 and 9-164

1шт.

14

D68445

BOX

COVER - hinged, battery and control valve

1шт.

15

REF

INSTRUCTION

TRIM - edge, hose opening, 18-5/8 inch (473 mm) long, cut from F42827, see below

1шт.

16

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, grade 8, Used on models with cab or canopy

1шт.

17

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch, grade 8, used on models with cab or canopy

1шт.

18

429-1010

NUT,5/8"-11, G8

2шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

20

492-11038

LOCK WASHER,3/8"

5шт.

21

425-106

NUT,3/8"-16, Cl 5

5шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

25

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

5шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

28

REF

INSTRUCTION

TRIM - edge, 9-1/8 inch (232 mm) long, cut from D95814 bulk, see below, battery and control valve cover

1шт.

29

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

Used on models without cab or canopy Hex, 5/8"-11 x 1 1/4", G5, Full Thd

2шт.

30

495-11066

WASHER,5/8", SAE

- flat, 5/8 inch, used on models without cab or canopy

2шт.

31

D72241

PLATE

- closure, models with 2 spool valve

1шт.

32

187-1325

SELF-TAP SCREW,Sltd Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan head, No. 10 NC x 1/2 inch

2шт.

33

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

34

492-11038

LOCK WASHER,3/8"

3шт.

35

425-106

NUT,3/8"-16, Cl 5

3шт.

D95814

CHANNEL

TRIM - edge, 13-3/16 inch (335 mm) long

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116 inch (2946 mm) long

1шт.
