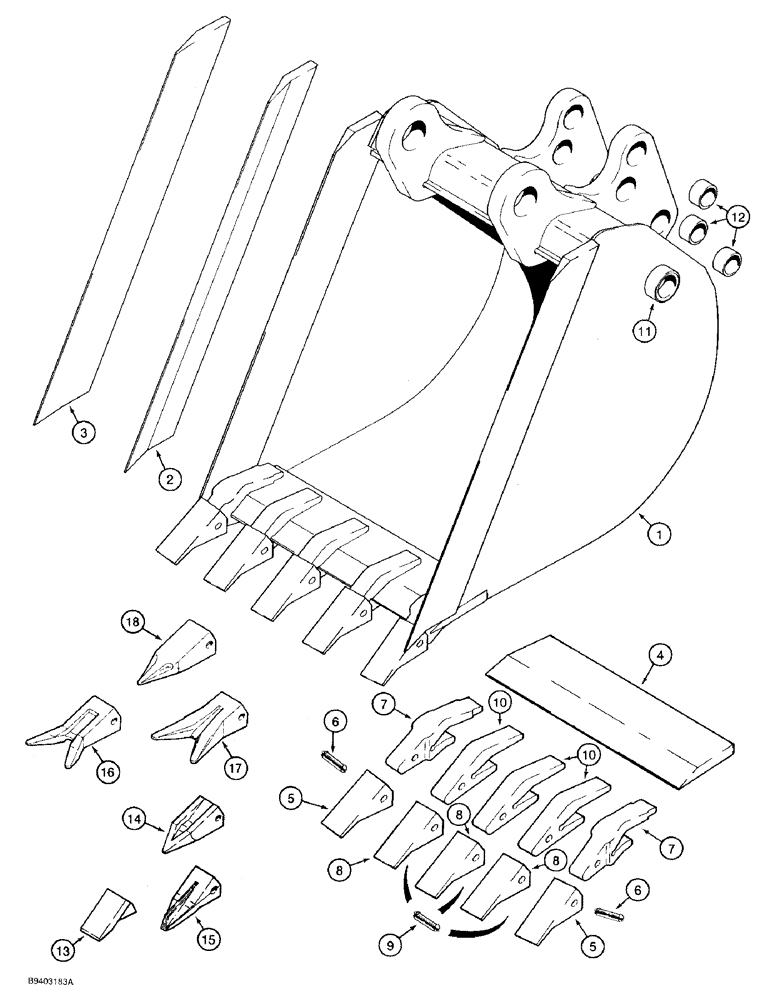

Запчасти Case 480F (9-064) - UNIVERSAL BACKHOE BUCKETS, 24 INCH (610 MM) WIDE TRENCHING BUCKET AND TEETH - HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D150348

BUCKET

ASSEMBLY - 24 inch (610 mm) wide, with 5 teeth, trenching, heavy duty, order from Machinery Price List, Includes: Ref. 1 - 12

1шт.

2

D134982

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D134983

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D142012

EDGE, CUTTING,597mm W x 165.1mm L

EDGE - cutting, center, 24 inch (610 mm) wide bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy - outer corners, Includes Ref 5 - 7

2шт.

5

D39093

TOOTH

POINT - tooth, outer corners

1шт.

6

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, outer point and shank

1шт.

7

D138157

SHANK

- tooth, outer corners

1шт.

D139708

TOOTH

ASSEMBLY - center, Includes: Ref. 8 - 10

3шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center

1шт.

9

D134686

SPLIT PIN/SAFETY PIN

PIN - flex, center point and shank

1шт.

10

D48212

SHANK

- tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 ID x 2-1/4 OD x 1-1/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 ID x 1-7/8 OD x 1-1/4 inch

4шт.

13

D44193

TOOTH

POINT - tooth, heavy duty, flat end, service option

1шт.

14

D80119

TOOTH

POINT - tooth, heavy duty, pointed end, service option

1шт.

15

D79100

TOOTH

POINT - tooth, heavy duty, star point, service option

1шт.

16

D140561

TOOTH

POINT - tooth, heavy duty, twin penetrator, service option

1шт.

17

D136045

TOOTH

POINT - tooth, heavy duty, twin point, service option

1шт.

18

D140562

TOOTH

POINT - tooth, heavy duty, penetrator, service option

1шт.
