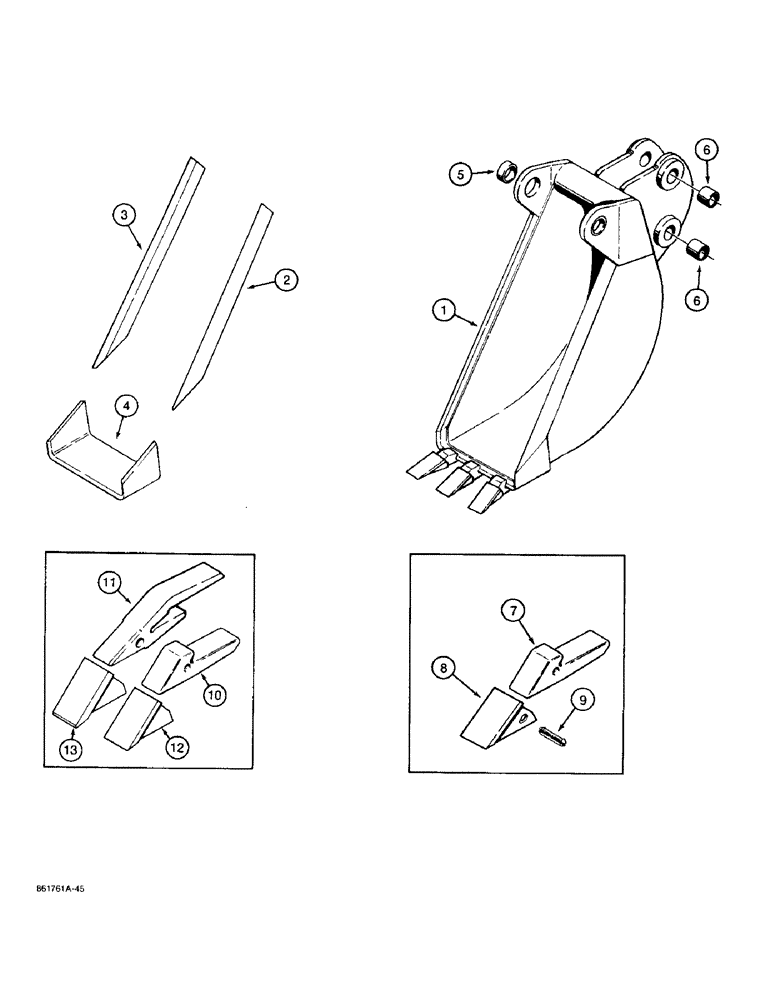

Запчасти Case 480F (9-062) - BACKHOE BUCKETS, 12 INCH (305 MM) WIDE (09) - CHASSIS/ATTACHMENTS

1

D52642

BUCKET

ASSEMBLY - 12 inch (305 mm) wide, order from Machinery Price List, Includes: Ref. 2 - 6, trenching bucket and teeth - heavy duty

1шт.

2

D29424

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D29423

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D37464

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

4шт.

D41659

TOOTH

ASSEMBLY - trenching bucket, pinned-on, Includes: Ref. 7 - 9, 12 inch (305 mm) wide heavy duty

3шт.

7

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

8

D39093

TOOTH

POINT - tooth

1шт.

9

D39094

BUCKET TOOTH KEY

PIN - flex, point

1шт.

10

D26368

SUPPORT

SHANK - tooth, original equipment, for crimp retained point, bucket

1шт.

11

D58499

SUPPORT

SHANK - tooth, service option, for crimp retained point, bucket

1шт.

12

D27748

TOOTH

POINT - tooth, standard, crimp retained, bucket

1шт.

13

D36720

TOOTH

POINT - tooth, heavy duty service option, crimp retained, bucket

1шт.
