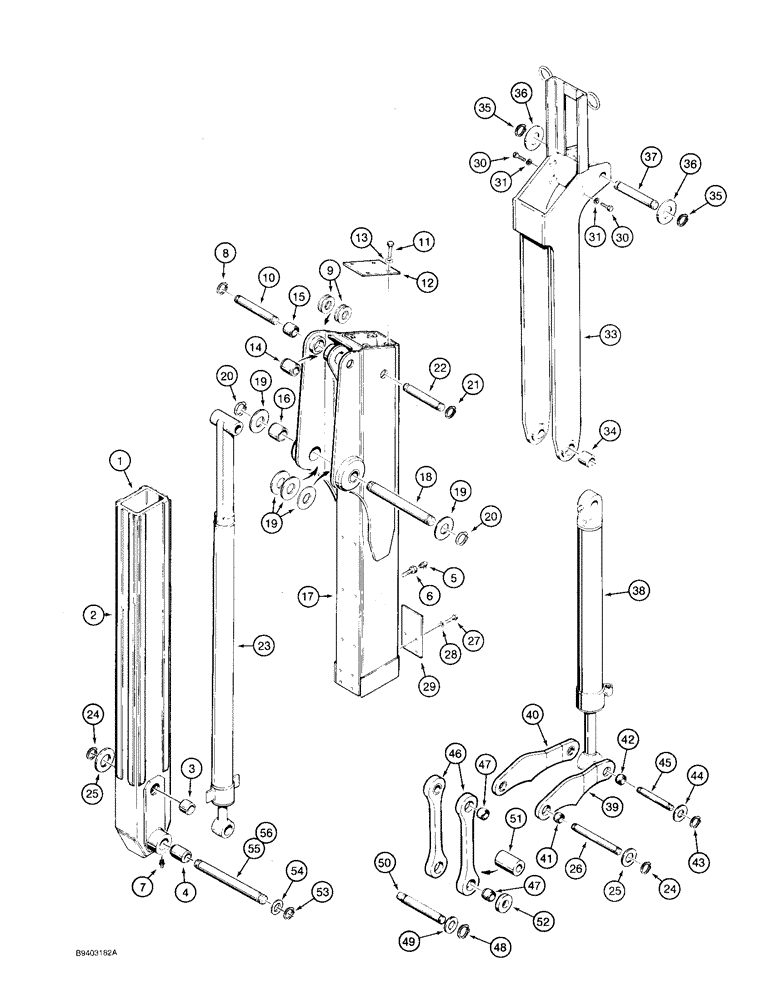

Запчасти Case 480F (9-058) - BACKHOE EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

D55721

EXTENSION

DIPPER ASSEMBLY - extension, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

DIPPER - extendable

1шт.

2

D55687

STRIP

- wear, dipper slide

8шт.

3

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- dipper, at bucket link

2шт.

4

D95213

BUSHING

- dipper, at bucket

2шт.

5

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 PT self-tap x 25/32 inch, used with Ref. 6 to lubricate dipper slide

1шт.

6

D134699

NOZZLE CAP

NOZZLE - extension, grease fitting, used with Ref. 5 to lubricate dipper slide, also order 9-72236 instruction sheet

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

8

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

9

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

1шт.

10

D53812

PIVOT PIN,1.5" OD x 10.14" L

PIN - dipper cylinder to extendable dipper

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

12

D99055

COVER

- end, dipper

1шт.

13

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

D99052

HOUSING

- extendable dipper, Includes: Ref. 14 - 17

1шт.

14

D30741

BUSHING,38.33mm ID x 47.63mm OD x 50.8mm L

- right-hand ear, dipper cylinder, 2 inch (51 mm) long

1шт.

15

D31141

BUSHING,38.33mm ID x 47.63mm OD x 41.15mm L

- left-hand ear, dipper cylinder, 1-5/8 inch (41 mm) long

1шт.

16

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

-, Serial Range: boom-dipper

2шт.

17

NSS

NOT SOLD SEPARAT

SLIDE - extendable dipper

1шт.

18

D45034

PIN

-, Serial Range: boom-dipper

1шт.

19

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

20

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

2шт.

21

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

22

D44882

PIN,38.1mm OD x 203.2mm L

- extension, Serial Range: cylinder-slide

1шт.

23

G101203

CYLINDER

ASSEMBLY - dipper extension, see Figure 8-142

1шт.

24

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

25

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

26

D53818

PIN,44.45mm OD x 278.89mm L

- extension cylinder to dipper and bucket links

1шт.

27

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

29

D75425

STOP

- dipper extension

1шт.

30

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, if used

4шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

4шт.

D136046

ARM

EXTENSION ASSEMBLY - dipper, Includes: Ref. 33 and 34

1шт.

33

NSS

NOT SOLD SEPARAT

EXTENSION - dipper

1шт.

34

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- bucket link pin

2шт.

35

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

36

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- spacer

1шт.

37

D37604

PIN

- bucket, Serial Range: cylinder-dipper

1шт.

38

G103503

CYLINDER BLOCK

CYLINDER ASSEMBLY - bucket, see Figure 8-138

1шт.

39

D99175

LINK ASSY.

LINK - guide, dipper and extension to dump links, right-hand, Includes: Ref. 41 and 42

1шт.

40

D99758

LINK ASSY.

LINK - guide, dipper and extension to dump links, left-hand, Includes: Ref. 41 and 42

1шт.

41

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link, dipper end

1шт.

42

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- link, bucket cylinder end

1шт.

43

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

44

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer

1шт.

45

D26002

PIN,38.1mm OD x 187.32mm L

- bucket cylinder to bucket linkage

1шт.

46

D99731

LINK

- dump, Includes: Ref. 47

2шт.

47

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link

2шт.

48

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

49

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer

1шт.

50

D37614

PIN,38mm Od x 246mm L

-, Serial Range: link-bucket

1шт.

51

D44887

SPACER

- link

1шт.

52

74163

SPACER

WASHER - spacer

2шт.

53

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

54

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

55

D123081

PIN,44.45mm OD x 370.84mm L

- dipper arm to bucket, used with all buckets except 12 inch (305 mm) buckets

1шт.

56

D40244

PIN,44.45mm OD x 327.02mm L

- dipper arm to bucket, used with 12 inch (305 mm) buckets only

1шт.
