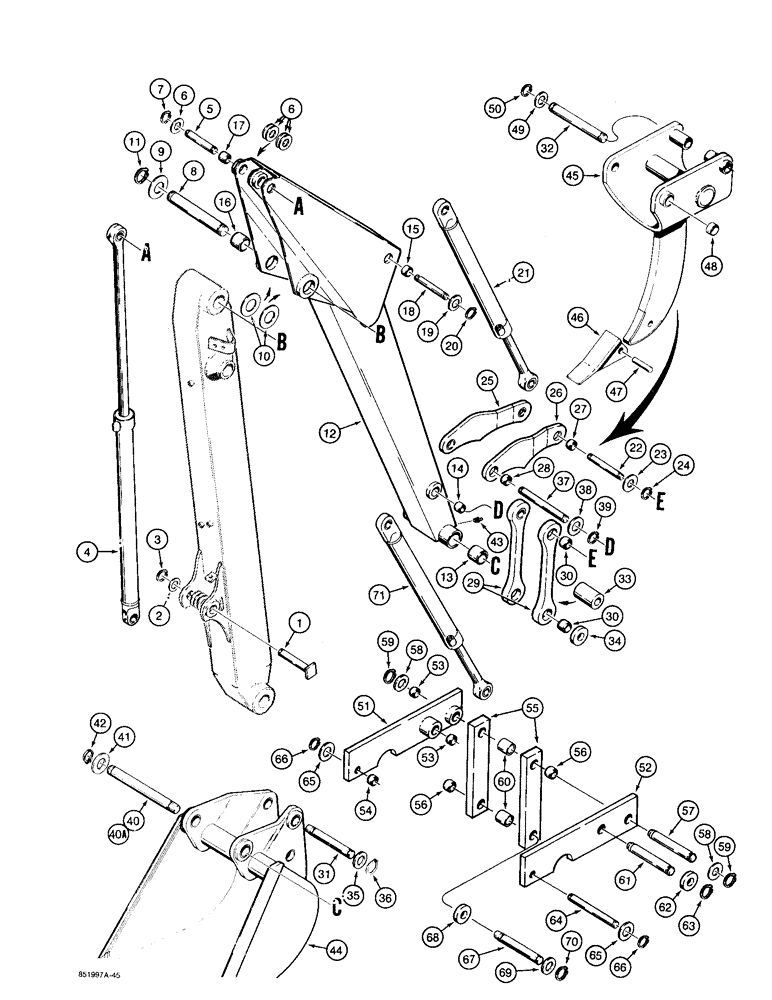

Запчасти Case 480F (9-050) - BACKHOE DIPPER AND BUCKET, 480F 12 FOOT BACKHOE MODELS (09) - CHASSIS/ATTACHMENTS

1

D99037

PIN

- dipper, Serial Range: cylinder-boom

1шт.

2

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer

1шт.

3

D25279

SNAP RING,M35, Int

RING - pin retaining

1шт.

4

G104844

CYLINDER

ASSEMBLY - dipper, parts list Figure 8-134

1шт.

5

D44881

PIN,38.1mm OD x 136.4mm L

- dipper, Serial Range: cylinder-dipper

1шт.

6

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer

1шт.

7

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

8

D37609

PIN

-, Serial Range: boom-dipper

1шт.

9

L47721

WASHER

SHIM - spacer

1шт.

10

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

11

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

2шт.

12

D84175

BOOM

DIPPER - backhoe, Includes: Ref. 13 - 17

1шт.

13

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- bucket at dipper

2шт.

14

D32890

BUSHING

- bucket linkage at dipper

2шт.

15

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- dipper at bucket cylinder

2шт.

16

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- dipper at boom

2шт.

17

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- dipper at dipper cylinder

2шт.

18

D44882

PIN,38.1mm OD x 203.2mm L

- dipper to bucket cylinder

1шт.

19

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer

1шт.

20

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

21

G103503

CYLINDER BLOCK

CYLINDER ASSEMBLY - bucket, parts list Figure 8-138

1шт.

22

D26002

PIN,38.1mm OD x 187.32mm L

- bucket cylinder to bucket linkage

1шт.

23

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer

1шт.

24

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

25

D84167

LINK

- guide, left-hand, if used, Includes: Ref. 27 and 28

1шт.

26

D84166

LINK

- guide, right-hand, if used, Includes: Ref. 27 and 28

1шт.

27

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- link, 1 each to D84167 and D84166

1шт.

28

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- link, 1 each to D84167 and D84166

1шт.

29

D99731

LINK

- bucket, if used, Includes: Ref. 30

2шт.

30

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket link, two each

2шт.

31

D37614

PIN,38mm Od x 246mm L

-, Serial Range: link-bucket

1шт.

32

D54218

PIN,38.1mm OD x 345.95mm L

- link to frost point, 13-5/8 inch long, if used

1шт.

33

D44887

SPACER

- link

1шт.

34

74163

SPACER

- link

2шт.

35

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer

1шт.

36

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

37

D44883

PIN,31.75mm OD x 238.25mm L

-, Serial Range: link-dipper

1шт.

38

495-81278

WASHER,33.53mm ID x 50.8mm OD x 3.35mm Thk

- flat, 1-5/16 x 2 x 1/8 inch

1шт.

39

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pin #125, Ext

2шт.

40

D123081

PIN,44.45mm OD x 370.84mm L

- dipper to bucket, used on all buckets except 12 inch (305 mm) bucket, if used

1шт.

40a

D40244

PIN,44.45mm OD x 327.02mm L

- dipper to bucket, for 12 inch (305 mm) buckets only

1шт.

41

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

42

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

43

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

44

REF

INSTRUCTION

BUCKET - backhoe, see Figures 9-062 through 9-066 for options

1шт.

D54136

SUPPORT ASSY.

POINT ASSEMBLY - frost, backhoe, Includes: Ref. 45 - 48

1шт.

45

NSS

NOT SOLD SEPARAT

BODY - frost point

1шт.

46

D83306

POINT

- tooth

1шт.

47

D43417

PIN

- tooth point

1шт.

48

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- frost point pivot

2шт.

49

495-81292

WASHER,1.56" ID x 3.25" OD x 0.18" Thk

- flat, 1-9/16 x 3-1/4 x 3/16 inch

2шт.

50

D25279

SNAP RING,M35, Int

RING - Ref. 32 pin retaining, used with frost point

2шт.

51

D132032

LINK ASSY.

LINK - guide, left-hand, if used, Includes: Ref. 53 and 54, special feature bucket links

1шт.

52

D132028

LINK ASSY.

LINK - guide, right-hand, if used, Includes: Ref. 53 and 54, special feature bucket links

1шт.

53

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- link, four each to D132032 and D132028, special feature bucket links

4шт.

54

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- link, one each to D132032 and D132028, special feature bucket links

1шт.

55

D132003

LINK ASSY.

LINK - bucket, if used, Includes: Ref. 56, special feature

2шт.

56

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket link, two each, special feature bucket links

2шт.

57

D53576

PIN

- bucket link to guide link, special feature bucket links

1шт.

58

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer, special feature bucket links

2шт.

59

D25279

SNAP RING,M35, Int

RING - pin retaining, special feature bucket links

2шт.

60

D44887

SPACER

- bucket links, special feature

2шт.

61

D53576

PIN

- cylinder to link, special feature bucket links

1шт.

62

74163

SPACER

WASHER - spacer, special feature bucket links

2шт.

63

D25279

SNAP RING,M35, Int

RING - pin retaining, special feature bucket links

2шт.

64

D44883

PIN,31.75mm OD x 238.25mm L

- link to dipper, special feature bucket links

1шт.

65

495-81278

WASHER,33.53mm ID x 50.8mm OD x 3.35mm Thk

- flat, 1-5/16 x 2 x 1/8 inch, special feature bucket links

2шт.

66

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pin, Special feature bucket links #125, Ext

2шт.

67

D37614

PIN,38mm Od x 246mm L

- link to bucket, special feature bucket links

1шт.

68

74163

SPACER

WASHER - spacer, special feature bucket links

2шт.

69

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer, special feature bucket links

2шт.

70

D25279

SNAP RING,M35, Int

RING - pin retaining, special feature bucket links

2шт.

71

G109342

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket, parts list Figure 8-140, used with special feature links and hardware, Ref. 51 - 70, if used

1шт.
