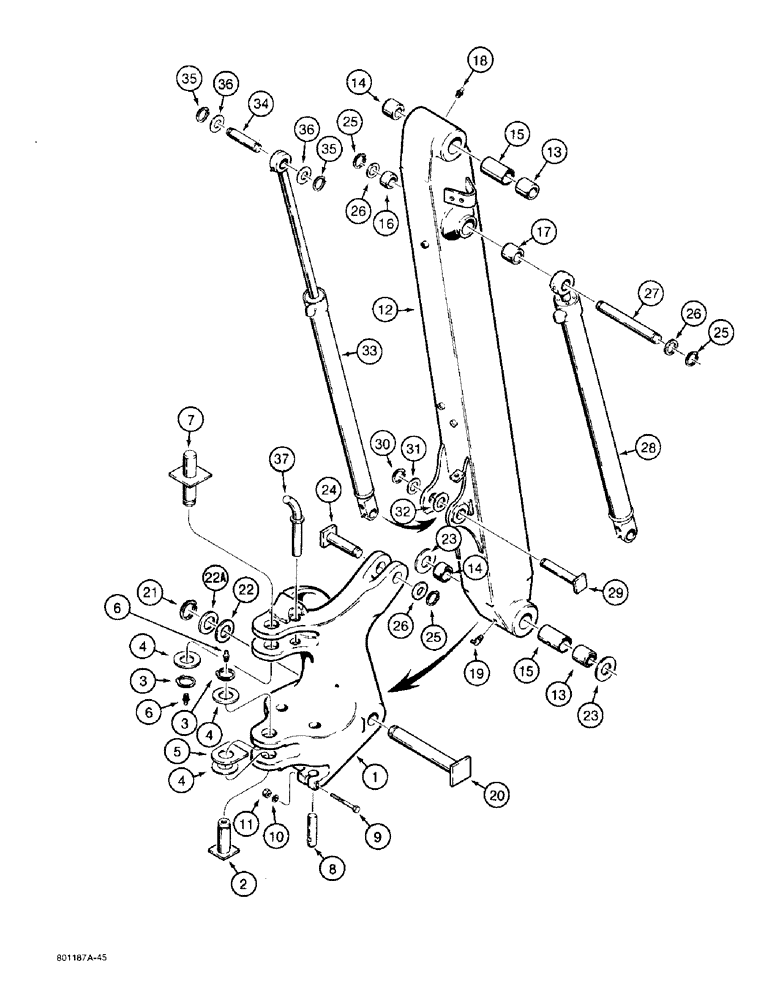

Запчасти Case 480F (9-042) - BACKHOE SWING TOWER AND BOOM, 480F 12 FOOT BACKHOE MODELS ONLY (09) - CHASSIS/ATTACHMENTS

1

D143749

CASING

TOWER - swing, backhoe

1шт.

2

D150966

PIN

- mounting frame to swing tower, lower, replaces D83625

1шт.

3

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

2шт.

4

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer .035" Thk

1шт.

5

D86084

WASHER

- wear

1шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

7

D99132

PIN

- swing tower to mounting frame, upper

1шт.

8

D47866

PIN,38.1mm OD x 139.7mm L

- swing cylinder to swing tower

2шт.

9

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

425-1010

NUT,5/8"-11, G5

2шт.

12

D99200

BOOM

- backhoe, Includes: Ref. 13 - 17

1шт.

ref#12--3x tube bosses welded to bottom of boom, to hold tube lines---see part number d42505. jcl.

1шт.

13

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- boom end, 2 inch (51 mm) long

2шт.

14

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- boom end, 1-1/2 inch (38 mm) long

2шт.

15

D99195

SPACER

- boom end

2шт.

16

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- boom cylinder pivot, 3/4 inch (19 mm) long

1шт.

17

D55626

BUSHING,44.68mm ID x 57.15mm OD x 41.91mm L

- boom cylinder pivot, 1-5/8 inch (41 mm) long

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

20

D99086

PIN

- boom to swing tower

1шт.

21

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

1шт.

22

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer (.78 mm) .035" Thk

1шт.

22a

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch

1шт.

23

L47721

WASHER

- spacer, 1/8 inch (3.2 mm) thick

1шт.

24

D120744

PIN

- boom cylinder to swing tower

1шт.

25

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

3шт.

26

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

- shim

3шт.

27

D81488

PIN

- boom, Serial Range: cylinder-boom

1шт.

28

G102835

CYLINDER

ASSEMBLY - boom, parts list Figure 8-132

1шт.

29

D99037

PIN

- dipper, Serial Range: cylinder-boom

1шт.

30

D25279

SNAP RING,M35, Int

RING - pin retaining

1шт.

31

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer

1шт.

32

D31312

WASHER

- hardened, spacer

1шт.

33

G104844

CYLINDER

ASSEMBLY - dipper, parts list Figure 8-134

1шт.

34

D44881

PIN,38.1mm OD x 136.4mm L

- dipper, Serial Range: cylinder-dipper

1шт.

35

D25279

SNAP RING,M35, Int

RING - pin retaining

2шт.

36

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

- spacer

6шт.

37

D99084

PIN

- swing lock

1шт.
