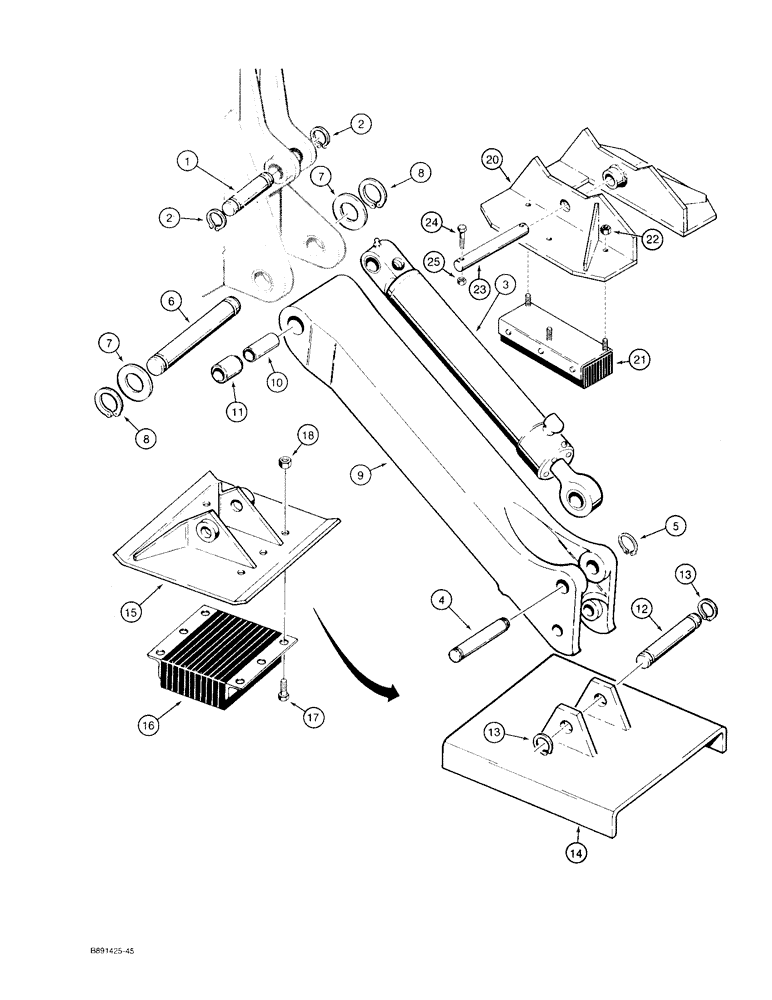

Запчасти Case 480F (9-040) - BACKHOE STABILIZERS (09) - CHASSIS/ATTACHMENTS

1

D28037

AXLE PIN

PIN - stabilizer cylinder to mounting frame

2шт.

2

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

3

1340827C1

CYLINDER

ASSEMBLY - stabilizer, parts list Figure 8-128

2шт.

4

D40941

PIN,38.1mm OD x 149.22mm L

- stabilizer cylinder to stabilizer leg

2шт.

5

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

6

D46404

PIN

- stabilizer leg to mounting frame

2шт.

7

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

4шт.

8

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

D94498

STABILIZER

LEG ASSEMBLY - stabilizer, Includes: Ref. 9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

LEG - stabilizer

1шт.

10

D121757

SPACER

- bushing

1шт.

11

D33054

BUSHING

-, Serial Range: leg-frame

2шт.

12

D37603

PIN

- stabilizer, Serial Range: leg-plate

2шт.

13

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Pin #125, Ext

4шт.

14

D99791

PAD

PLATE - stabilizer, square, cleated, standard, if used

2шт.

15

D61380

STABILIZER

PLATE - stabilizer, street or cemetery pad, optional

2шт.

16

D61368

PAD

Rubber, optional

2шт.

17

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

8шт.

18

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

19

D143476

DECAL

- flip-pad instruction, damage to cab can result, not shown, see Figure 9-164

2шт.

20

D143474

RUNNER

PLATE - stabilizer, flip over, Category III, if used

2шт.

21

D142314

SKID/SHOE

PAD - rubber, used with D143474 plate

4шт.

22

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

12шт.

23

D143475

PIN

- D143474 plate to stabilizer leg

2шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

4шт.

25

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.
