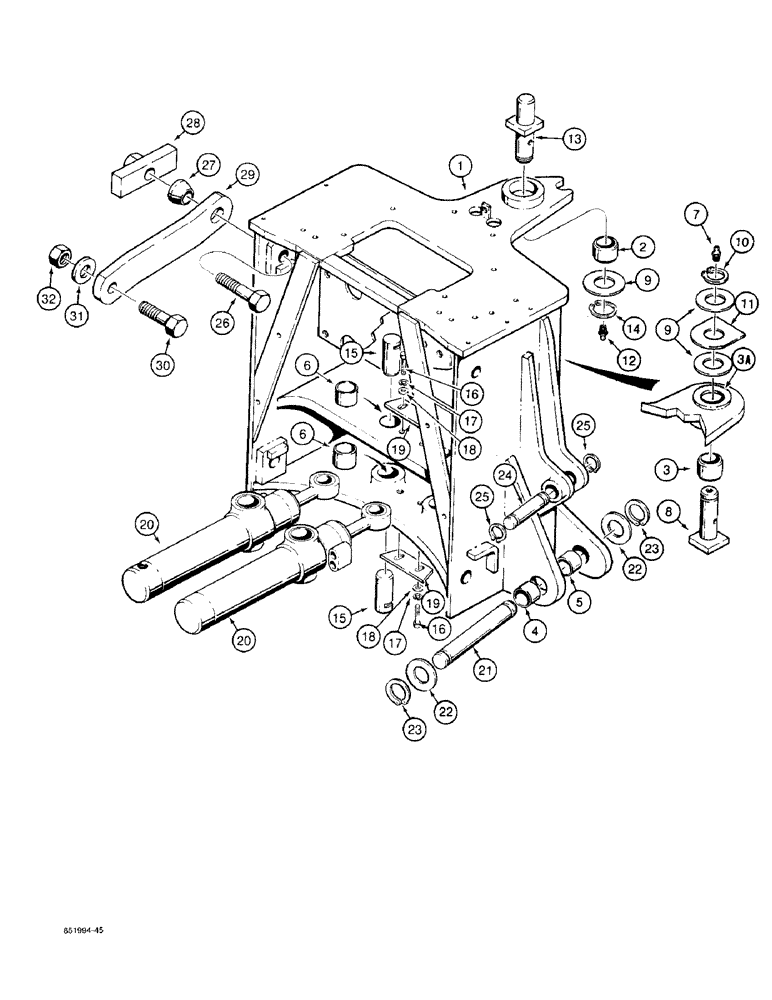

Запчасти Case 480F (9-038) - BACKHOE MOUNTING FRAME (09) - CHASSIS/ATTACHMENTS

1

D121756

FRAME

- backhoe mounting, Includes: Ref. 2 - 6

1шт.

2

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- frame to swing tower, upper

1шт.

3

D44697

BUSHING

- frame to swing tower, lower

1шт.

3a

D86085

WASHER

- wear, frame to swing tower, Serial Range: welds-frame

1шт.

4

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- frame to stabilizer leg, bracket without boss

2шт.

5

D37392

BUSHING,44.68mm ID x 53.98mm OD x 31.75mm L

- frame to stabilizer leg, bracket with boss

2шт.

6

D72170

BUSHING,44.48mm ID x 53.98mm OD x 31.75mm L

- frame to swing cylinder pins

4шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

8

D150966

PIN

- mounting frame to swing tower, lower

1шт.

9

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer .035" Thk

1шт.

10

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

1шт.

11

D86084

WASHER

- wear

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

13

D99132

PIN

- mounting frame to swing tower, upper

1шт.

14

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

1шт.

15

D99814

PIN,44.32mm OD x 75.2mm L

- swing cylinder to mounting frame

4шт.

16

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

18

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

19

D39926

PLATE

- pin retaining

2шт.

20

G110395

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 327.15mm Stroke

ASSEMBLY - swing, parts list Figure 8-130

2шт.

21

D46404

PIN

- stabilizer leg to mounting frame

2шт.

22

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

4шт.

23

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

24

D28037

AXLE PIN

PIN - stabilizer cylinder to mounting frame

2шт.

25

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

26

413-2080

BOLT,Hex, 1-1/4" - 7 x 5", Gr 5

- hex, 1-1/4 NC x 5 inch

4шт.

27

D30717

WASHER

- cone, special

4шт.

28

D99480

BLOCK

NUT - special, knockoff

4шт.

29

D70230

LINK

ARM - support, backhoe mounting frame

2шт.

30

D69035

BOLT

- special, 1-1/4 NC x 3-1/2 inch

2шт.

31

496-81013

WASHER,1 5/16" x 2 5/8" x 1/4", HDN

- flat, 1-5/16 x 2-5/8 x 1/4 inch, hardened

2шт.

32

425-1020

NUT,1 1/4"-7, G5

- hex, 1-1/4 inch NC

2шт.
