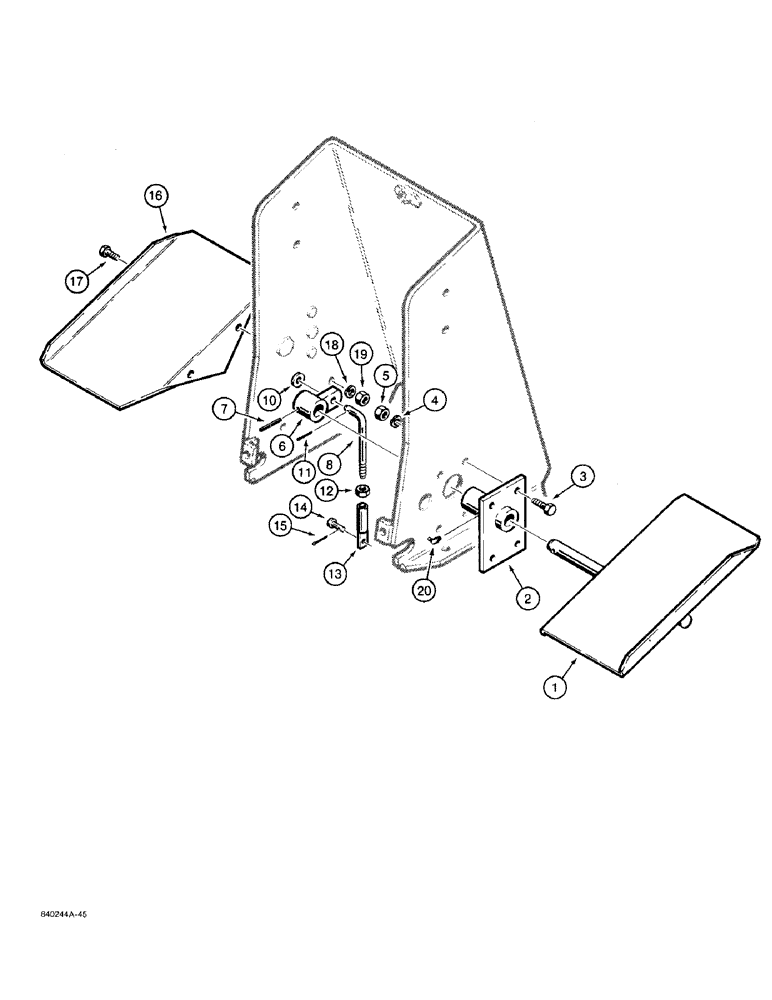

Запчасти Case 480F (9-036) - BACKHOE EXTENDABLE DIPPER CONTROL, HAND SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

D87866

PEDAL

- extendable dipper control

1шт.

2

D87854

BRACKET

SUPPORT - pedal

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

D87860

LEVER

- pivot

1шт.

7

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

1шт.

8

D87867

ROD

- control

1шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

11

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

12

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

13

D87857

LINK

Link

1шт.

14

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

1шт.

15

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

16

D87863

PLATFORM

- left-hand foot

1шт.

17

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

18

492-11038

LOCK WASHER,3/8"

2шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8 PT x 1-13/16 inch

1шт.
