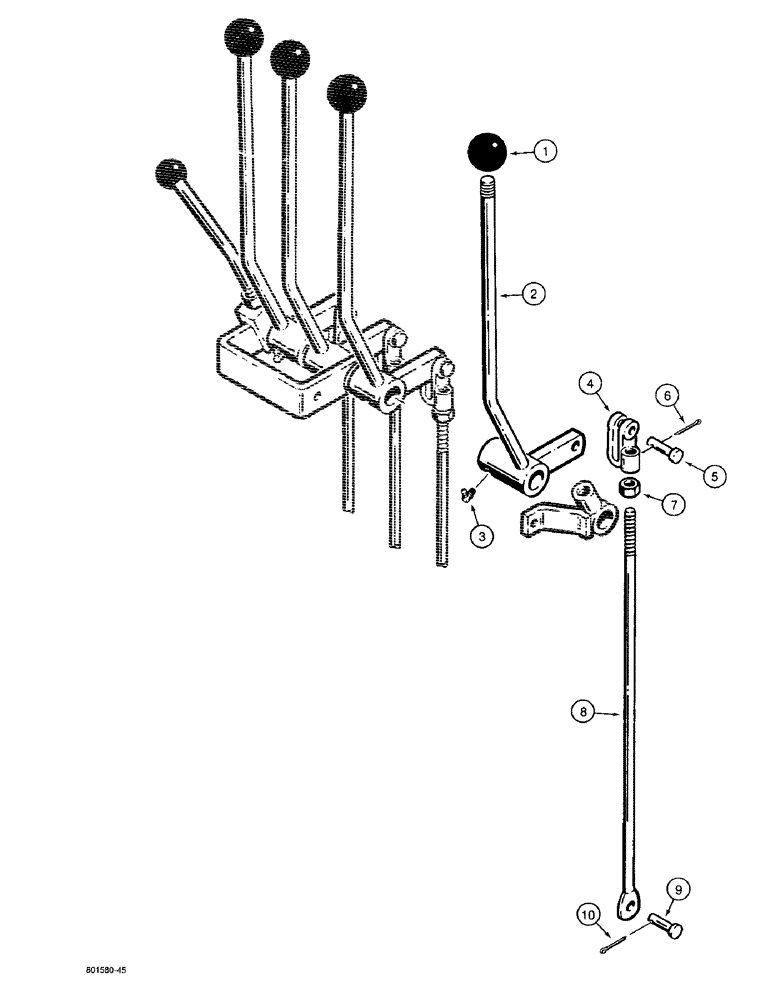

Запчасти Case 480F (9-034) - BACKHOE EXTENDABLE DIPPER CONTROL, FOOT SWING MODELS (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever

1шт.

2

D99177

LEVER

- extendable dipper control

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

4

L11182

YOKE,3/8" - 24

CLEVIS - 3/8 inch, offset

1шт.

5

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

1шт.

6

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

7

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

8

D30821

ROD

- extendable dipper control

1шт.

9

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.
