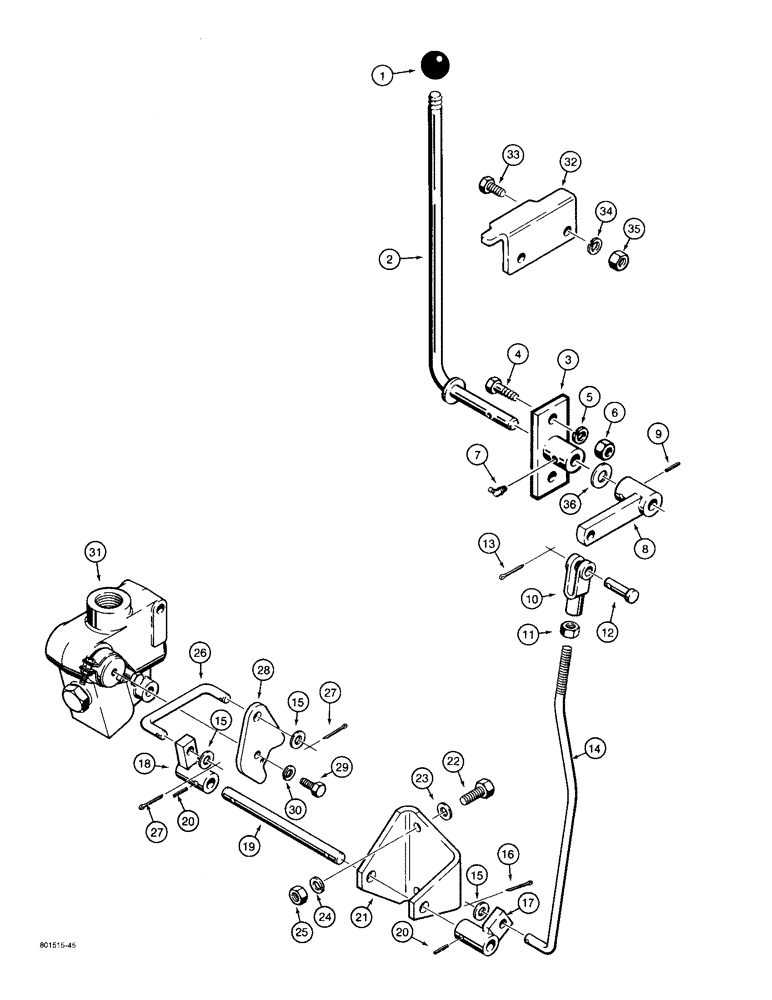

Запчасти Case 480F (9-032) - BACKHOE BOOM LOCK CONTROL (09) - CHASSIS/ATTACHMENTS

1

D59912

KNOB

- control lever

1шт.

2

D89994

LEVER

- boom lock control

1шт.

3

D89341

BRACKET

SUPPORT - boom lock control

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

425-106

NUT,3/8"-16, Cl 5

2шт.

7

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8 PT x 1-13/16 inch

1шт.

8

D89344

CRANK

LEVER - pivot

1шт.

9

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

10

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, , Special 3/8"-24 x 2 1/2"

1шт.

11

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

12

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

1шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

14

D99786

ROD

- boom lock control

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

16

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

17

D99781

ARM

- inner

1шт.

18

D99782

ARM

- outer

1шт.

19

D99780

LINK

SHAFT - pivot, boom lock control

1шт.

20

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

2шт.

21

D99783

BRACKET

- pivot shaft

1шт.

22

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

24

492-11038

LOCK WASHER,3/8"

2шт.

25

425-106

NUT,3/8"-16, Cl 5

2шт.

26

D99785

LINK

- shaft arm to boom lock valve lever

1шт.

27

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

28

D89888

LEVER

- boom lock valve

1шт.

29

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

30

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

31

D88644

VALVE

ASSEMBLY - boom lock, parts list Figure 8-100, mounting parts on Figure 8-046

1шт.

32

D93422

BRACKET

- control lever latch

1шт.

33

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

34

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

35

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

36

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.
