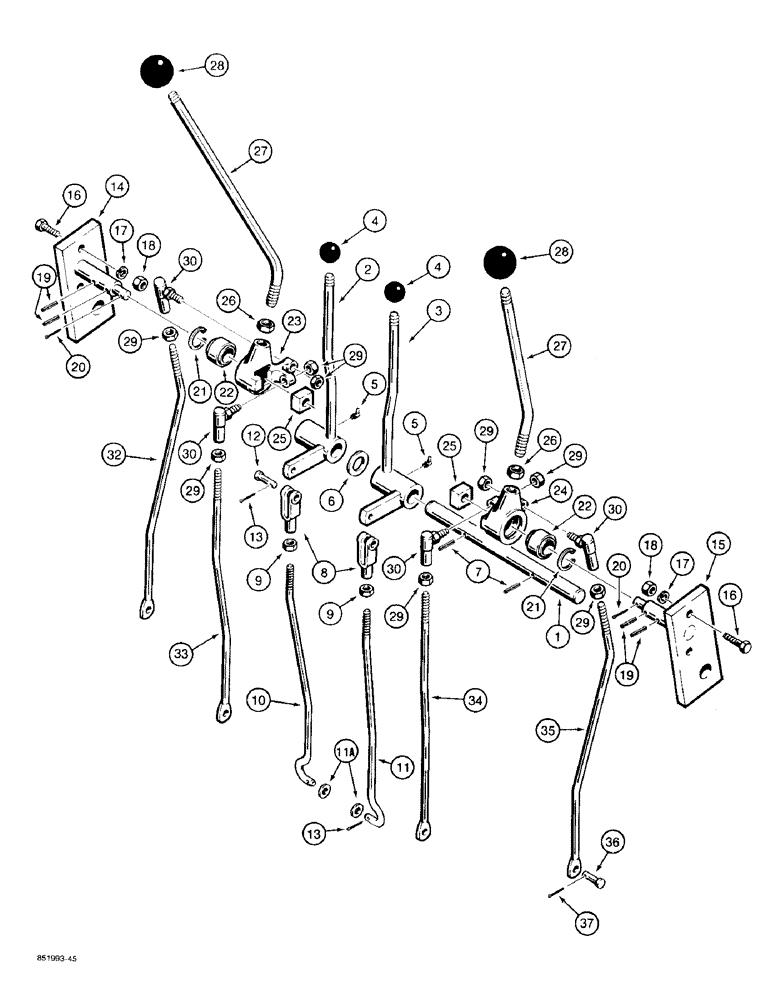

Запчасти Case 480F (9-030) - BACKHOE CONTROLS WITH HAND SWING (09) - CHASSIS/ATTACHMENTS

1

D91195

SHAFT

- stabilizer control levers

1шт.

2

D91169

LEVER

- stabilizer control, left-hand

1шт.

3

D91170

LEVER

- stabilizer control, right-hand

1шт.

4

D59912

KNOB

- stabilizer control lever

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

6

195-2097

WASHER,15/16" x 1 3/4" x .083"

- flat, 15/16 x 1-3/4 x 1/16 inch

1шт.

7

138-319

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

8

213-125

ADJUSTABLE CLEVIS,5/16" - 32

No. 10 5/16"-24

2шт.

9

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

10

D126335

ROD

- left-hand stabilizer

1шт.

11

D126336

ROD

- right-hand stabilizer

1шт.

11a

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

12

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

2шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

14

D91534

SUPPORT

- backhoe controls, left-hand

1шт.

15

D91185

SUPPORT

- backhoe controls, right-hand

1шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

4шт.

20

432-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

21

D38298

SNAP RING

Ring, Snap, 1.438", Int, #143, brg

2шт.

22

D38297

SPHERICAL BEARING,22.23mm ID x 36.51mm OD x 19.43mm W

- self-aligning

2шт.

23

L105056

LEVER

- pivot, left-hand, replaces D38302 lever

1шт.

24

L109118

LEVER

- pivot, right-hand, replaces D38303 lever

1шт.

25

D38305

BLOCK

- wear

2шт.

26

425-1110

NUT,5/8"-18, G5

2шт.

27

D94184

LEVER

- boom and swing, dipper and bucket control

2шт.

28

D39118

KNOB

- control levers

2шт.

29

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

8шт.

30

D121417

BALL JOINT,3/8" - 24 x 1-3/8"

JOINT - ball, 3/8 inch, special

4шт.

32

D91177

ROD

- boom control

1шт.

33

D91178

ROD

- swing control

1шт.

34

D91179

ROD

- bucket control

1шт.

35

D91180

ROD

- dipper control

1шт.

36

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

4шт.

37

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.
