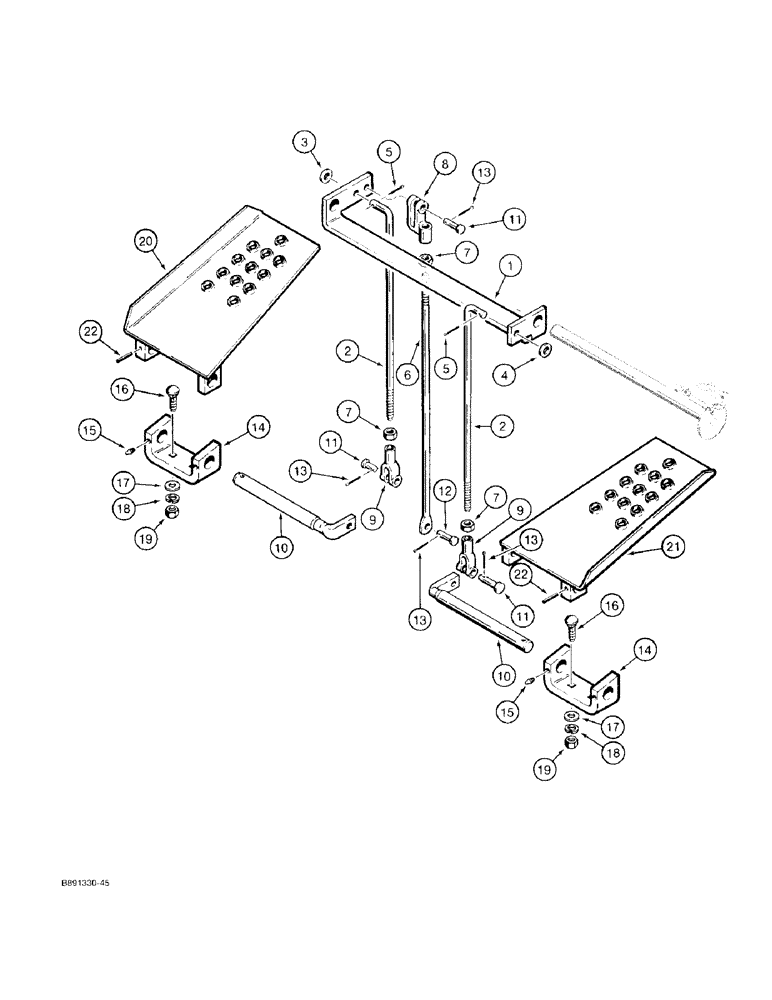

Запчасти Case 480F (9-028) - BACKHOE CONTROLS WITH FOOT SWING, SWING PEDALS AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D129392

BRACKET

- swing pivot

1шт.

2

D81905

ROD

- swing pedal, Serial Range: shaft-bracket

2шт.

3

T40163

WASHER

- flat, left-hand rod

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

5

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

6

D30821

ROD

- swing bracket to valve, straight, uses offset clevis

1шт.

7

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

3шт.

8

L11182

YOKE,3/8" - 24

CLEVIS - 3/8 inch, offset, used on models with or without extendable dipper

1шт.

9

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, , Special 3/8"-24 x 2 1/2"

2шт.

10

D135328

SHAFT

- swing pedal

2шт.

11

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

3шт.

12

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

1шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

14

D92817

BRACKET

- swing pedal shaft

2шт.

15

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

4шт.

16

411-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT - carriage, 3/8 NC x 2 inch, grade 2

4шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

425-106

NUT,3/8"-16, Cl 5

4шт.

20

D87888

PEDAL

- swing, left-hand

1шт.

21

D87886

PEDAL

- swing, right-hand

1шт.

22

438-11620

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.
