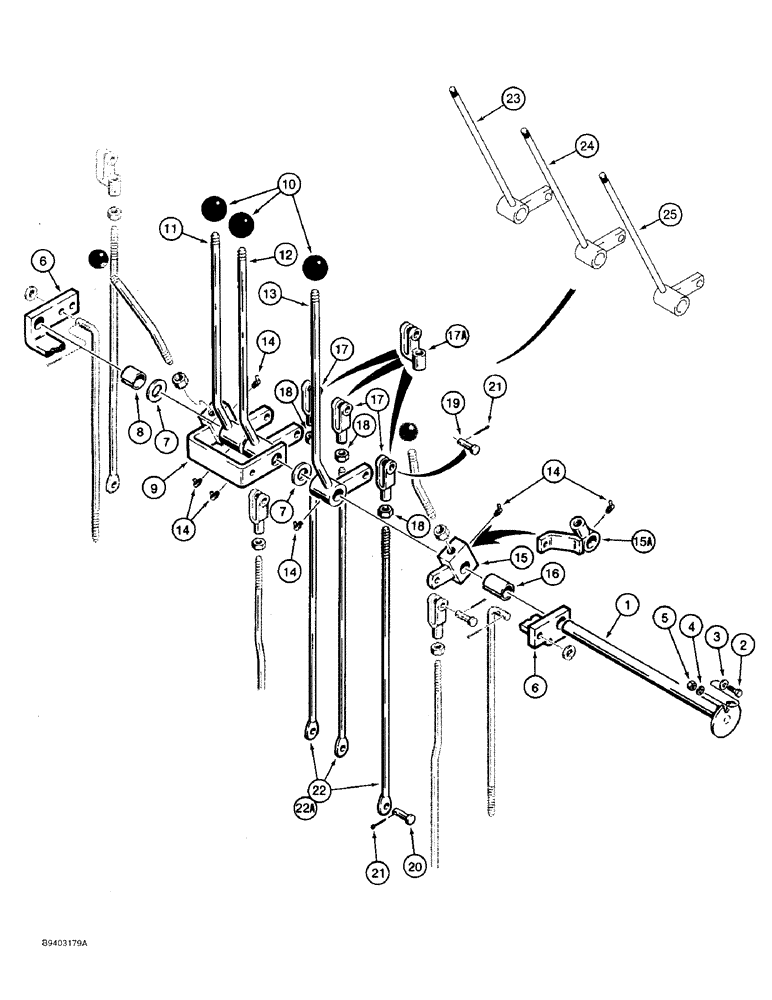

Запчасти Case 480F (9-026) - BACKHOE CONTROLS WITH FOOT SWING, BOOM, DIPPER, AND BUCKET CONTROL LEVERS & LINKAGE (09) - CHASSIS/ATTACHMENTS

1

D123224

SHAFT

- control levers

1шт.

2

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

3

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch, Teflon

1шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

6

D129392

BRACKET

- swing pivot

1шт.

7

495-11081

WASHER,3/4", SAE

1шт.

8

D88212

BUSHING

SPACER - left-hand, not used with extendable dipper

1шт.

9

D92993

BRACKET

- left-hand stabilizer pivot

1шт.

10

L54563

KNOB

- boom, dipper, and bucket control levers

3шт.

11

D99173

HANDLE

LEVER - control, bucket, Serial Range: -JJG0004788

1шт.

12

D99172

HANDLE

LEVER - control, dipper, Serial Range: -JJG0004788

1шт.

13

D99171

HANDLE

LEVER - control, boom, Serial Range: -JJG0004788

1шт.

14

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

5шт.

15

D92995

LEVER

- pivot, right-hand stabilizer on models without extendable dipper

1шт.

15a

D87834

LEVER

- pivot, right-hand stabilizer on models with extendable dipper

1шт.

16

D88213

SPACER

- right-hand, not used with extendable dipper

1шт.

17

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, , Special 3/8"-24 x 2 1/2"

3шт.

17a

L11182

YOKE,3/8" - 24

CLEVIS - 3/8 inch, offset, used on models with extendable dipper

3шт.

18

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

3шт.

19

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, 3/8" x 1 1/16"

3шт.

20

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

3шт.

21

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

6шт.

22

D81902

ROD

- boom, dipper, and bucket control, straight, models without extendable dipper

3шт.

22a

D30821

ROD

- boom, dipper, and bucket control, straight, models with extendable dipper, uses offset clevis (Ref. 17A)

3шт.

23

D79531

LEVER

- control, bucket JJG0004788 to

1шт.

24

D79530

LEVER

- control, dipper JJG0004788 to

1шт.

25

D79529

LEVER

- control, boom JJG0004788 to

1шт.
