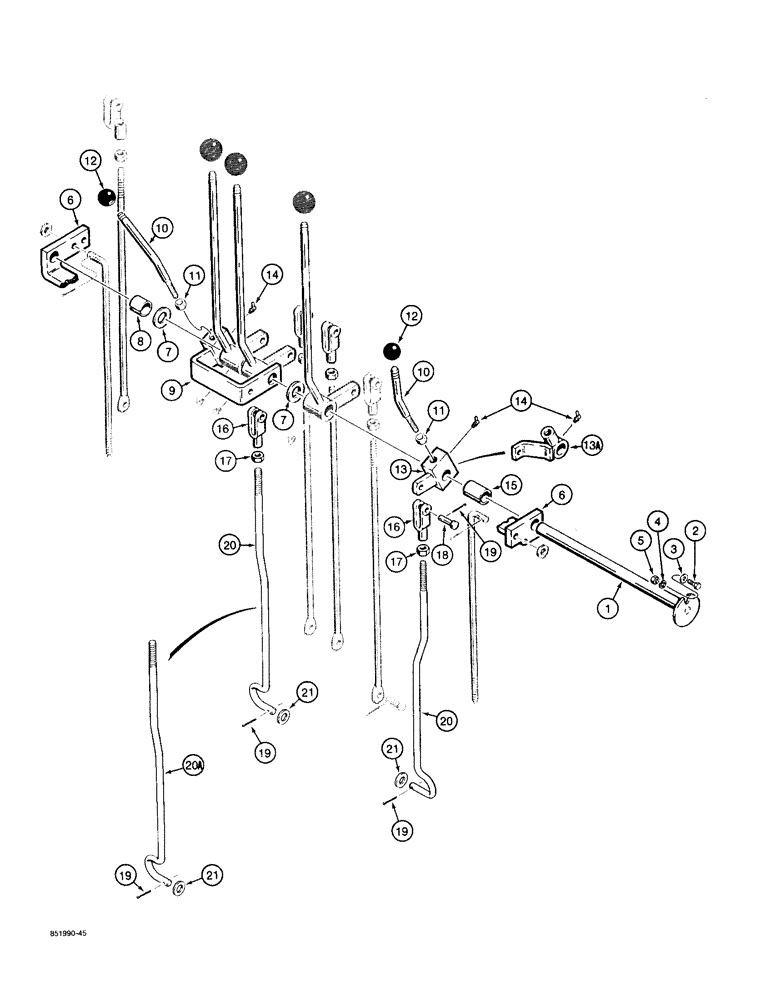

Запчасти Case 480F (9-024) - BACKHOE CONTROLS WITH FOOT SWING, STABILIZER CONTROL LEVERS AND LINKAGE (09) - CHASSIS/ATTACHMENTS

1

D123224

SHAFT

- control levers

1шт.

2

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

3

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

6

D129392

BRACKET

- swing pivot

1шт.

7

495-11081

WASHER,3/4", SAE

1шт.

8

D88212

BUSHING

SPACER - left-hand, not used with extendable dipper

1шт.

9

D92993

BRACKET

- left-hand stabilizer pivot

1шт.

10

L108004

LEVER

- stabilizer control, replaces D86249

2шт.

11

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

12

D59912

KNOB

- stabilizer control levers

2шт.

13

D92995

LEVER

- pivot, right-hand stabilizer on models without extendable dipper

1шт.

13a

D87834

LEVER

- pivot, right-hand stabilizer on models with extendable dipper

1шт.

14

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

2шт.

15

D88213

SPACER

- right-hand, not used with extendable dipper

1шт.

16

213-125

ADJUSTABLE CLEVIS,5/16" - 32

No. 10 5/16"-24

2шт.

17

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

18

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

PIN - clevis, 5/16 x 15/16 inch, hardened

2шт.

19

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

20

D126331

STEM

ROD - stabilizer control, two used on models without extendable dipper

1-2шт.

20a

D126334

ROD

- left-hand stabilizer control on models with extendable dipper

1шт.

21

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.
