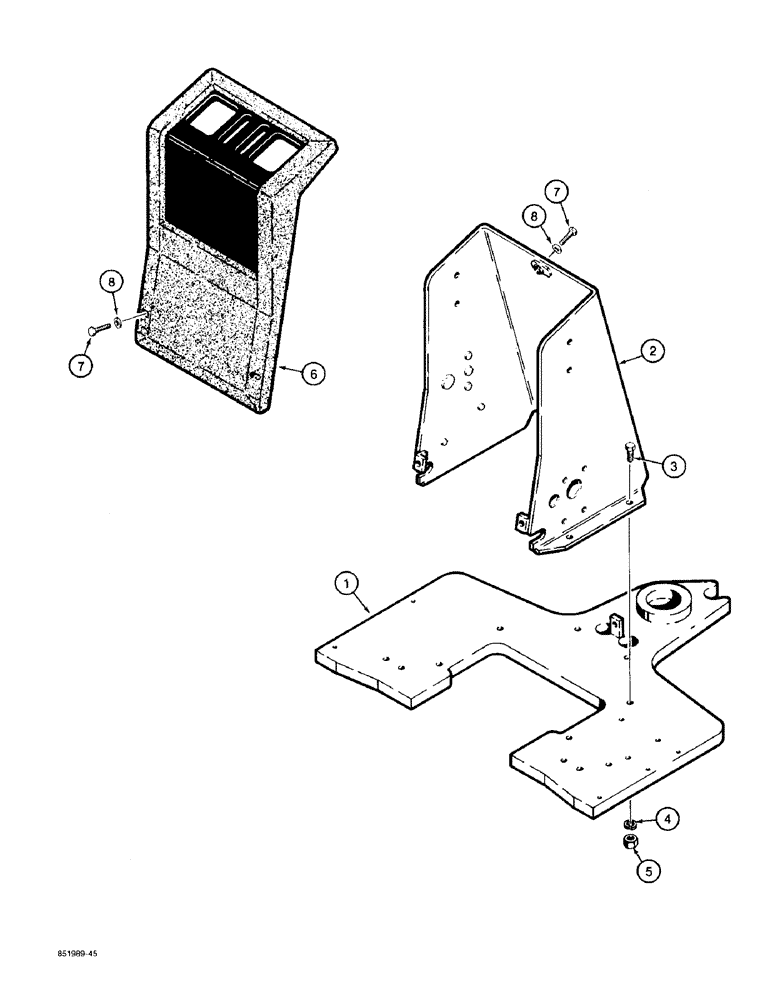

Запчасти Case 480F (9-022) - BACKHOE CONTROL TOWER WITH HAND SWING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - backhoe mounting, see Figure 9-038

1шт.

2

D123963

SUPPORT

TOWER - backhoe control

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

D124080

COVER ASSY

COVER - console, brown, includes D123948, D123978, 321-3056 321-3058 and L111356 decals, see Figures 9-162 and 9-164

1шт.

7

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

3шт.

8

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

3шт.
