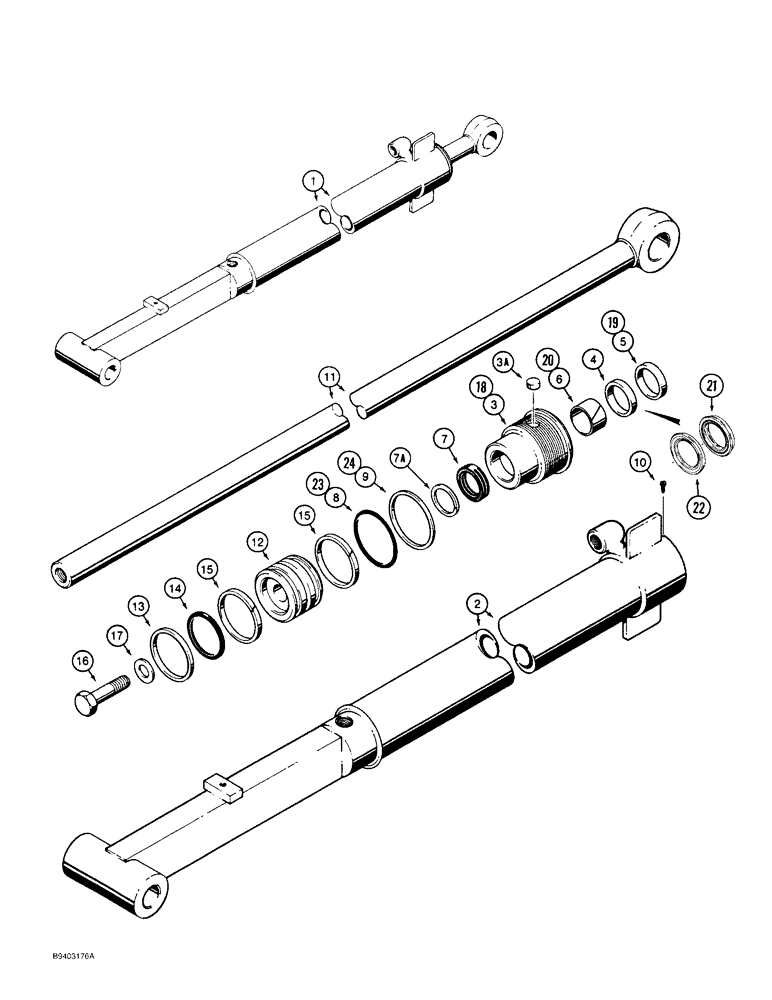

Запчасти Case 480F (8-142) - G101203 BACKHOE DIPPER EXTENSION CYLINDER (08) - HYDRAULICS

1

G101203

CYLINDER

ASSEMBLY - 3 inch (76 mm) ID x 36-3/8 inch (924 mm) stroke, dipper extension, Includes: Ref. 2 - 25

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G33205

TUBE,61.21" L

- cylinder

1шт.

G104222

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9, no longer available, order Ref. 18, 1542962C1 gland and 1543252C1 seal kit below

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G109452.

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N G109452.

1шт.

7

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109452.

1шт.

7

G100776

SEAL

- U-cup, piston rod, service option, severe heat or cold

1шт.

7a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- piston rod, narrow, with groove

1шт.

Part of seal kit P/N G109452.

1шт.

8

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G109452.

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

11

G33207

ROD

- piston, 1-1/2 inch (38 mm) diameter

1шт.

G100441

PISTON

ASSEMBLY - cylinder, Includes: Ref. 12 - 15

1шт.

12

G100442

PISTON

- cylinder

1шт.

13

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of seal kit P/N G109452.

1шт.

14

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of seal kit P/N G109452.

1шт.

15

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

Part of seal kit P/N G109452.

1шт.

16

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

Special Hex, 3/4-16 x 2 1/2", G8

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 18 - 24

1шт.

18

1542962C1

GLAND

- cylinder

1шт.

19

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

20

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Not shown, Order 1543252C1, Incl Ref 21 and 22

1шт.

21

1542997C1

SEALING RING

- rod, NSS, order 1543252C1 kit below

1шт.

22

1542996C1

SEAL

- buffer, NSS, order 1543252C1 kit below

1шт.

23

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

24

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup

1шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, not shown

1шт.

G109452

GASKET KIT

KIT - seal, Includes: Ref. 5 - 7 (P/N G107921), 7A, 9 and 13 - 15, no longer available, order 1543252C1 kit below

1шт.

1543252C1

SEAL KIT

KIT - seal, Includes: Ref. 7A, 13 - 15, 19 - 24 and an instruction sheet

1шт.
