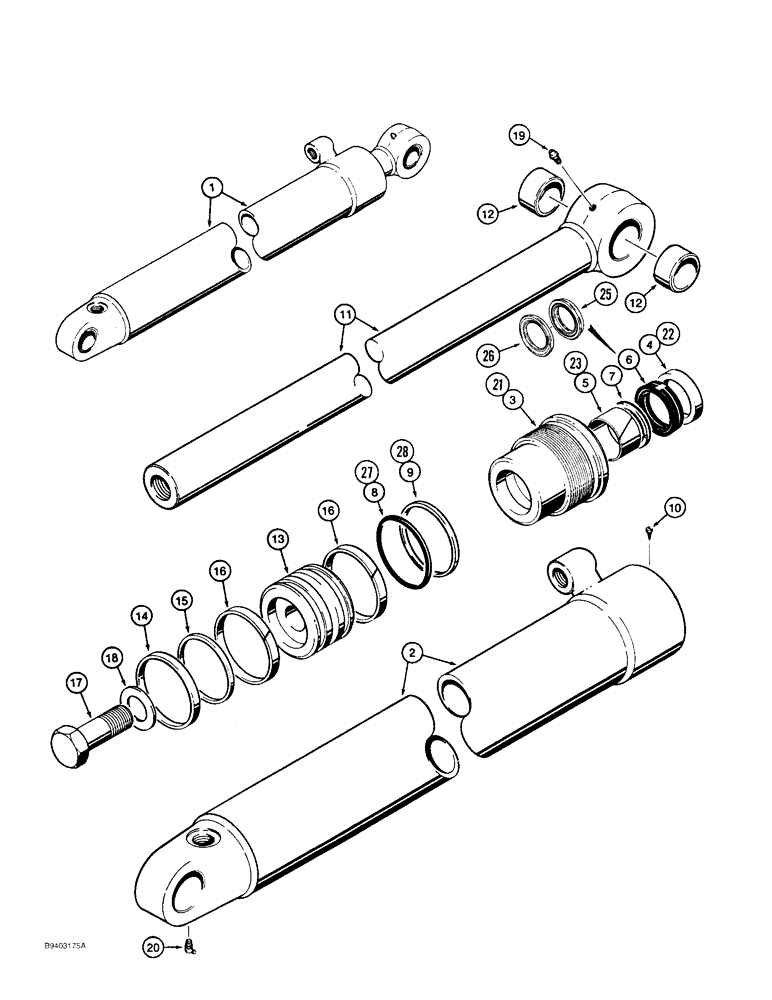

Запчасти Case 480F (8-140) - G109342 BACKHOE BUCKET CYLINDER, USED ON MODELS WITH SPECIAL FEATURE LINKS (08) - HYDRAULICS

1

G109342

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/2 inch (89 mm) ID x 26-5/16 inch (668 mm) stroke, backhoe bucket, Includes: Ref. 2 - 28

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

This cylinder is used only on models with special feature links. See Figure 9-050, Ref. 51 - 70, for links.

1шт.

2

G109343

TUBE

- cylinder, without bushings

1шт.

G104268

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9, no longer available, order Ref. 21, 1543118C1 gland and 1543294C1 seal kit below

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of seal kit P/N G109504.

1шт.

5

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of seal kit P/N G109504.

1шт.

6

G109228

SEAL,63.45mm ID x 76.25mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109504.

1шт.

7

G107998

SEAL,63.07mm ID x 79.2mm OD x 4.9mm Thk

- piston rod, narrow, with groove

1шт.

Part of seal kit P/N G109504.

1шт.

8

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G109504.

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G109504.

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

11

G109752

ROD ASSY.

ROD ASSEMBLY - piston, 2-1/2 inch (64 mm) diameter, Includes: Ref. 12

1шт.

12

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

13

G103357

PISTON

- cylinder

1шт.

14

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109504.

1шт.

15

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup, piston seal

1шт.

Part of seal kit P/N G109504.

1шт.

16

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of seal kit P/N G109504.

1шт.

17

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

18

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

20

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 21 - 28

1шт.

21

1543118C1

GLAND

- cylinder

1шт.

22

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

23

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

24

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

KIT - seal, NSS, not shown, order 1543294C1, Includes: Ref. 25 and 26

1шт.

25

1542931C1

SEAL

- rod, NSS, order 1543294C1 kit below

1шт.

26

1543930C1

SPINDLE

SEAL - buffer, NSS, order 1543294C1 kit below

1шт.

27

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

2шт.

28

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

G109504

KIT

- seal, Includes: Ref. 4 - 9 and 14 - 16, no longer available, order 1543294C1 kit below

1шт.

1543294C1

SEAL KIT

- seal, Includes: Ref. 7, 14 - 16, 22 - 28 and an instruction sheet

1шт.
