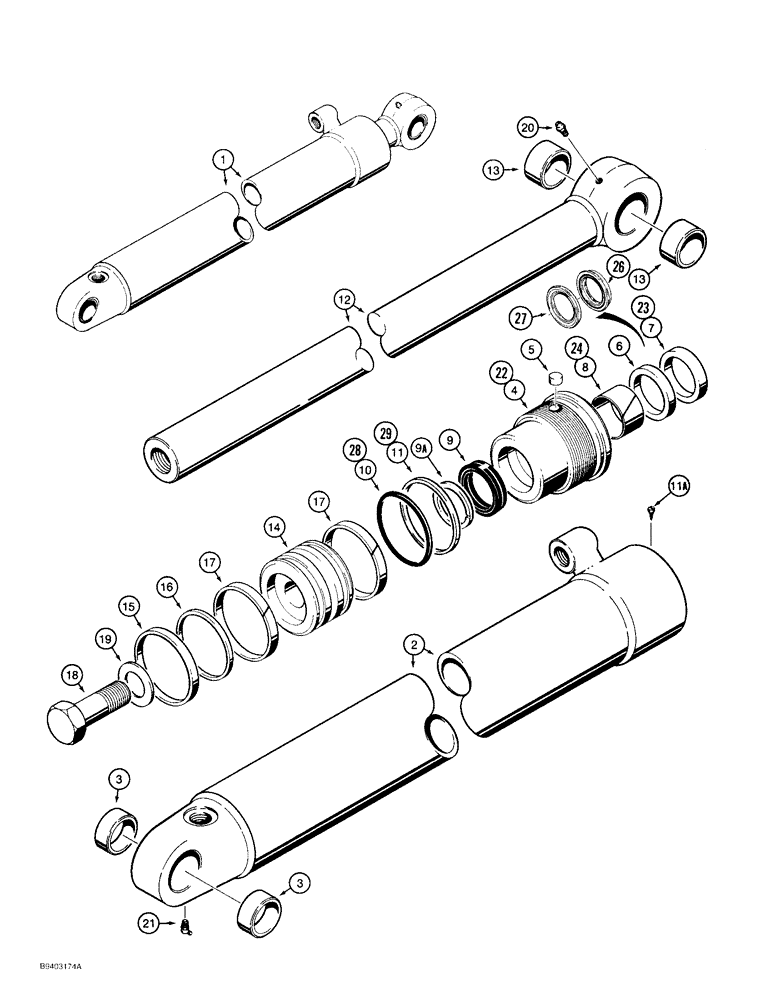

Запчасти Case 480F (8-138) - G103503 BACKHOE BUCKET CYLINDER (08) - HYDRAULICS

1

G103503

CYLINDER BLOCK

CYLINDER ASSEMBLY - 3-1/4 inch (83 mm) ID x 26-5/16 inch (668 mm) stroke, backhoe bucket, Includes: Ref. 2 - 29

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G103504

TUBE,34.36" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- tube

2шт.

G104252

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11, no longer available, order Ref. 22, 1543025C1 gland and 1543268C1 seal kit below

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of seal kit P/N G109465.

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of seal kit P/N G109465.

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109465.

1шт.

9

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

9a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow, with groove

1шт.

Part of seal kit P/N G109465.

1шт.

10

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

11

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup, gland O-ring

1шт.

Part of seal kit P/N G109465.

1шт.

11a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

12

1978065C1

ROD

ASSEMBLY - piston, 2 inch (51 mm) diameter, replaces G103509 rod, Includes: Ref. 13

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

14

G100640

PISTON

- cylinder

1шт.

15

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109465.

1шт.

16

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

- backup, piston seal

1шт.

Part of seal kit P/N G109465.

1шт.

17

S109445

RING,82.55mm OD, Ext

- wear, piston

2шт.

Part of seal kit P/N G109465.

1шт.

18

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex head, 1 NS x 2-1/2 inch, grade 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

21

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 7/8 inch

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 22 - 29

1шт.

22

1543025C1

GLAND

- cylinder

1шт.

23

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

24

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

25

1542876C1

SEAL KIT,50.8mm Rod

KIT, SEALS, NSS, Not shown, Order 1543268C1, Incl Ref 26 and 27

1шт.

26

1543001C1

SEAL

- rod, NSS, order 1543268C1 kit below

1шт.

27

1543000C1

SEAL

- buffer, NSS, order 1543268C1 kit below

1шт.

28

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

29

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup, gland O-ring

1шт.

G109465

GASKET KIT

KIT - seal, Includes: Ref. 7 - 9 (P/N G107923), 9A, 11 and 15 - 17, no longer available, order 1543268C1 kit below

1шт.

1543268C1

SEAL KIT

KIT - seal, Includes: Ref. 9A, 15 - 17, 23 - 29 and an instruction sheet

1шт.
