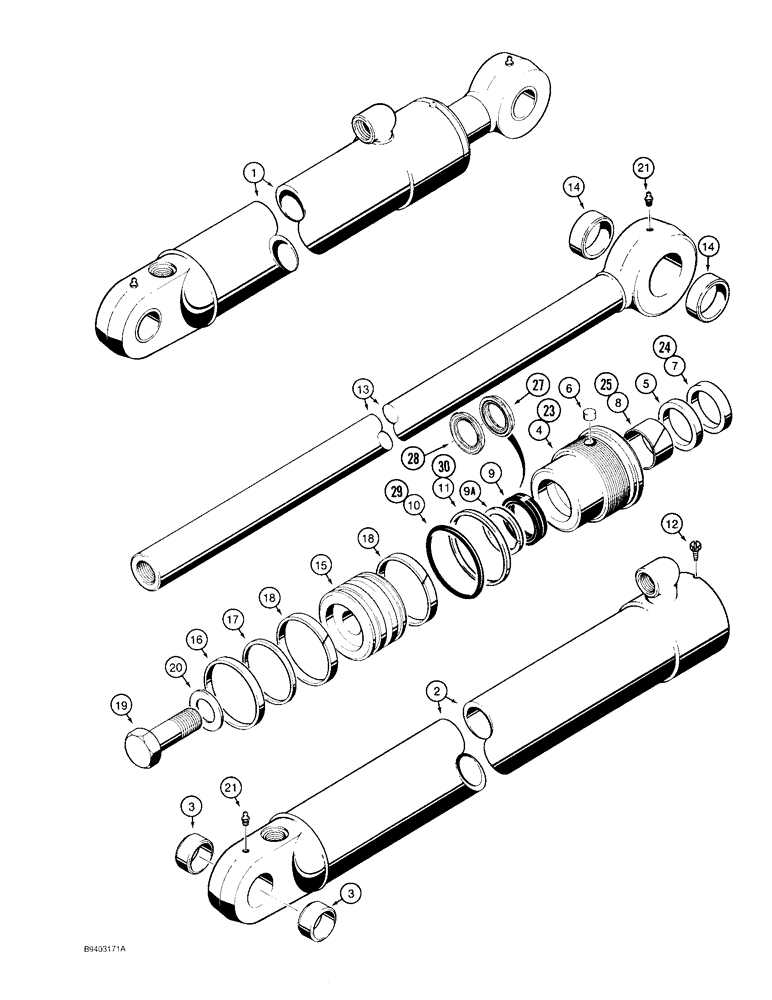

Запчасти Case 480F (8-132) - G102835 BACKHOE BOOM CYLINDER (08) - HYDRAULICS

1

G102835

CYLINDER

ASSEMBLY - 4 inch (102 mm) ID x 38-1/8 inch (968 mm) stroke, backhoe boom, Includes: Ref. 2 - 30

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G109528

TUBE,3.995" ID x 4" DIA x 47.17" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G104936

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11, no longer available, order Ref. 23, 1542976C1 gland and 1543264C1 seal kit below

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

6

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

7

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G109479.

1шт.

8

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N G109479.

1шт.

9

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109479.

1шт.

9

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, service option - severe heat or cold

1шт.

9a

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow, with groove

1шт.

Part of seal kit P/N G109479.

1шт.

10

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G109479.

1шт.

11

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of seal kit P/N G109479.

1шт.

12

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

13

G102842

ROD

ASSEMBLY - piston, 1-3/4 inch (44 mm) diameter, replaces 1978064C1 rod assembly, Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

15

G100690

PISTON

- cylinder

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109479.

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of seal kit P/N G109479.

1шт.

18

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of seal kit P/N G109479.

1шт.

19

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex, 1 National Superfine x 2-1/2 inch, grade 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 23 - 30

1шт.

23

1542976C1

GLAND

- cylinder

1шт.

24

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

25

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

26

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Not shown, Order 1543264C1, Incl Ref 27 and 28

1шт.

27

1542999C1

SEAL

- rod, NSS, order 1543264C1 kit below

1шт.

28

1542998C1

SEALING RING

- buffer, NSS, order 1543264C1 kit below

1шт.

29

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

30

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

G109479

SEAL

KIT - seal, Includes: Ref. 7 - 9 (P/N G107922), 9A - 11 and 16 - 18, no longer available, order 1543264C1 kit below

1шт.

1543264C1

SEAL KIT

KIT - seal, Includes: Ref. 9A, 16 - 18, 24 - 30 and an instruction sheet

1шт.
