Запчасти Case 480F (8-130) - G110395 BACKHOE SWING CYLINDER (08) - HYDRAULICS

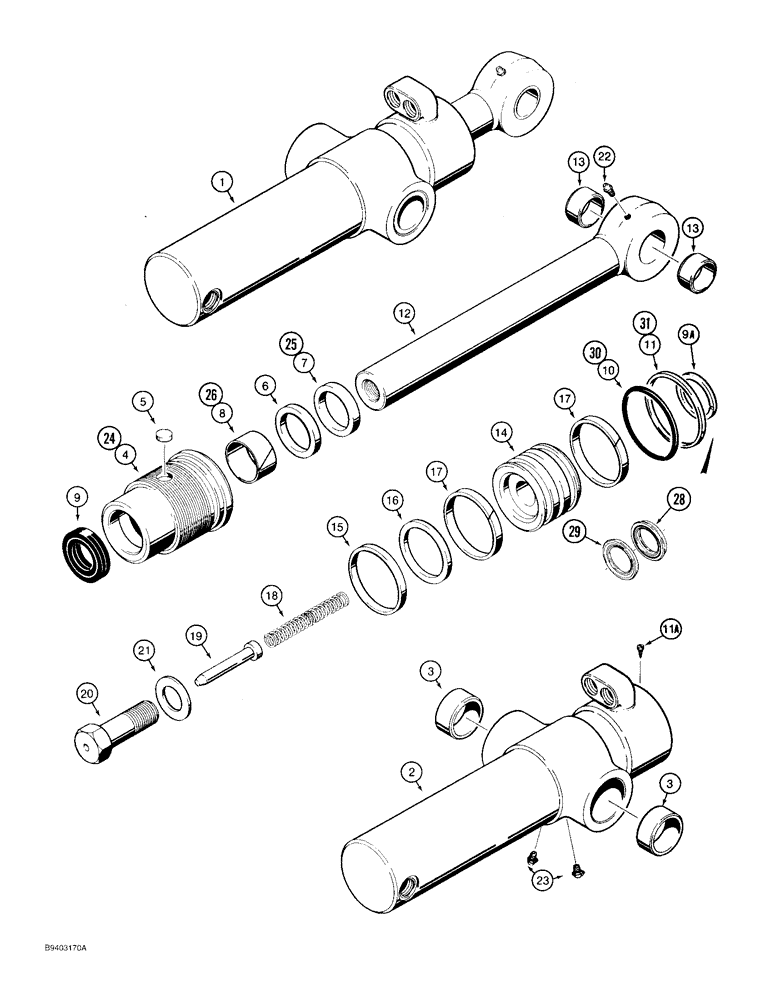

Схема запчастей Case 480F - (8-130) - G110395 BACKHOE SWING CYLINDER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

G110395

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 327.15mm Stroke

ASSEMBLY - 3-1/2 inch (89 mm) ID x 11 inch (279 mm) stroke, swing, Includes: Ref. 2 - 31

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

G104128

TUBE,3.5" DIA x 18.19" L

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- tube, trunnion

2шт.

G104280

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 11, no longer available, order Ref. 24, 1542967C1 gland and 1543254C1 seal kit below

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

7

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G109472.

1шт.

8

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

Part of seal kit P/N G109472.

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G109472.

1шт.

9

G100776

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

9a

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- piston rod, narrow, with groove

1шт.

Part of seal kit P/N G109472.

1шт.

10

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G109472.

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit P/N G109472.

1шт.

11a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

12

1976988C1

ROD

ASSEMBLY - piston, 1-1/2 inch (38 mm) diameter, replaces 1978067C1 rod assembly, Includes: Ref. 13

1шт.

13

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod

2шт.

14

G100700

PISTON

- cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G109472.

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup, piston seal

1шт.

Part of seal kit P/N G109472.

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of seal kit P/N G109472.

1шт.

18

D44554

VALVE SPRING

SPRING - relief

1шт.

19

G100049

PIN

- sliding, spring guide

1шт.

20

D44571

BOLT

BOLT - hex head, 1 NF x 3 inch, grade 8

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

23

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 24 - 31

1шт.

24

1542967C1

GLAND

- cylinder

1шт.

25

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

26

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center

1шт.

27

1542874C1

SEAL KIT,38.1mm Rod

KIT, SEALS, NSS, Not shown, Order 1543254C1, Incl Ref 28 and 29

1шт.

28

1542997C1

SEALING RING

- rod, NSS, order 1543254C1 kit below

1шт.

29

1542996C1

SEAL

- buffer, NSS, order 1543254C1 kit below

1шт.

30

238-5238

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

1шт.

31

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

G109472

SET

KIT - seal, Includes: Ref. 7 - 9 (P/N G107921), 9A - 11 and 15 - 17, no longer available, order 1543254C1 kit below

1шт.

1543254C1

SEAL KIT

KIT - seal, Includes: Ref. 9A, 15 - 17, 25 - 31 and an instruction sheet

1шт.
