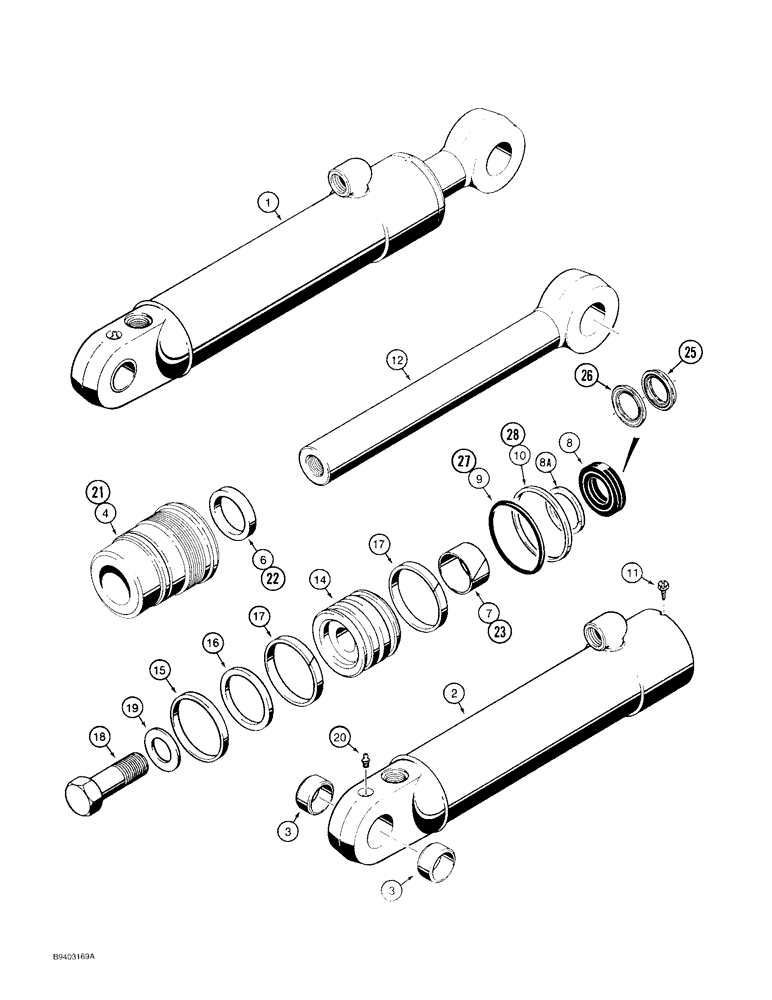

Запчасти Case 480F (8-128) - 1340827C1 BACKHOE STABILIZER CYLINDER (08) - HYDRAULICS

1

1340827C1

CYLINDER

ASSEMBLY - 3-1/2 inch (89 mm) ID x 16-3/8 inch (416 mm) stroke, stabilizer, Includes: Ref. 2 - 28

2шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

2

1340828C1

TUBE,638.1 mm Length

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- tube

2шт.

G110607

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 10, no longer available, order Ref. 21, G110108 gland and 1543266C1 seal kit below

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of seal kit P/N G110621.

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of seal kit P/N G110621.

1шт.

8

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of seal kit P/N G110621.

1шт.

8

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, service option - severe heat or cold

1шт.

8a

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow, with groove

1шт.

Part of seal kit P/N G110621.

1шт.

9

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

Part of seal kit P/N G110621.

1шт.

10

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup, gland O-ring

1шт.

Part of seal kit P/N G110621.

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex slotted, No. 8 NC x 3/8 "

1шт.

12

1340833C1

ROD

ASSEMBLY - piston, 1-3/4 inch (44 mm) diameter

1шт.

14

G100698

PISTON

- cylinder

1шт.

15

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of seal kit P/N G110621.

1шт.

16

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- backup, piston seal

1шт.

Part of seal kit P/N G110621.

1шт.

17

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

Piston

2шт.

Part of seal kit P/N G110621.

1шт.

18

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

- hex head, 1 NS x 2-1/2 inch, grade 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

NSS

NOT SOLD SEPARAT

GLAND ASSEMBLY - cylinder, Includes: Ref. 21 - 28

1шт.

21

G110108

GLAND

- cylinder

1шт.

22

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

23

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

24

1542875C1

SEAL KIT,44.4mm Rod

KIT, SEALS, NSS, Not shown, Order 1543266C1, Incl Ref 25 and 26

1шт.

25

1542999C1

SEAL

- rod, order 1543266C1 seal kit below

1шт.

26

1542998C1

SEALING RING

- buffer, order 1543266C1 seal kit below

1шт.

27

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

28

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup, gland O-ring

1шт.

G110621

SEAL PACKAGE

KIT - seal, Includes: Ref. 6 - 8 (P/N G107922), 8A - 10 and 15 - 17, no longer available, order 1543266C1 kit below

1шт.

1543266C1

SEAL KIT

KIT - seal, Includes: Ref. 15 - 17, 22 - 28 and an instruction sheet

1шт.
