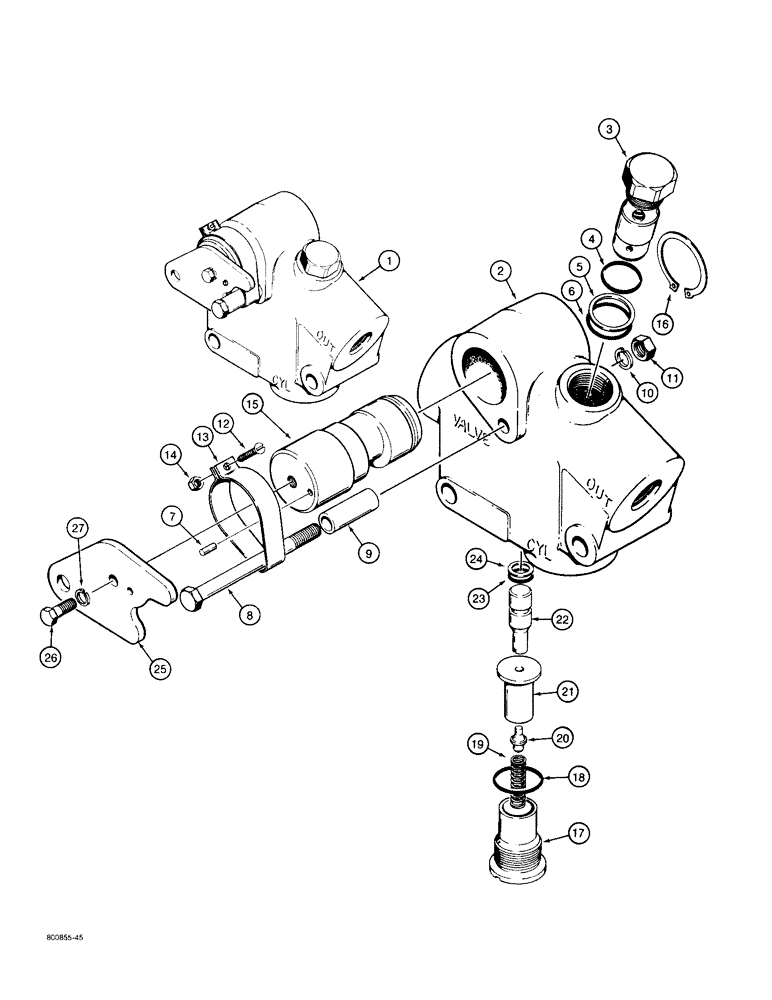

Запчасти Case 480F (8-100) - BOOM LOCK VALVE (08) - HYDRAULICS

1

D88644

VALVE

ASSEMBLY - boom lock, Includes: Ref. 2 - 24

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

3

D56470

VALVE

ASSEMBLY - relief, boom lock valve, Includes: Ref. 4

1шт.

4

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

Relief valve -121, 70 Duro, 1.049" ID x .103" Thk

1шт.

5

D56469

BACK-UP RING

- backup, inner O-ring

1шт.

6

238-5122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

- 1-1/4 ID x 3/32 inch wide

1шт.

7

D56881

PIN

- dowel, handle

1шт.

8

13-558

BOLT,Hex, 5/16" - 18 x 3-5/8", Gr 5

- hex head, 5/16 NC x 3-5/8 inch

1шт.

9

D56460

BUSHING

- spacer

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

12

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

- machine, pan head slotted, No. 6 NC x 3/4 inch

1шт.

13

D56467

CLAMP

- shaft retaining

1шт.

14

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - lock control

1шт.

16

F62020

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

17

D56461

PLUG

- plunger retainer

1шт.

18

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

19

D56462

SPRING

- poppet

1шт.

20

D56464

PLUNGER

POPPET - valve

1шт.

21

D56463

PLUNGER

SEAT - poppet

1шт.

22

N13534

PLUNGER

- valve

1шт.

23

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- 3/8 inch ID

1шт.

24

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

- backup, seal

1шт.

25

D89888

LEVER

- boom lock valve

1шт.

26

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
