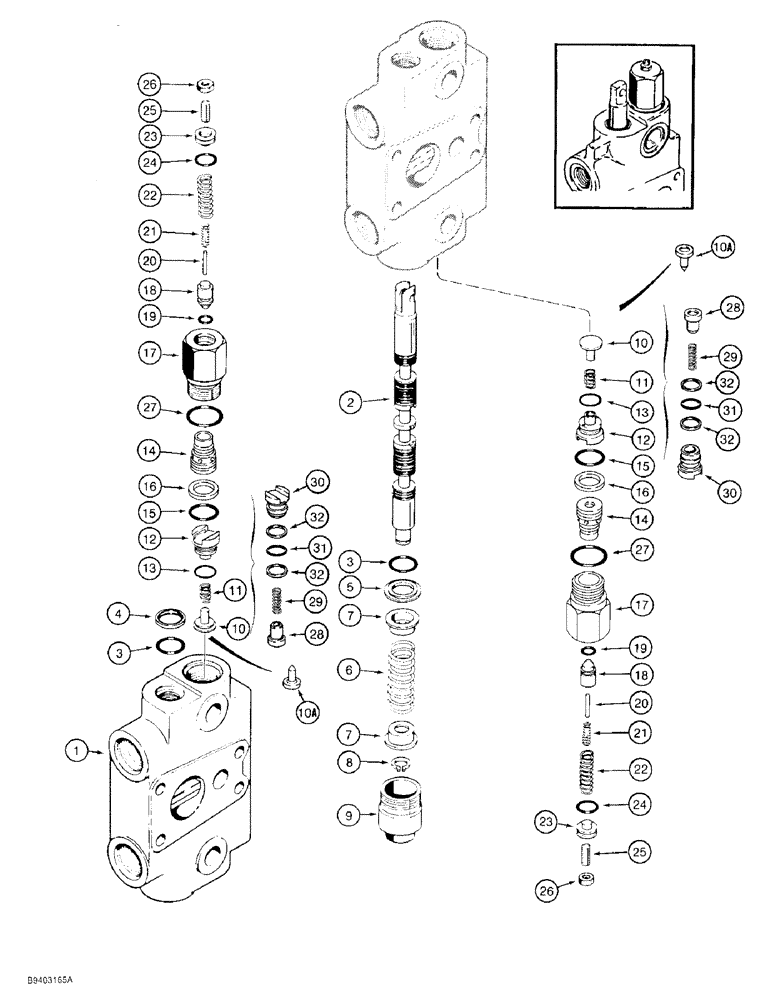

Запчасти Case 480F (8-090) - BACKHOE CONTROL VALVE, DIPPER AND BUCKET SECTION (08) - HYDRAULICS

G109513

HYD VALVE SECTION

SECTION ASSEMBLY - dipper and bucket, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

- body, replaces G108461 O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- spool, replaces A32309 seal

1шт.

Part of seal kit P/N 1346105C1.

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G34463

SPRING

- centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

SEAT - centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

P0033080G

SCREW

- centering spring

1шт.

10

G33081

VALVE POPPET

POPPET - flat poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 28 - 32

2шт.

10a

1343788C1

VALVE POPPET

POPPET - pointed poppet pin, load check, no longer used, order 1346219C2 valve, Ref. 28 - 32

2шт.

11

G33573

SPRING

- load check, no longer used, order 1345219C2 valve, Ref. 28 - 32

2шт.

12

G33084

PLUG

- load check, no longer used, order 1345219C2 valve, Ref. 28 - 32

2шт.

13

G33686

O-RING,0.07" Thk x 0.61" ID

- plug, no longer used, order 1345219C2 valve, Ref. 28 - 32

2шт.

Part of seal kit P/N 1346105C1.

1шт.

G107786

VALVE, PRESSURE RELI

VALVE ASSEMBLY - circuit relief, used in production only, order G109449 circuit relief valve kit below, Includes: Ref. 14 - 27

2шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.

14

NSS

NOT SOLD SEPARAT

SEAT - circuit relief valve

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Seat -018, 90 Duro, .739" ID x .070" Thk

1шт.

Part of seal kit P/N 1346105C1.

1шт.

16

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, small o-ring

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

18

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

20

NSS

NOT SOLD SEPARAT

PIN - relief stop

1шт.

21

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, inner

1шт.

22

NSS

NOT SOLD SEPARAT

SPRING - circuit relief valve, outer

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON - circuit relief valve

1шт.

24

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

25

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

SCREW - set, hex socket, 5/16 NF x 1 inch, oval point

1шт.

26

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide, large, body

1шт.

Part of seal kit P/N 1346105C1.

1шт.

1346219C2

PACKAGE

VALVE ASSEMBLY - load check, hollow poppet pin, Includes: Ref. 28 - 32

2шт.

28

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

POPPET - hollow poppet pin with orifice, replaces flat and pointed poppets

1шт.

29

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

- load check valve

1шт.

30

1343708C1

PLUG

- load check valve

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

Part of seal kit P/N 1346105C1.

1шт.

32

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

- backup, plug O-ring

2шт.

Part of seal kit P/N 1346105C1.

1шт.

1346105C1

SEAL KIT

KIT - seal, Includes: Ref. 3, 4, 13, 15, 27, 31 and 32, plus additional O-rings not required for this applicaton

1шт.

G109449

KIT

- circuit relief valve, service for G107786, includes G109447 relief valve assembly (Ref. 14 - 27) and an instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not preset for this application. Adjust the setting according to the instructions sent with the repair valve and according to the service manual.

1шт.
