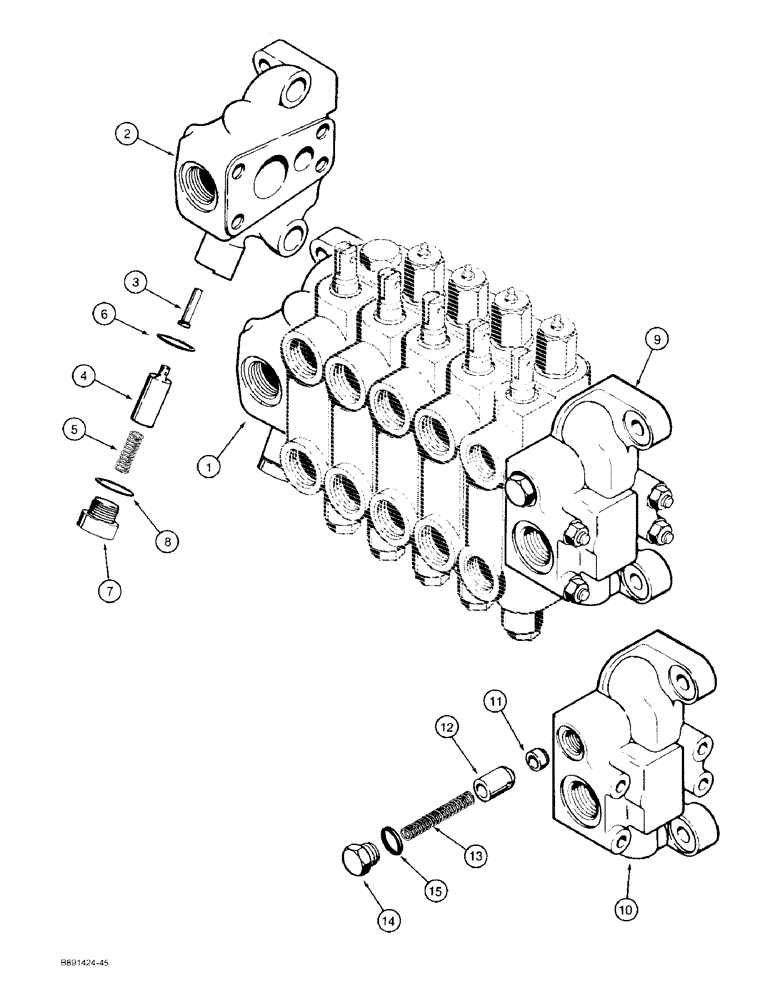

Запчасти Case 480F (8-088) - BACKHOE CONTROL VALVE, OUTLET SECTION, INLET SECTION (08) - HYDRAULICS

1

G33108

MANIFOLD

SECTION ASSEMBLY - outlet, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

MANIFOLD - section body

1шт.

3

G33110

PISTON

- regeneration sensing

1шт.

4

G34586

SPOOL,22mm OD x 59.87mm L

- regeneration

1шт.

5

G33112

SPRING

- regeneration spool

1шт.

6

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Internal -118, 70 Duro, .862" ID x .103" Thk

1шт.

7

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

- hex socket, 1-3/16-12 inch O-ring boss, Includes Ref 8

1шт.

8

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

9

G33102

MANIFOLD

SECTION ASSEMBLY - inlet, Includes: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

MANIFOLD - section body

1шт.

11

G33104

SEAT

- check valve poppet

1шт.

12

G33105

VALVE POPPET

POPPET - check valve

1шт.

13

1542669C1

SPRING

- check valve, replaces G33106 spring

1шт.

14

A39586

PLUG

- check valve

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.
