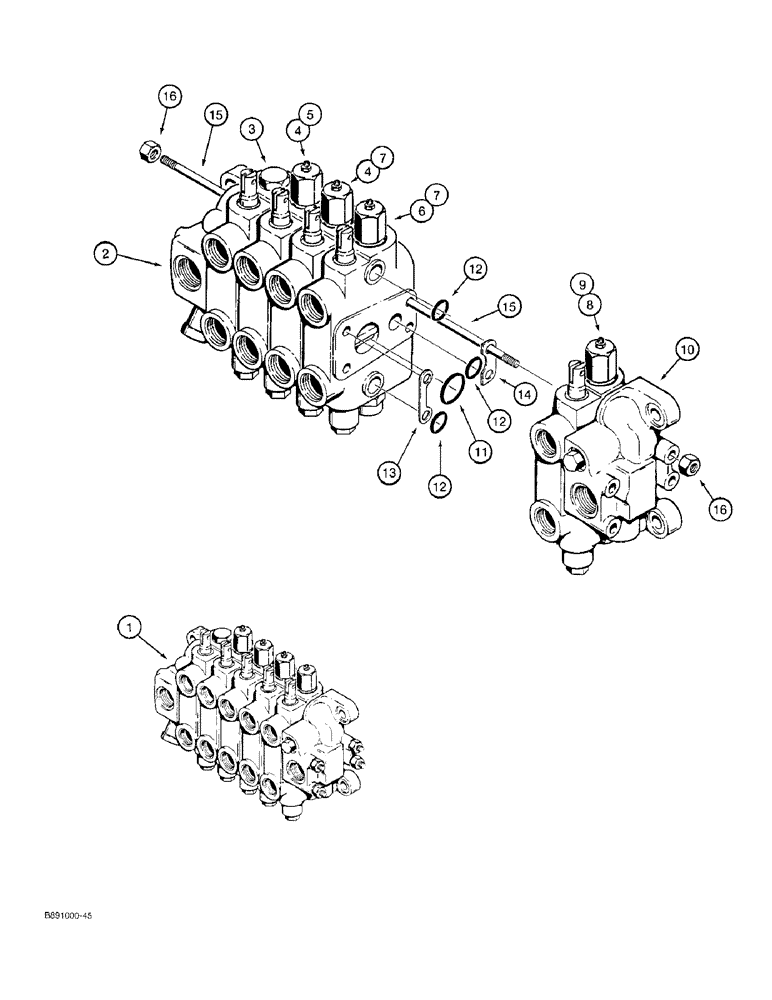

Запчасти Case 480F (8-086) - BACKHOE CONTROL VALVES, MODELS WITH EXTENDABLE DIPPER (08) - HYDRAULICS

1

G109538

VALVE

ASSEMBLY - backhoe control, foot swing models, with extendable dipper, Includes: Ref. 2 - 16

1шт.

1

G105282

VALVE

ASSEMBLY - backhoe control, hand swing models, with extendable dipper, Includes: Ref. 2 - 16

1шт.

2

G33108

MANIFOLD

SECTION ASSEMBLY - outlet, parts list Figure 8-088

1шт.

3

G103404

SEGMENT

SECTION ASSEMBLY - extendable dipper, parts list Figure 8-098

1шт.

4

G109513

HYD VALVE SECTION

SECTION ASSEMBLY - dipper and bucket, parts list Figure 8-090 used with G105282 control valve assembly

2шт.

5

G109514

KNIFE SECTION

SECTION ASSEMBLY - boom, parts list Figure 8-094, used with G109538 control valve assembly

1шт.

6

G109522

VALVE

SECTION ASSEMBLY - swing, parts list Figure 8-092, used with G105282 control valve assembly

1шт.

7

G109513

HYD VALVE SECTION

SECTION ASSEMBLY - dipper and bucket, parts list Figure 8-090 used with G109538 control valve assembly

2шт.

8

G109514

KNIFE SECTION

SECTION ASSEMBLY - boom, parts list Figure 8-094 used with G105282 control valve assembly

1шт.

9

G109522

VALVE

SECTION ASSEMBLY - swing, parts list Figure 8-092 used with G109538 control valve assembly

1шт.

10

G33102

MANIFOLD

SECTION ASSEMBLY - inlet, parts list Figure 8-088

1шт.

11

238-6127

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

Section ports -127, 90 Duro, 1.424" ID x .103" Thk

6шт.

12

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Section ports -119, 90 Duro, .924" ID x .103" Thk

18шт.

13

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

6шт.

14

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

6шт.

15

G34675

TIE-ROD

STUD - tie, 3/8 NC x 15-3/4 inch

4шт.

16

425-106

NUT,3/8"-16, Cl 5

8шт.
