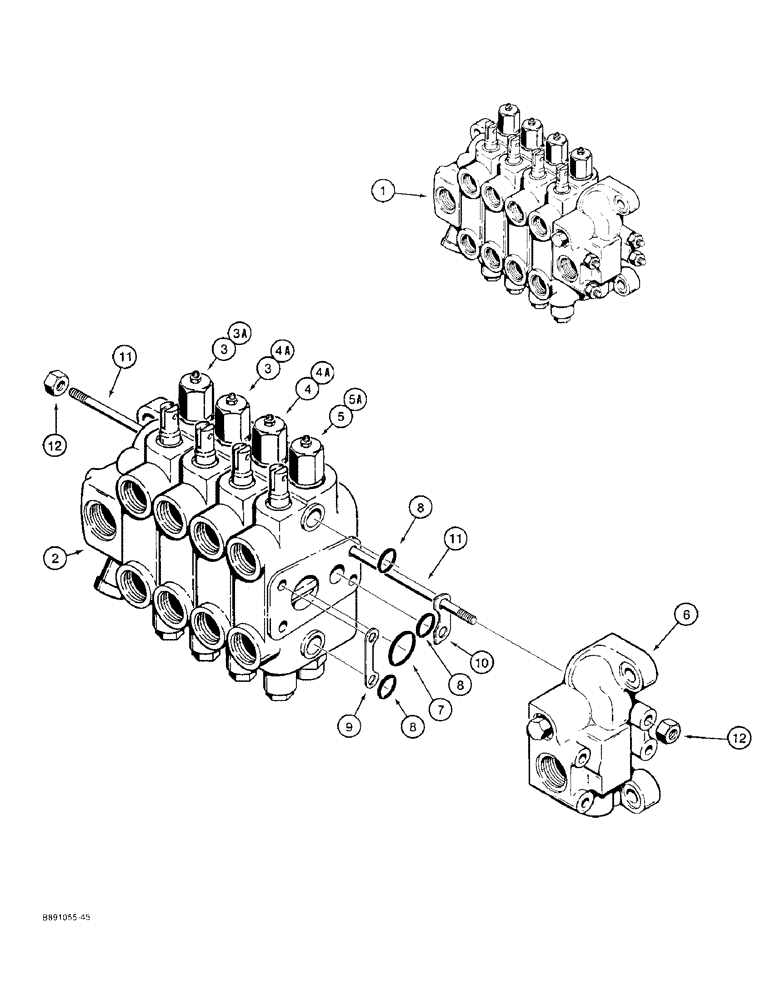

Запчасти Case 480F (8-084) - BACKHOE CONTROL VALVES, MODELS WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
G109542
VALVE
ASSEMBLY - backhoe control, foot swing models, without extendable dipper, Includes: Ref. 2 - 12
1шт.
1
G109535
VALVE
ASSEMBLY - backhoe control, hand swing models, without extendable dipper, Includes: Ref. 2 - 12
1шт.
2
G33108
MANIFOLD
SECTION ASSEMBLY - outlet, parts list Figure 8-088
1шт.
3
G109513
HYD VALVE SECTION
SECTION ASSEMBLY - dipper and bucket, parts list Figure 8-090, used with G109535 control valve assembly
2шт.
3a
G109514
KNIFE SECTION
SECTION ASSEMBLY - boom, parts list Figure 8-094, used with G109542 control valve assembly
1шт.
4
G109522
VALVE
SECTION ASSEMBLY - swing, parts list Figure 8-092, used with G109535 control valve assembly
1шт.
4a
G109513
HYD VALVE SECTION
SECTION ASSEMBLY - dipper and bucket, parts list Figure 8-090, used with G109542 control valve assembly
2шт.
5
G109514
KNIFE SECTION
SECTION ASSEMBLY - boom, parts list Figure 8-094, used with G109535 control valve assembly
1шт.
5a
G109522
VALVE
SECTION ASSEMBLY - swing, parts list Figure 8-092, used with G109542 control valve assembly
1шт.
6
G33102
MANIFOLD
SECTION ASSEMBLY - inlet, parts list Figure 8-088
1шт.
7
238-6127
O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro
Section ports -127, 90 Duro, 1.424" ID x .103" Thk
5шт.
8
238-6119
O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro
Section ports -119, 90 Duro, .924" ID x .103" Thk
15шт.
9
G107251
SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk
Section, Port side of control valve 0.051mm Thk
5шт.
10
G33965
SHIM,22.86mm OD x 0.06mm Thk
Section, Non-port side of control valve 0.051mm Thk
5шт.
11
G34942
TIE-ROD
STUD - tie, 3/8 NC x 13-3/4 inch
4шт.
12
425-106
NUT,3/8"-16, Cl 5
8шт.
Выбрано товаров: 16
