Запчасти Case 480F (8-042) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

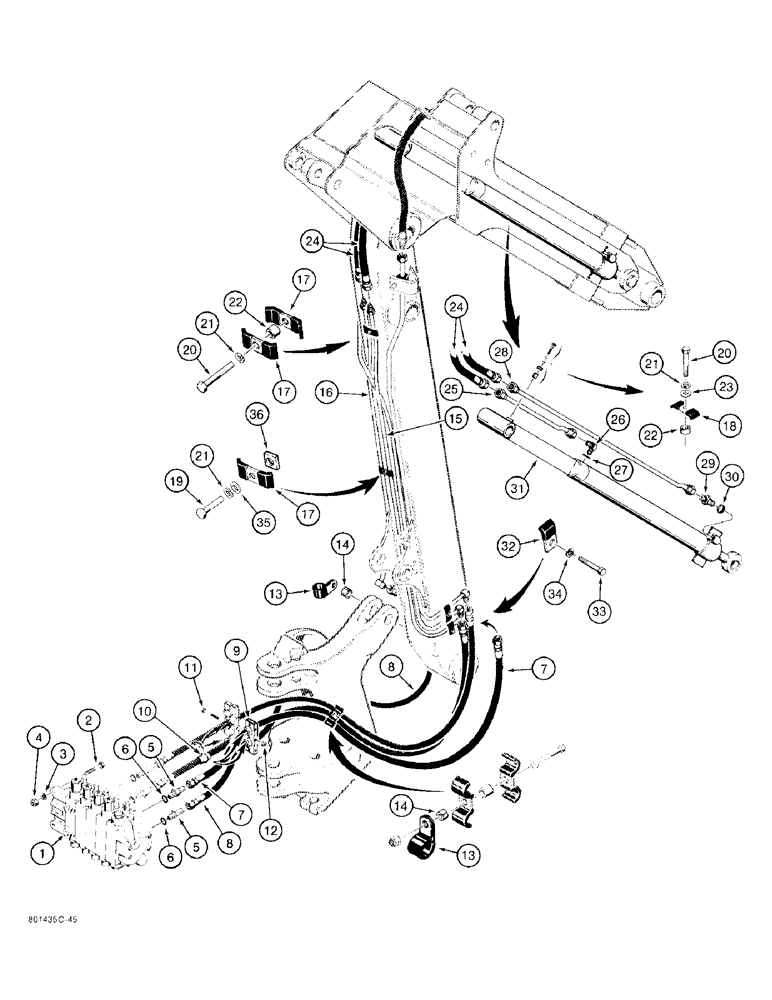

Схема запчастей Case 480F - (8-042) - BACKHOE EXTENDABLE DIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see Figure 8-086

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

5

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 6

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

7

D99789

HOSE

- 54 inch (1372 mm) long, right-hand, from upper valve port

1шт.

8

D99788

HOSE

- 66 inch (1676 mm) long, left-hand, from lower valve port

1шт.

9

D99844

CLAMP

- hose, includes two halves, for larger clamp on dipper and bucket hoses, see Figures 8-026 through 8-038, item 9

1шт.

10

D99822

BUSHING

GROMMET - hose

2шт.

11

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

3шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

13

R21385

CLAMP

- hose, swing tower and boom side

3шт.

14

R46103

SPACER

- clamp, swing tower only, see Figure 8-038 items 13 through 17 for related clamps and hardware

2шт.

15

D99208

HYD TUBE,0.625" OD

TUBE - on boom, right-hand

1шт.

16

D99210

HYD TUBE,15.88 mm OD x 1197, 104 mm L

TUBE - on boom, left-hand

1шт.

17

A13622

PLATE, LOCKING

CLAMP - tube

3шт.

18

D42504

CLAMP

- tube

1шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

20

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

21

492-11038

LOCK WASHER,3/8"

3шт.

22

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- tube clamp, replaces D76209

2шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

24

D52565

HOSE

- 43 inch (1067 mm) long, to dipper extension cylinder

2шт.

25

D52572

TUBE

- to closed end of dipper extension cylinder

1шт.

26

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

28

D54362

TUBE

- to rod end of dipper extension cylinder

1шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

31

G101203

CYLINDER

ASSEMBLY - dipper extension, parts list Figure 8-142

1шт.

32

D99202

CLAMP

- hose

1шт.

33

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

34

492-11038

LOCK WASHER,3/8"

1шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

36

224-2206

SQUARE NUT,Sq, 3/8"-16

- square, 3/8 inch NC

1шт.
