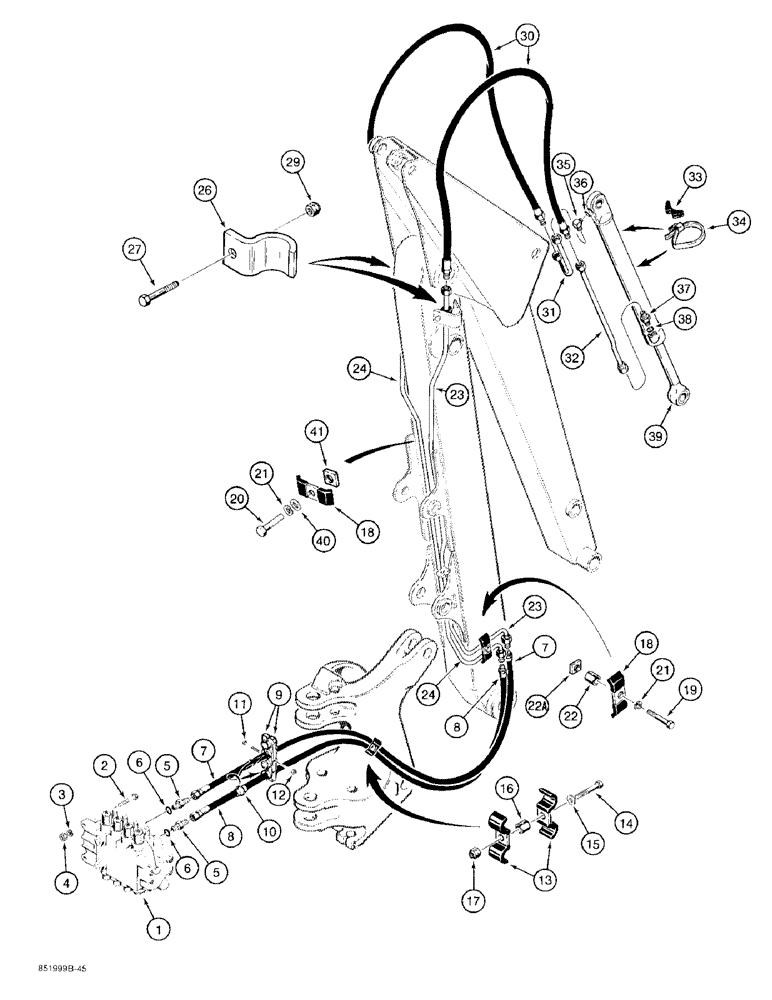

Запчасти Case 480F (8-034) - BACKHOE BUCKET CYLINDER HYDRAULIC CIRCUIT, MODELS W/O EXTENDABLE DIPPER 480F 14 BACKHOE MODELS ONLY (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see Figure 8-084

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 6

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

7

D121618

HOSE ASSY.

HOSE - 51-3/16 inch (1300 mm) long, from upper valve port

1шт.

D121618 hose (item 7) and L53351 hose (item 8) are switched around at hydraulic tubes (items 23 and 24) on models with hand swing.

1шт.

8

L53351

HOSE

- 45 inch (1143 mm) long, from lower valve port

1шт.

D121618 hose (item 7) and L53351 hose (item 8) are switched around at hydraulic tubes (items 23 and 24) on models with hand swing.

1шт.

9

D99151

CLAMP

- hose, includes two halves

1шт.

10

D99822

BUSHING

GROMMET - hose

2шт.

11

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

3шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

13

D42833

CLAMP

- hose, at swing tower

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

16

R46103

SPACER

- clamp

1шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

18

A13622

PLATE, LOCKING

CLAMP - tube, at boom

2шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

- tube clamp, side of boom, replaces D76209

1шт.

22a

224-2206

SQUARE NUT,Sq, 3/8"-16

- square, 3/8 inch NC

1шт.

23

D133451

TUBE ASSY.

TUBE - right-hand

1шт.

24

D128840

TUBE ASSY.

TUBE - left-hand

1шт.

26

D143430

CLAMP

- tube

2шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

29

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

30

D132937

HOSE ASSY.

HOSE - 38-7/16 inch (975 mm) long, to bucket cylinder

2шт.

31

D121620

TUBE

- to closed end of bucket cylinder

1шт.

32

D121622

TUBE

- to rod end of bucket cylinder

1шт.

33

D38648

BLOCK

SPACER - tube clamp

2шт.

34

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

2шт.

35

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 36

1шт.

36

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

37

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 38

1шт.

38

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

39

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, parts list Figures 8-138 and 8-140

1шт.

40

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

41

224-2206

SQUARE NUT,Sq, 3/8"-16

- square, 3/8 inch NC

1шт.
