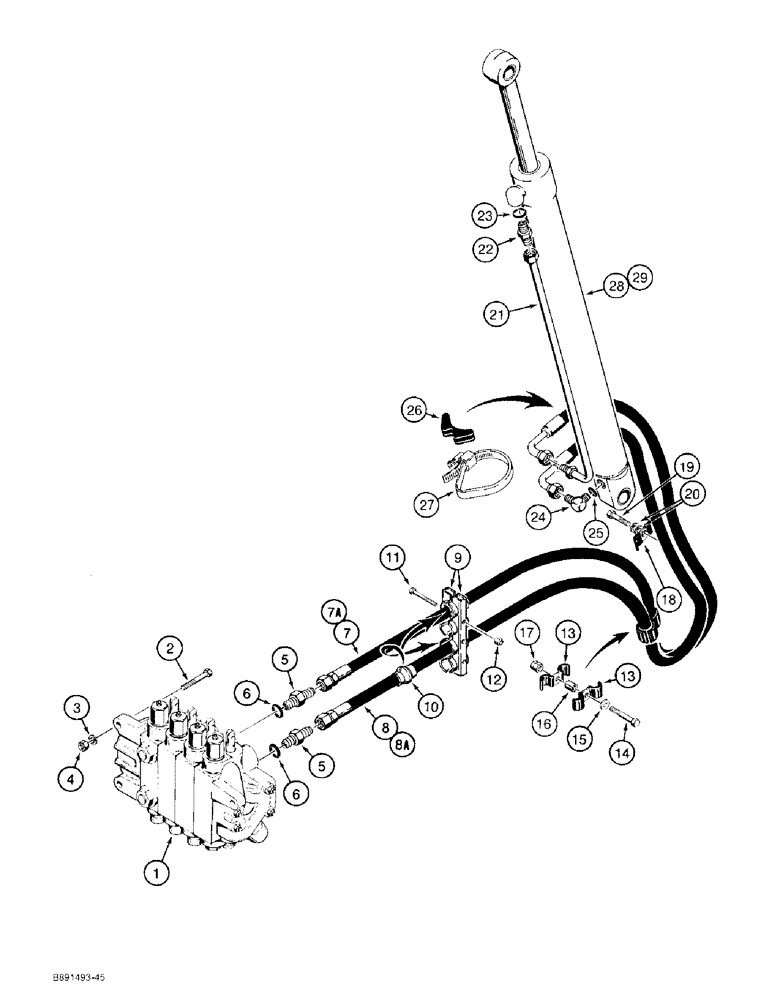

Запчасти Case 480F (8-026) - BACKHOE DIPPER CYLINDER HYDRAULIC CIRCUIT, 12 FOOT AND 14 FOOT BACKHOES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see Figures 8-084 or 8-086

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 6

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

7

D99159

HOSE

- 72-1/4 inch (1835 mm) long, from upper valve port, used on 12 foot backhoe models, if used

1шт.

7a

D129637

HOSE ASSY.

HOSE - 87-5/8 inch (2225 mm) long, from upper valve port, used on 14 foot backhoe models, if used

1шт.

8

D99158

HOSE

- 67-1/4 inch (1708 mm) long, from lower valve port, used on 12 foot backhoe models, if used

1шт.

8a

H432609

HOSE

- 82-11/16 inch (2100 mm) long, from lower valve port, used on 14 foot backhoe models, if used

1шт.

9

D99151

CLAMP

- hose, includes two halves

1шт.

10

D99822

BUSHING

GROMMET - hose

2шт.

11

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

3шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

13

D42833

CLAMP

- hose, at swing tower

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

16

R46103

SPACER

- clamp

1шт.

17

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

18

D40236

CLAMP

- hose, left-hand side of boom

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

D144268

TUBE

- to rod end of dipper cylinder

1шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

26

D38648

BLOCK

SPACER - tube clamp

1шт.

27

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, HOSE, , Adj. #72, 4.06/5.00 Type F Worm

1шт.

28

G104844

CYLINDER

ASSEMBLY - dipper, used on 12 foot backhoe models, parts list Figure 8-134

1шт.

29

1980159C1

CYLINDER BLOCK

CYLINDER ASSEMBLY - dipper, used on 14 foot backhoe models, parts list Figure 8-136, not shown

1шт.
