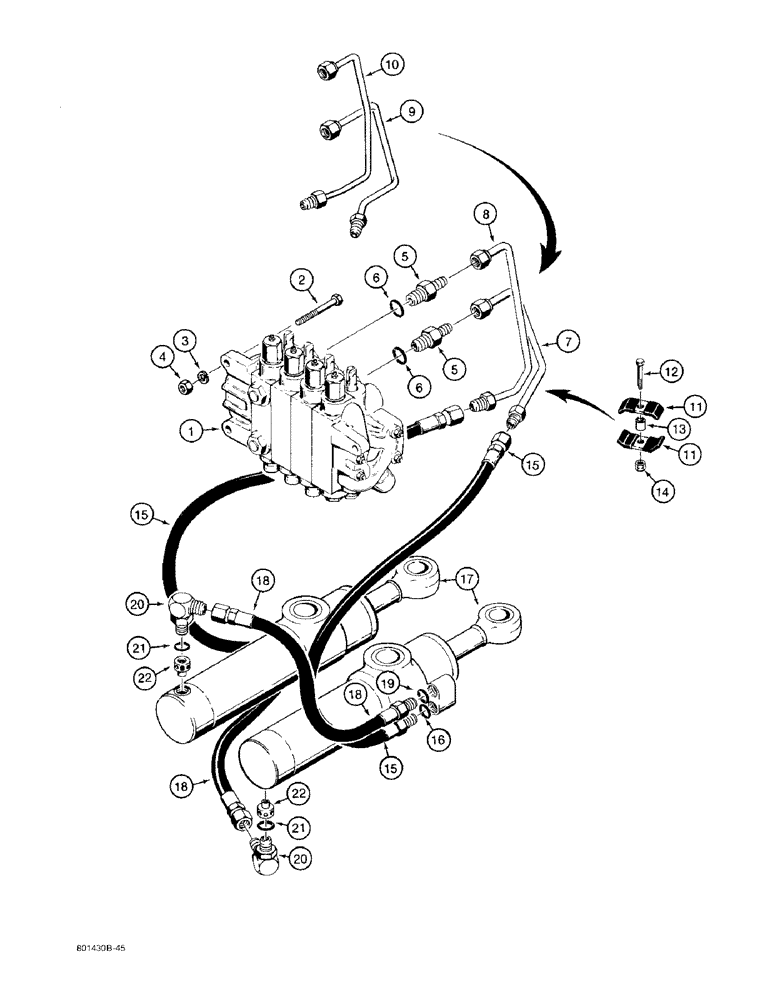

Запчасти Case 480F (8-022) - BACKHOE SWING CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see Figures 8-084 or 8-086

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

5

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring, Includes: Ref. 6

2шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

7

D99066

HYD TUBE,12.7 mm OD x 191, 80 mm L

TUBE - lower port to right-hand swing cylinder, used on models with foot swing

1шт.

8

D99068

HYD TUBE,0.5" OD

TUBE - upper port to left-hand swing cylinder, used on models with foot swing

1шт.

9

D122130

TUBE ASSY.

TUBE - lower port to right-hand swing cylinder, used on models with hand swing

1шт.

10

D122132

TUBE ASSY.

TUBE - upper port to left-hand swing cylinder, used on models with hand swing

1шт.

11

D42504

CLAMP

- tube

2шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

13

D33551

BUSHING

SPACER - tube clamp

1шт.

14

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

15

D37219

HOSE

- 30 inch (762 mm) long, to cylinders, Includes: Ref. 16

2шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

G110395

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 327.15mm Stroke

ASSEMBLY - swing, parts list Figure 8-130

2шт.

18

D39140

HOSE,12.7mm ID x 609.6mm L, SAE 100R2

- 24 inch (610 mm) long, swing cylinders, Includes: Ref. 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, Includes: Ref. 21

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

D121529

STOP

RESTRICTOR - flow control

2шт.
