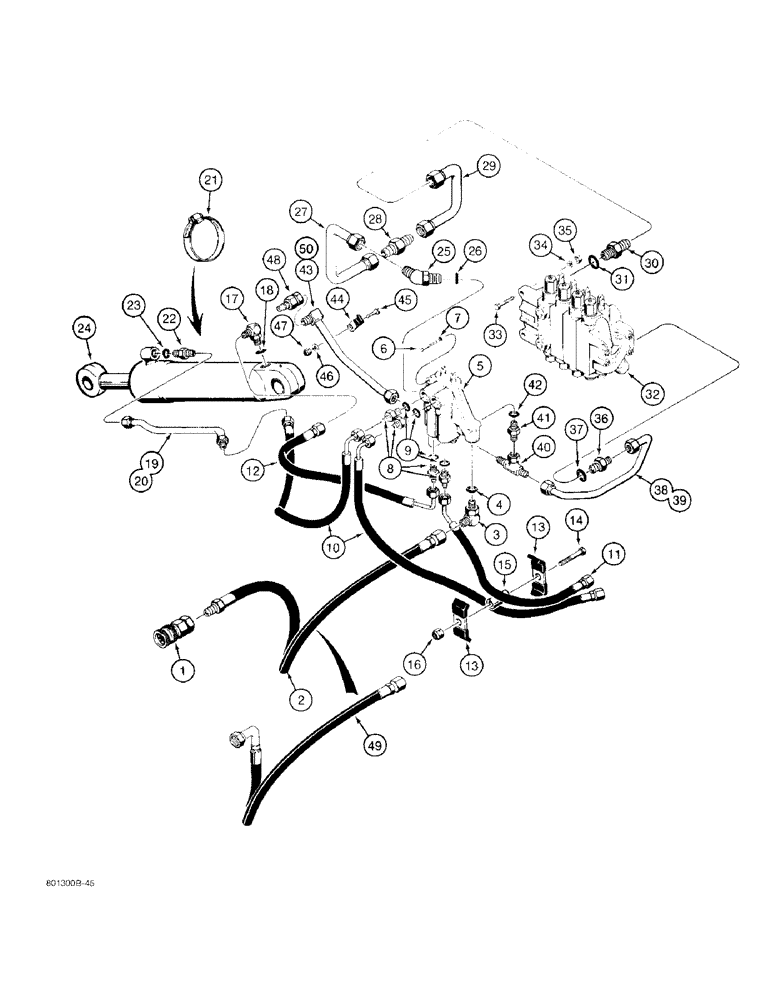

Запчасти Case 480F (8-018) - BACKHOE STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D52800

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - quick disconnect, hydraulic, female, parts list Figure 8-120, if used

1шт.

2

R36060

HOSE

- 45 inch (1143 mm) long, to stabilizer valve, models with quick disconnect

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - stabilizer control, parts list Figure 8-082

1шт.

6

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 9

4шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

D99161

HOSE

- 35 inch (889 mm) long, to rod end of cylinders

2шт.

11

D99767

HOSE

- 27 inch (686 mm) long, to closed end of right-hand cylinder

1шт.

12

D99160

HOSE

- 32 inch (813 mm) long, to closed end of left-hand cylinder

1шт.

13

D40236

CLAMP

- hose

4шт.

14

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch

2шт.

15

D36040

BUSHING

SPACER - hose clamp

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

2шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 18

2шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

D75321

HYD TUBE,0.625" OD x 1.42, 16.4" L

TUBE - right-hand cylinder

1шт.

20

D75341

HYD TUBE,0.625" OD x 1.42, 16.4" L

TUBE - left-hand cylinder

1шт.

21

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

2шт.

22

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

24

1340827C1

CYLINDER

ASSEMBLY - stabilizer, parts list Figure 8-128

2шт.

25

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, 1-1/16-12 inch flare x adj O-ring boss, Includes: Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

27

D99889

HYD TUBE,19.05 mm OD x 185, 103 mm L

TUBE - from stabilizer control valve

1шт.

28

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - straight, 1-1/16-12 inch flare

1шт.

29

D99888

HYD TUBE,0.75" OD

TUBE - to backhoe control valve

1шт.

30

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring, Incl. Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch

1шт.

32

REF

INSTRUCTION

VALVE ASSEMBLY - backhoe control, for correct assembly and components, see Figures 8-084 or 8-086

1шт.

33

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

35

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

36

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring, backhoe control valve inlet port, Incl. Ref. 37

1шт.

37

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 1/8 inch

1шт.

38

D99125

HYD TUBE,0.75" OD

TUBE - backhoe control valve return, models without extendable dipper

1шт.

39

D99057

HYD TUBE,0.75" OD

TUBE - backhoe control valve return, models with extendable dipper

1шт.

40

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- 1-1/16-12 inch swiv str thread branch x flare x flare, return tubes, not used with hydraulic boom lock, see Figure 8-046 for boom lock hydraulic lines

1шт.

41

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring, Includes: Ref. 42

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

43

D99061

HYD TUBE,19.05 mm OD x 275.1, 37.3 mm L

TUBE - return to tractor, models with quick disconnect

1шт.

44

T50103

CLAMP

- tube

1шт.

45

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

46

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

47

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

1шт.

48

D52694

QUICK MALE COUPLING

COUPLING ASSEMBLY - quick disconnect, male, hydraulic, parts list Figure 8-120, if used

1шт.

49

D144249

HOSE ASSY.

HOSE - 1000 mm long, to stabilizer valve, models without quick disconnect

1шт.

50

D144253

TUBE

- return to tractor, models without quick disconnect

1шт.
