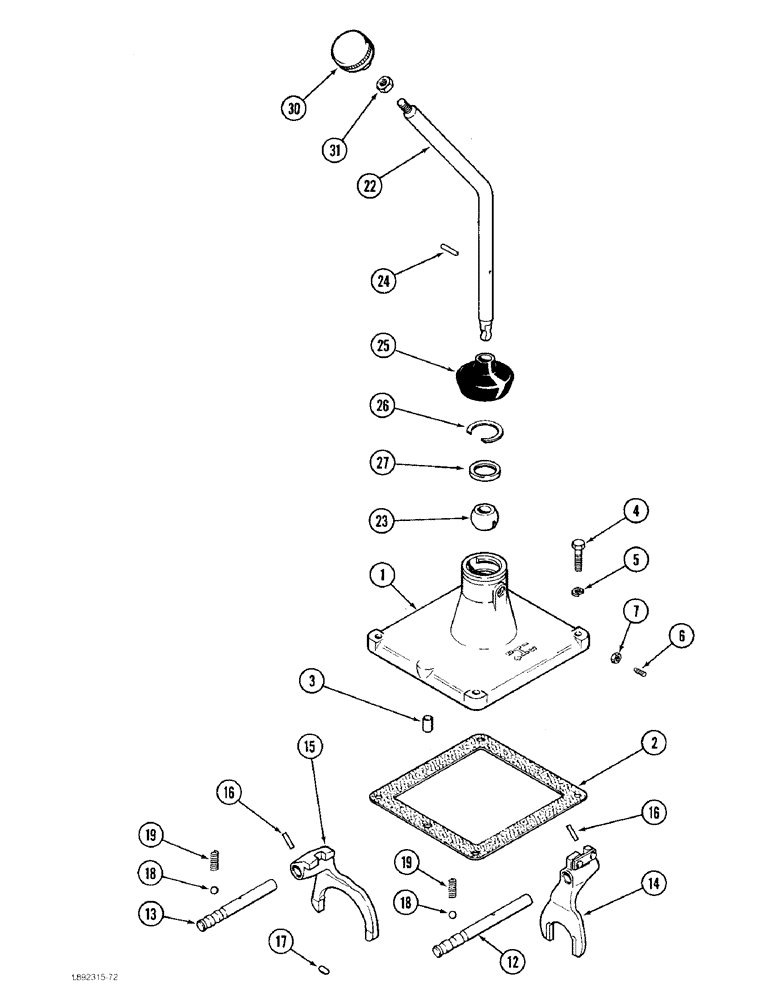

Запчасти Case 480F (6-50) - TRANSAXLE, SHIFTER MECHANISM (06) - POWER TRAIN

1

A138312

COVER

- shift control

1шт.

2

1981241C1

GASKET,0.79mm Thk

- cover to transmission housing

1шт.

3

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

1шт.

4

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

5

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

G15468

SET SCREW,5/16" - 18 x 3/4"

- set, 5/16 inch NC

1шт.

7

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

12

1342602C1

RAIL ASSY.

RAIL - shifter, first and second gear

1шт.

13

1342603C1

RAIL

- shifter, third and fourth gear

1шт.

14

A51964

FORK

ASSEMBLY - shift, first and second gear

1шт.

15

A150726

FORK

- shifter, third and fourth gear

1шт.

16

138-2009

PIN,3/16" x 1", Coiled

2шт.

17

A29060

PLUG

- interlock, shifter rails

1шт.

18

211-211

BALL,13/32" Dia

- detent, 13/32 inch diameter

2шт.

19

G47039

SPRING

- tension, detent ball

2шт.

22

REF

INSTRUCTION

LEVER ASSEMBLY - shift, transmission (See Figure 6-42), Includes: Ref. 23 and 24

1шт.

23

REF

INSTRUCTION

BALL - lever (See Page 6-43)

1шт.

24

REF

INSTRUCTION

PIN - groove, lever ball (See Figure 6-42)

1шт.

25

REF

INSTRUCTION

CAP - dust (See Figure 6-42)

1шт.

26

REF

INSTRUCTION

RING - snap (See Page 6-43)

1шт.

27

REF

INSTRUCTION

SEAT - lever, shift (See Page 6-43)

1шт.

30

REF

INSTRUCTION

KNOB - lever, shift (See Figure 6-42)

1шт.

31

REF

INSTRUCTION

NUT - hex jam, 1/2 inch NC (See Figure 6-42)

1шт.
