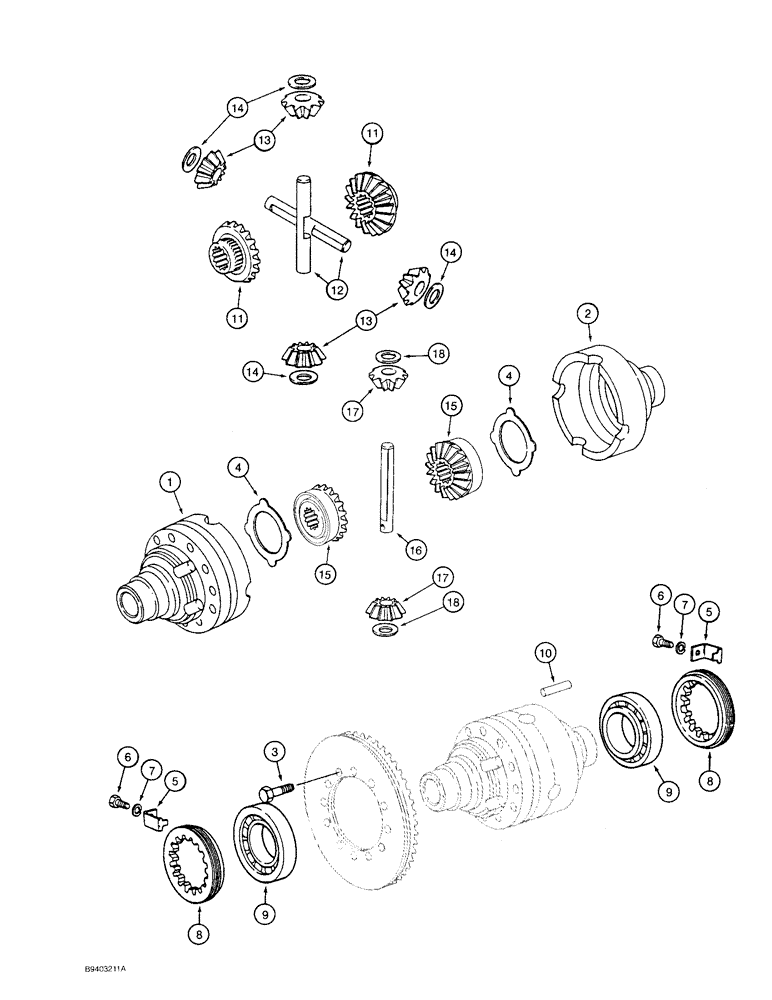

Запчасти Case 480F (6-36) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

D127440

AXLE

ASSEMBLY - front drive, Carraro 710 No. 118562, replaced by 109935A1, parts list Figures 6-28 - 6-38, Includes: Ref. 1 - 14 on this figure

1шт.

109935A1

AXLE

ASSEMBLY - front drive, Carraro 710 No. 126809, parts list Figures 5-06 and 6-28 - 6-38, order components Ref. 1 - 10 and 15 - 18 on this figure

1шт.

D149792 is Carraro number 126809. It is a component of production axle P/N 109935A1, which includes the D149792 axle, plus steering cylinders and plumbing. The P/N 109935A1 is Carraro number 128752.

1шт.

109686A1

HOUSING ASSY.

CASE ASSEMBLY - self-locking differential, was N13508, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm, class 10.9

12шт.

4

1967003C1

THRUST WASHER

SEAL - differential case

2шт.

5

1966153C1

LOCKING PLATE

BRACKET - lock, was K261869

2шт.

6

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

7

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

8

1966559C1

NUT

RING, LOCKING

2шт.

9

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.

10

K395086

PIN

- dowel, if used

1шт.

11

N13617

GEAR

- side, differential, D127440 axle only - carraro 710 no. 118562

2шт.

12

N13507

PIN

SHAFT - pinion gear, D127440 axle only - carraro 710 no. 118562

2шт.

13

K395076

GEAR

- pinion, differential, no longer available, order K262507 gear, 1349056C1 housing and 1349057C1 gear, D127440 axle only - carraro 710 no. 118562

4шт.

If dealer needs ref. # 13, order 231987a1 which CONSISTS OF : 4 OF 115370 WASHER (K395075) 2 OF 116369 SHAFT (N13507) 4 OF 120786 DIFF GEAR (N14408) 2 OF 125991 SIDE PINION (1349057C1)

1шт.

14

K395075

THRUST WASHER

WASHER, THRUST, D127440 axle only - Carraro 710 no. 118562

4шт.

15

N14407

GEAR

- side, differential, 109935A1 axle only - carraro 710 no. 126809

2шт.

16

K395087

SHAFT

- Pinion gear, 109935A1 axle only - Carraro 710 no. 126809

1шт.

17

N14408

SUN GEAR

GEAR - pinion, differential, 109935A1 axle only - carraro 710 no. 126809

2шт.

18

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear, 109935A1 axle only - Carraro 710 no. 126809

2шт.
