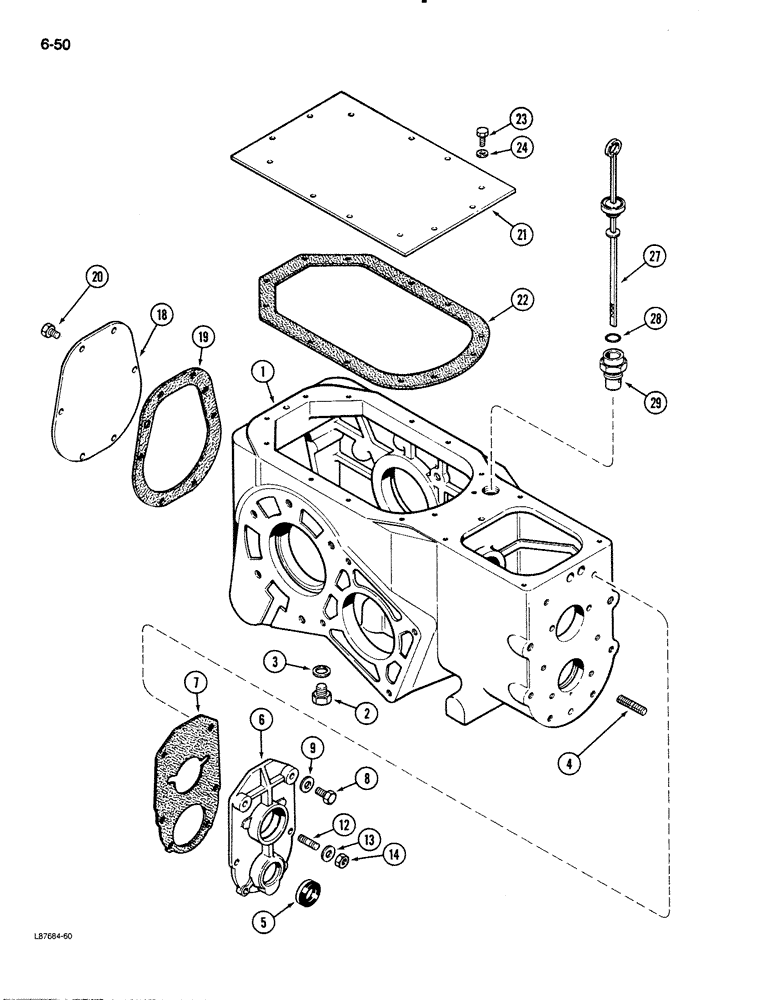

Запчасти Case 480E LL (6-50) - TRANSAXLE TRANSMISSION HOUSING, 2 WHEEL DRIVE (06) - POWER TRAIN

1

A157659

HOUSING

HOUSING - transmission (Uses 5/8 inch rear axle housing bolts)

1шт.

1

A182760

HOUSING

HOUSING - transmission (Uses 3/4 inch rear axle housing bolts)

1шт.

2

A140222

PLUG

PLUG - drain, transmission housing

1шт.

3

A58608

GASKET

GASKET - drain plug

1шт.

4

A157625

STUD

STUD - hardened, 5/8 NC x 2-1/2 inch

2шт.

5

A179056

OIL SEAL

SEAL - oil

1шт.

6

A168851

COVER

COVER - front, transmission housing

1шт.

7

A182721

GASKET

GASKET - front cover to transmission housing (Replaces G46849)

1шт.

8

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

BOLT, Hex, 1/2"-13 x 1 7/8", G5

2шт.

9

195-533

WASHER,1/2", SAE

(7/32 x 1-1/16 x 7/64 inch)

2шт.

12

A29717

STUD

STUD - center, 1-1/2 inch

2шт.

12

G10710

STUD

STUD - bottom, 1-3/4 inch

2шт.

13

195-525

WASHER,3/8", SAE

(13/32 x 13/16 x 1/16")

1шт.

14

129-123

NUT,3/8"-24, G5

NUT, 3/8"-24, G5

4шт.

18

A39105

COVER

COVER - transmission housing, rear

1шт.

19

G10447

GASKET

GASKET - rear cover to transmission housing

1шт.

J I Case installed rear housing cover may not have a gasket. If rear housing cover is removed, install a gasket before assembly.

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

21

A153744

COVER

COVER - tranmission housing, top rear

1шт.

22

1342409C1

GASKET,0.79mm Thk

GASKET - top cover to transmission housing (Replaces A153777)

1шт.

23

26-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

BOLT - hex, 3/8 NC x 1 inch, Grade 8

11шт.

24

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

WASHER - flat, hardened

11шт.

27

REF

INSTRUCTION

DIPSTICK - oil gauge (See Figure 6-47), Includes: Ref. 28

1шт.

28

REF

INSTRUCTION

O-RING - dipstick (See Figure 6-46)

1шт.

29

A154850

TUBE

TUBE - dipstick and oil filler

1шт.
