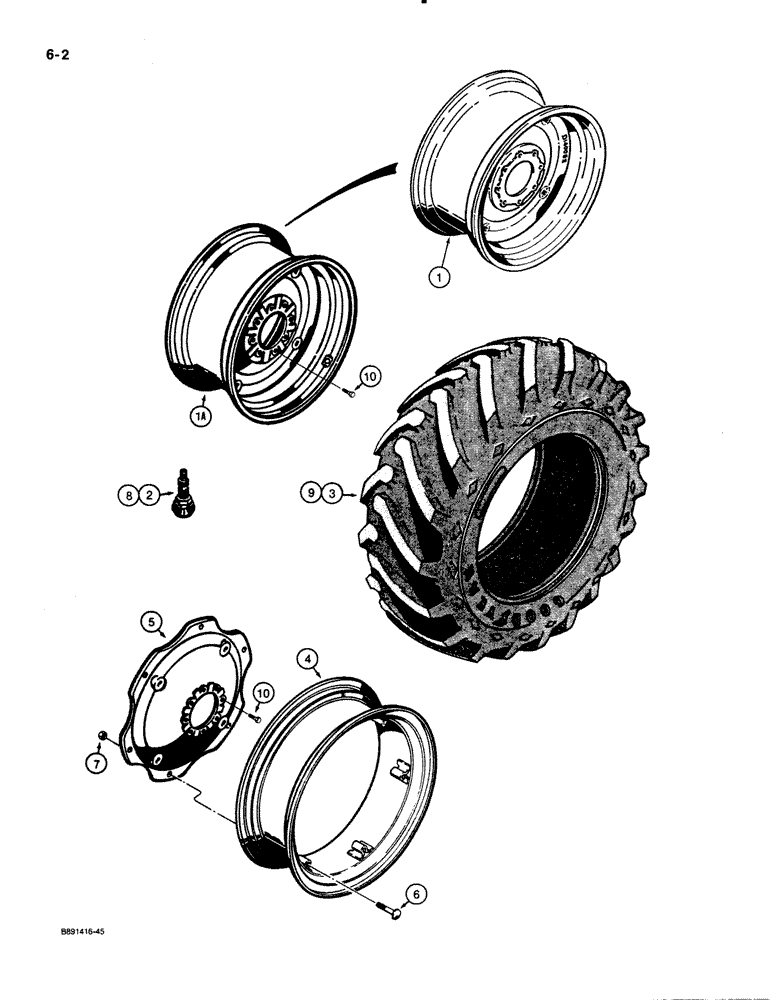

Запчасти Case 480E LL (6-02) - REAR WHEELS AND TIRES (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
D143975
WHEEL
WHEEL - rim, part number stamped on wheel, 13.6 X 24 and 14.9 X 24 fixed disc
2шт.
1a
A139083
WHEEL
WHEEL - rim, no longer used, order D143975 wheel for service, 13.6 X 24 and 14.9 X 24 fixed disc
2шт.
3
REF
INSTRUCTION
TIRE - rear, purchase locally, 13.6 X 24 and 14.9 X 24 fixed disc wheel
2шт.
1
D140062
WHEEL
WHEEL - rim, part number stamped on wheel, 16.9 X 24 & 17.5L X 24 fixed disc
2шт.
1a
A139085
WHEEL
WHEEL - rim, no longer used, order D140062 wheel for service, 16.9 X 24 & 17.5L X 24 fixed disc
2шт.
3
REF
INSTRUCTION
TIRE - rear, purchase locally, 16.9 X 24 & 17.5L X 24 fixed disc wheel
2шт.
3
REF
INSTRUCTION
TIRE - rear, purchase locally, 13.6 X 24 & 14.9 X 24 offset fixed disc wheel
2шт.
9
REF
INSTRUCTION
TIRE - rear, purchase locally, 13.6 X 24 & 14.9 X 24 demountable rim
2шт.
9
REF
INSTRUCTION
TIRE - rear, purchase locally, 16.9 X 24 & 17.5L X 24 demountable rim
2шт.
10
D140705
BOLT
BOLT - wheel retaining, grade 8, replaces A38208 grade 5 bolt
16шт.
