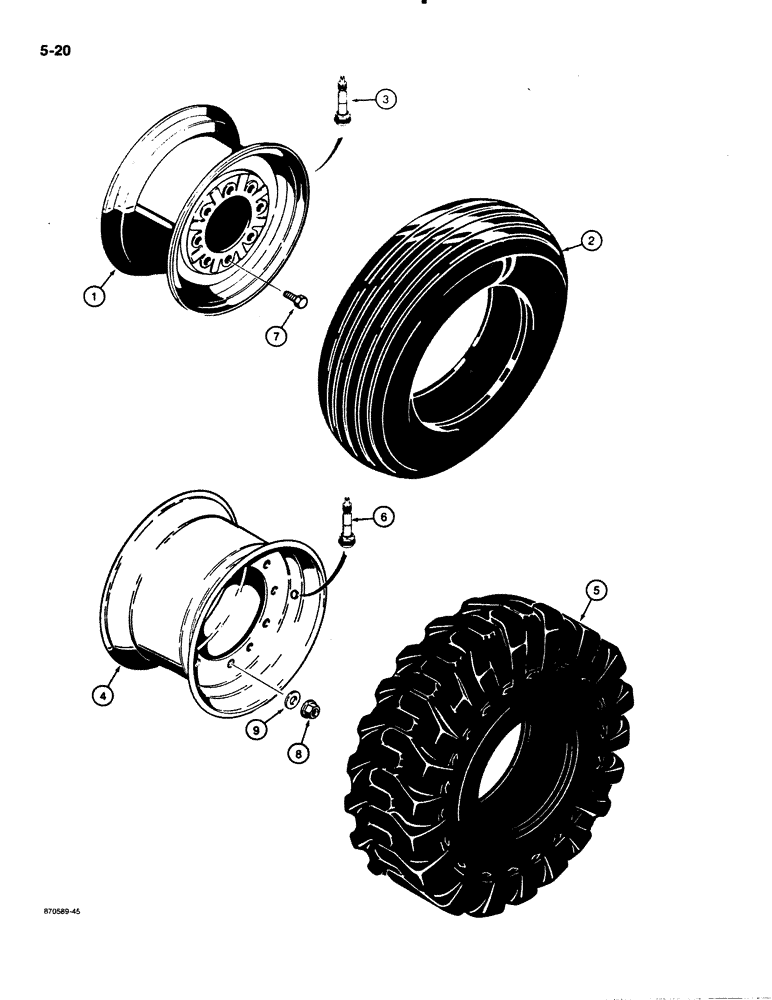

Запчасти Case 480E LL (5-20) - FRONT WHEELS AND TIRES (05) - STEERING

1

A139081

WHEEL

WHEEL - rim, for 6.50 X 16, 7.50 X 16, and 8.00 X 16 tires, 2wd models

2шт.

2

REF

INSTRUCTION

TIRE - front, purchase locally, for 6.50 X 16, 7.50 X 16, and 8.00 X 16, 2wd models

2шт.

3

A38261

VALVE

VALVE - tire, tubeless, for 6.50 X 16, 7.50 X 16, and 8.00 X 16, 2wd models

2шт.

1

A139082

WHEEL

WHEEL - rim, 11L X 16 tires, 2wd models

2шт.

2

REF

INSTRUCTION

TIRE - front, purchase locally, 11L X 16, 2wd models

2шт.

3

A38261

VALVE

VALVE - tire, tubeless, 11L X 16, 2wd models

2шт.

4

D126930

RIM

WHEEL WHEEL - rim, 12 X 16.5 tires, 4wd models

2шт.

5

REF

INSTRUCTION

TIRE - front, purchase locally, 12 X 16.5, 4wd models

2шт.

6

A38261

VALVE

VALVE - tire, tubeless, 12 X 16.5, 4wd models

2шт.

7

D140705

BOLT

BOLT - wheel retaining, grade 8, replaces A38208 grade 5 bolt

16шт.

8

K395089

WHEEL NUT

NUT - wheel retaining

16шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

WASHER - flat, hardened

16шт.
